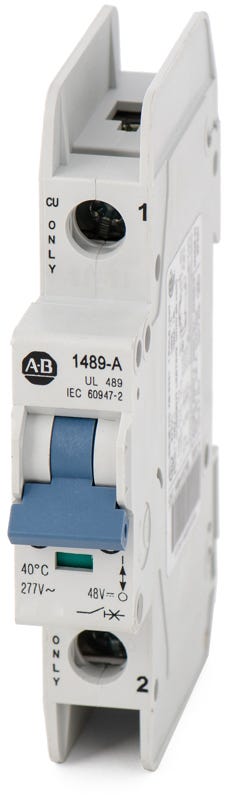

Allen Bradley 1489-M1C200 Miniature Circuit Breaker
- 20A
- 1 Pole
- DIN Rail
Allen Bradley
1489-M1C200
Miniature Circuit Breaker
Brand
Allen Bradley
SKU
1489-M1C200
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Allen Bradley 1489-M1C200 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
20A 1 Pole Miniature Circuit Breaker
20A 1 Pole Miniature Circuit Breaker
Description
Engineered for commercial and industrial applications, this 20A miniature circuit breaker delivers reliable branch circuit protection. It handles moderate inrush currents typical of modern control circuits. The unit mounts securely onto standard DIN rails within industrial control panels. It serves as a drop-in replacement for the legacy 1489-A1C200 model. Rated at 10kAIC at 277VAC, this thermal-magnetic breaker features current-limiting capabilities and reversible line and load connections.Specifications
| Brand | Allen Bradley |
|---|---|
| Series | 1489-M |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | DIN Rail |
| Voltage | 277VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 277VAC, 10kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Panels, Industrial Control Panels |
| Wire Gauge | 18-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 18 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | C |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Shunt Trip, Signal Contact, Lockout Attachment |
|---|---|
| Standards | CSA C22.2 No. 5.1, EN 60947-2, GB 14048.2, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, RoHS, UL, VDE |
| Temp Rating | -25C to 55C |
| Construction Features | HACR Rated, SWD Rated, Current Limiting, Reversible Feed |
Product FAQs
5 answersWhat is the trip curve for the 1489-M1C200 circuit breaker?
This breaker features a C-curve thermal-magnetic trip profile. It is designed for circuits with moderate inrush currents, such as lighting and general-purpose control circuits.
Is the Allen-Bradley 1489-M1C200 rated for branch circuit protection?
Yes, it is UL 489 Listed and CSA certified for branch circuit protection in industrial control panels and distribution systems.
How is the 1489-M1C200 breaker wired and installed?
It mounts directly onto a standard 35mm DIN rail. The breaker features dual terminals that accept either wire (18 to 4 AWG) or UL 508 Listed bus bars, and it supports reversible line and load connections.
What is the UPC for the Allen-Bradley 1489-M1C200?
The standard UPC for this 20A miniature circuit breaker is 885630619484.
Can the 1489-M1C200 be locked out for maintenance?
Yes, this 1489-M series breaker is compatible with Allen-Bradley lockout attachments to ensure safety during panel maintenance and servicing.
