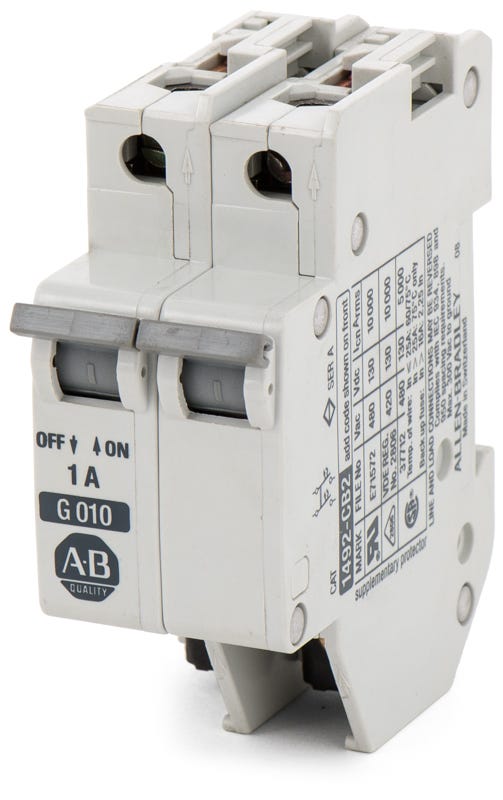

Allen Bradley 1492CB2G010 1492-CB2G010 - 1A 2 Pole Supplementary Protector
Allen Bradley
1492CB2G010
1492-CB2G010 - 1A 2 Pole Supplementary Protector
Brand
Allen Bradley
SKU
1492CB2G010
Quantity
Core Specs
See full specsShop with Confidence
Add an extra year of protection in your cart.
Allen Bradley 1492-CB2G010 - 1A 2 Pole Supplementary Protector
New
Quantity
Similar Items
3A 2 Pole Supplementary Protector
15A 2 Pole Supplementary Protector
Description
Built for commercial and industrial applications, this Allen Bradley supplementary protector provides reliable thermal-magnetic defense for control circuits. The two-pole device snaps onto standard DIN rails, ensuring quick integration into automated control panels. It is officially replaced by the updated 1492-SPM2C010 configuration. Rated at 1A and up to 480Y/277VAC, it utilizes a G-curve trip profile optimized for slightly inductive loads, alongside an energy-limiting, trip-free mechanism.Specifications
| Brand | Allen Bradley |
|---|---|
| Part Number | 1492CB2G010 |
| Series | 1492 |
| Amperage | 1A |
| Poles | 2 |
| Mounting Style | DIN Rail |
| Voltage | 240VAC, 480Y/277VAC, 65VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 480Y/277VAC, 2kA @ 65VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | DIN Rail Panels, Industrial Control Panels |
| Wire Gauge | 16-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 16 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Curve | G |
| Trip Adjustability | Fixed |
| Available Options | Auxiliary Contact, Signal Contact, Shunt Trip, Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 14, CSA C22.2 No. 235, IEC 60934, UL 1077, UL 508 |
| Approval | CE, CSA, UL, VDE |
| Temp Rating | -20C to 60C |
| Construction Features | Current Limiting, Trip-Free Mechanism |
