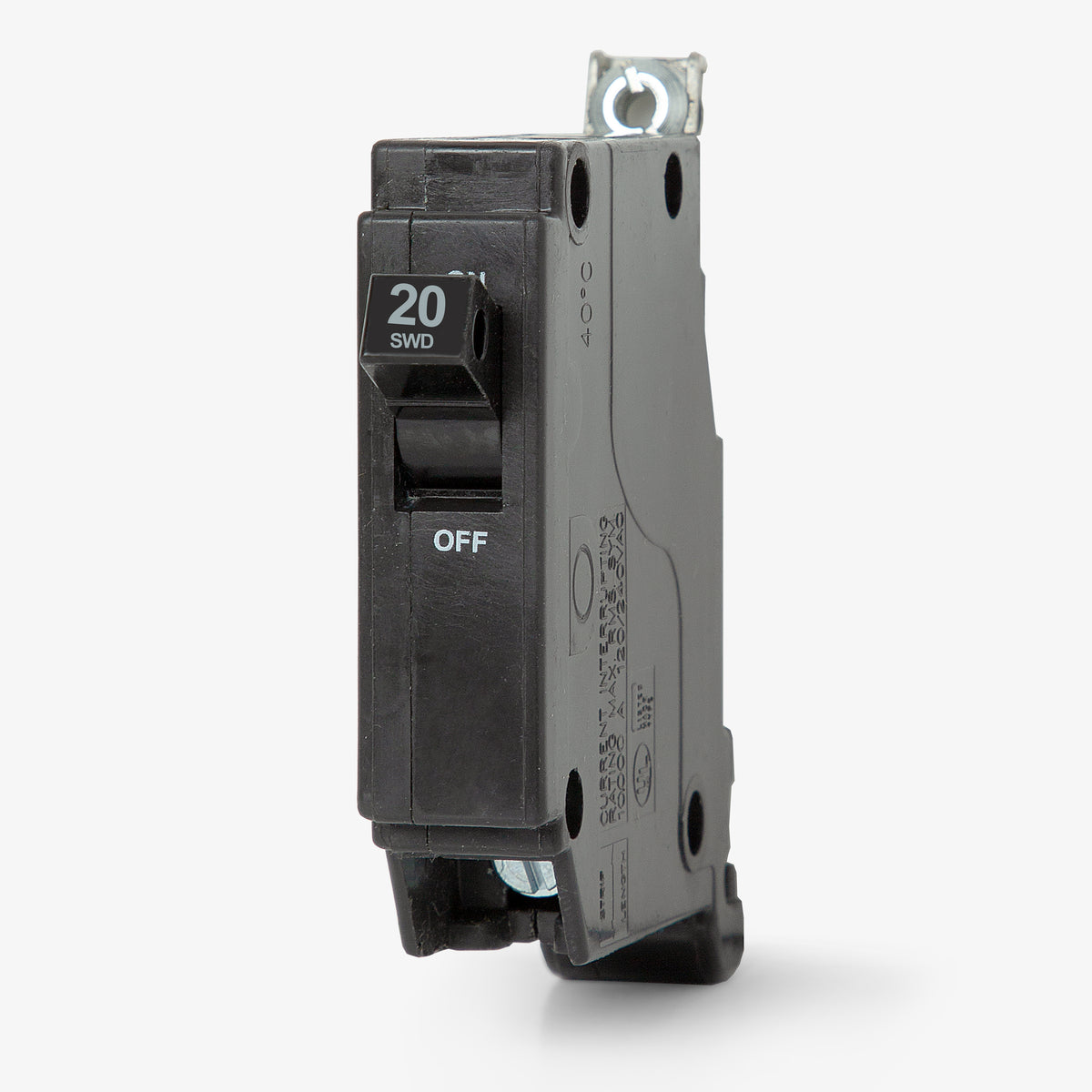

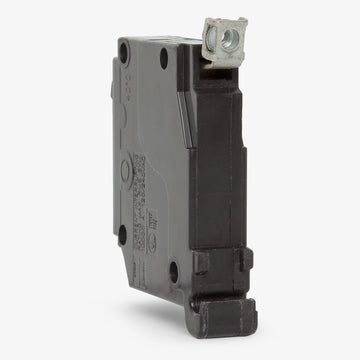

Eaton / Cutler-Hammer CHB120 Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHB120
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHB120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHB120 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Similar Items
15A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
Providing essential overcurrent protection, this 20A single-pole breaker utilizes thermal-magnetic technology to safeguard commercial systems. This model is engineered to bolt into Cutler-Hammer Type PB and PH panelboards. The bolt-on configuration provides a highly secure connection to the panel busbar. With an interrupt capacity of 10kAIC at 120/240VAC, the breaker is HACR and SWD rated. It features box lug terminals that accept 14-8 AWG conductors.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHB120 |
| Series | CHB |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |

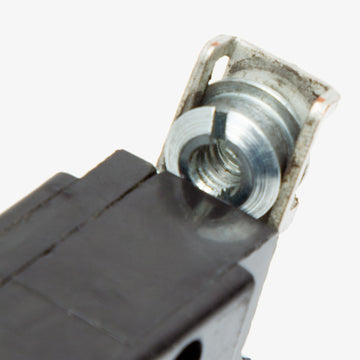

| Terminal Type | Box Lugs |
|---|---|
| For Use With | Cutler-Hammer Type PB Panelboards, Type PH Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Handle Lock, Handle Tie, Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, SWD Rated |
Product FAQs
6 answersCan I install the CHB120 in a standard Eaton CH residential load center?
No. The CHB120 is a bolt-on circuit breaker designed for commercial Cutler-Hammer Type PB and Type PH panelboards. Standard CH load centers require plug-on breakers.
Are Eaton CHB and BAB circuit breakers interchangeable?
No. Although both are commercial bolt-on breakers made by Eaton, CHB and BAB series breakers have different physical dimensions and panel mounting requirements. They cannot be used interchangeably.
Is the CHB120 suitable for switching fluorescent lighting loads?
Yes. The CHB120 is SWD (Switching Duty) rated, meaning it is approved for switching 120V fluorescent lighting circuits on and off on a regular basis.
Does the CHB120 carry an HACR rating for HVAC equipment?
Yes. This breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this specific overcurrent protection rating.
Does the CHB120 provide ground fault or arc fault protection?
No. This is a standard thermal-magnetic circuit breaker that provides long-time and instantaneous trip functions for overload and short-circuit protection. It does not offer GFCI or AFCI capabilities.
Can I use the CHB120 for a 240V appliance?
No. The CHB120 is a 1-pole breaker designed for 120V circuits. For a 240V appliance, you will need a 2-pole breaker from the CHB series, such as the CHB220.
