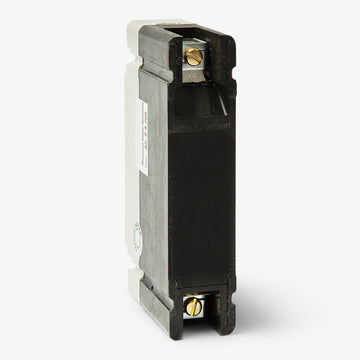

Eaton / Cutler-Hammer HFD1020L Molded Case Circuit Breaker
- 20A
- 1 Pole
- Unit Mount
Eaton / Cutler-Hammer
HFD1020L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD1020L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD1020L - 20A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
20A 3 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
Description
Part of the Series C family, this 20A F-Frame breaker provides reliable thermal-magnetic protection for commercial and industrial applications. It installs into Eaton switchboards and standalone enclosures using a standard unit-mount configuration with included line and load lugs. Rated for 65kAIC at 277VAC, it features SWD and HID ratings for lighting circuits, plus reverse feed capability. For modern upgrades, the Power Defense PDG11M0020TFFJ serves as a substitute.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD1020L |
| Series | HFD |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 10kA @ 125VDC, 35kA @ 347VAC |
| Frame Type | F |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, F-Frame Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Lock |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | ABS, CE, CSA, HACR, HID, SWD, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, SWD Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip |
Product FAQs
5 answersWhat does the 'L' suffix in the HFD1020L catalog number signify?
The 'L' indicates that the breaker is supplied with factory-installed line and load terminals (lugs). These standard lugs accept 14 to 1/0 AWG copper or aluminum conductors.
Can the HFD1020L replace standard FD1020L or ED1020L breakers?
Yes. The HFD1020L shares the exact physical F-Frame dimensions as the FD1020L and ED1020L but offers a higher interrupting capacity (100kAIC at 240VAC). It can safely replace these lower-rated breakers in existing Series C panelboards and enclosures.
Which panelboards and enclosures are compatible with this breaker?
This unit mount breaker is designed for use in Eaton Series C panelboards, switchboards, and standalone F-Frame enclosures. It is an industrial molded case circuit breaker and is not compatible with standard residential loadcenters.
Is the HFD1020L rated for direct current (DC) systems?
Yes, this breaker is rated for use in DC circuits up to 125VDC with a maximum interrupting capacity of 10kAIC.
Does this breaker include ground fault or arc fault protection?
No. The HFD1020L features standard thermal magnetic trip functions (Long-Time and Instantaneous) for overload and short circuit protection. It does not provide GFCI or AFCI protection.
