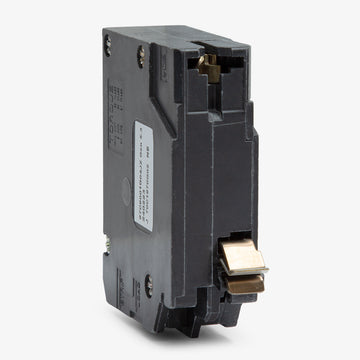

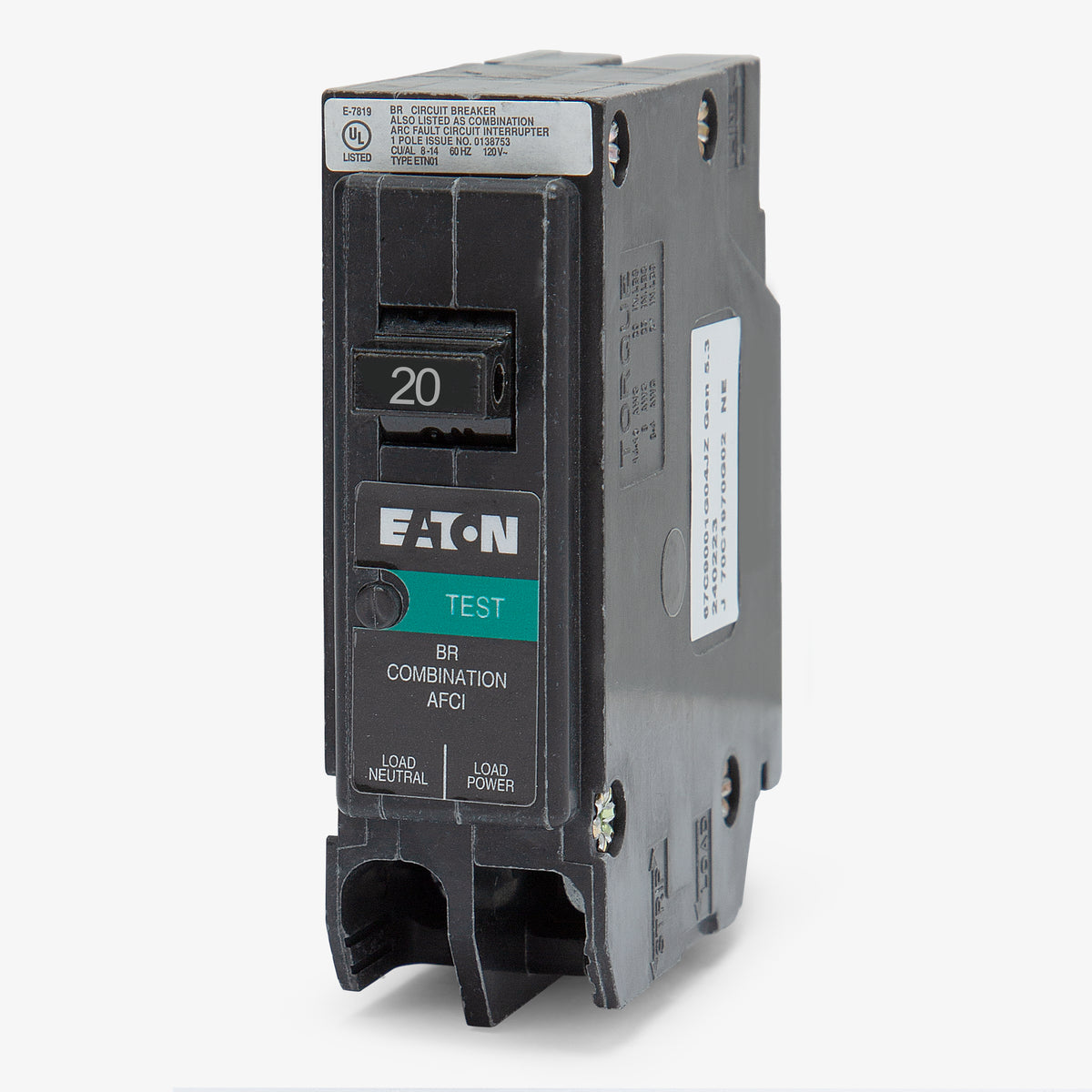

Eaton / Cutler-Hammer BRP120AF AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BRP120AF
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRP120AF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRP120AF - 20A AFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Meeting strict NEC requirements, the 20-amp BRP120AF provides comprehensive combination arc-fault mitigation. This single-pole breaker is essential for safeguarding bedrooms and living areas against hidden electrical hazards. Designed specifically for modern panelboards, it features a plug-on neutral clip that connects to the bus bar. This configuration is compatible exclusively with Eaton BR plug-on neutral load centers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRP |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton BR Plug-On Neutral Load Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Standards | UL 1699, UL 489 |
| Approval | UL |
| Temp Rating | 60C to 75C |
Product FAQs
7 answersCan I install the Eaton BRP120AF in a standard Eaton BR loadcenter that does not have a plug-on neutral bar?
No. The BRP120AF is a Plug-on Neutral (PON) breaker that lacks a pigtail wire. It must be installed in an Eaton BR Plug-on Neutral loadcenter. If your panel requires a pigtail connection to the neutral bar, you will need a pigtail-style breaker instead.
What is the pigtail equivalent to the Eaton BRP120AF circuit breaker?
If your loadcenter does not support plug-on neutral breakers, the Eaton BRN120AF (or legacy BR120AF) is the correct 20-amp, single-pole combination AFCI breaker equipped with a pigtail neutral wire.
Does the BRP120AF require a pigtail wire connection to the panel's neutral bar?

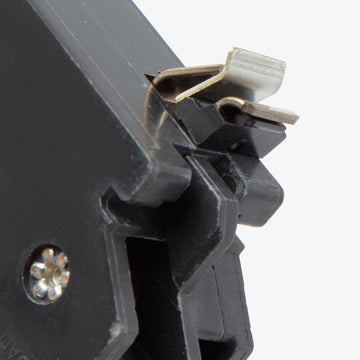

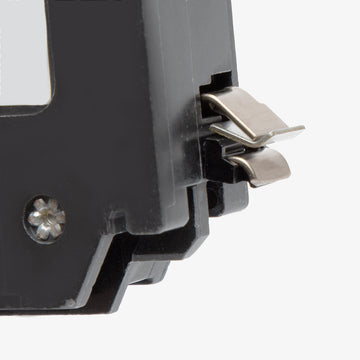

No. As a Plug-on Neutral breaker, it connects directly to the panel's neutral bus bar via a built-in clip on the breaker. This eliminates the need to route and connect a separate coiled pigtail wire.
Does the BRP120AF provide both arc-fault (AFCI) and ground-fault (GFCI) protection?
No. The BRP120AF is a combination AFCI breaker designed strictly to mitigate arc faults. It does not provide GFCI protection. If your circuit requires dual-function protection (both AFCI and GFCI), you need a dual-function breaker like the Eaton BRP120DF.
Are the BRP120AF and BRN120AF rated for the same type of branch circuit protection?
Yes, both breakers provide 20-amp, single-pole combination arc-fault (AFCI) protection with a 10 kAIC rating. The only difference is the method of neutral connection to the panel (Plug-on Neutral vs. pigtail wire).
Can I use the BRP120AF in an Eaton CH series loadcenter?
No. The BRP120AF is a Type BR breaker and will only physically mount to the bus bar in an Eaton Type BR Plug-on Neutral loadcenter. Eaton CH series loadcenters require Type CH breakers, which utilize a narrower mounting footprint.
How do I read the diagnostic trip codes if the BRP120AF breaker trips?
When the breaker is turned back on after a trip, an integral red LED will flash a repeating pattern from 1 to 6 blinks to indicate the cause of the trip (such as a series arc, parallel arc, short delay, overvoltage, or self-test failure). The pattern will repeat 30 times to aid in troubleshooting before returning to normal operation.
