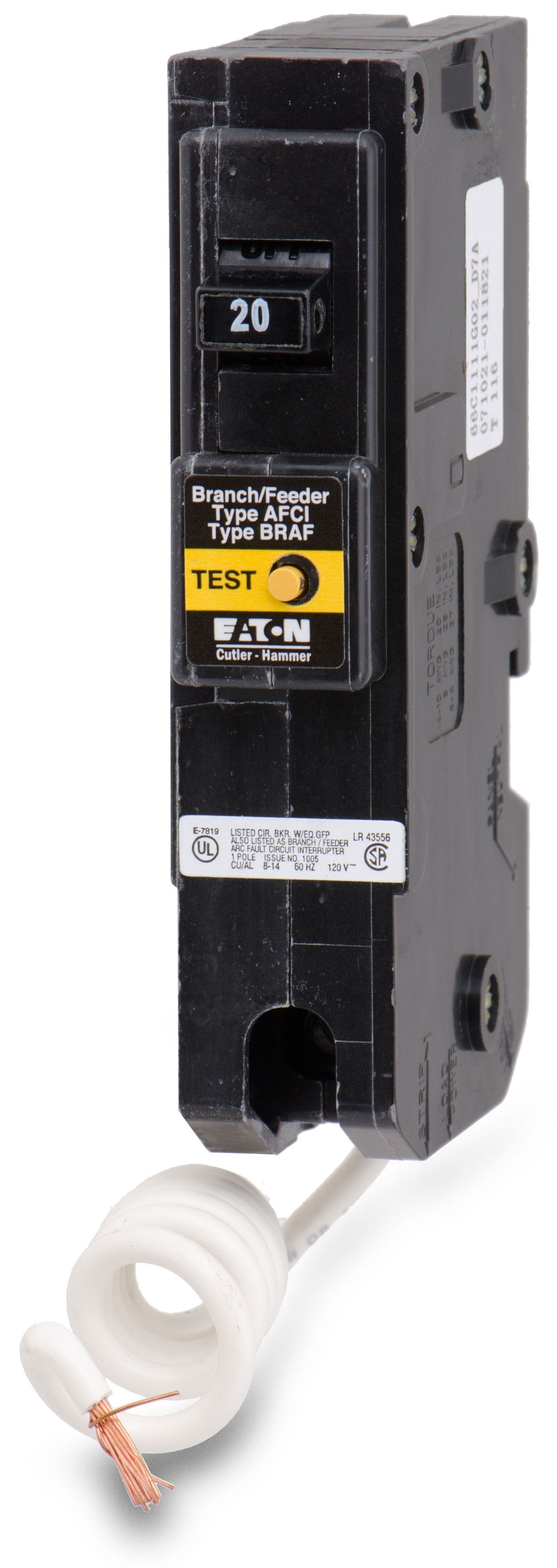

Eaton / Cutler-Hammer BR120AF AFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BR120AF
AFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BR120AF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BR120AF - 20A AFCI Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer BR120AF - 20A AFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR120AF |
| Series | BR |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 1699 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | SWD Rated, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer BR120AF - 20A AFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR120AF-R |
| Series | BR |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 1699 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | SWD Rated, HACR Rated |
Similar Items
20A AFCI Miniature Circuit Breaker
15A AFCI Miniature Circuit Breaker
20A AFCI Miniature Circuit Breaker
Description
Engineered for residential safety, the BR120AF is a 1-pole, 20A branch/feeder arc-fault circuit breaker from Eaton. It provides essential protection against parallel arcing faults in electrical wiring. Designed for compatibility with Type BR load centers, this plug-on unit features box lug terminals accepting 14-4 AWG wire. It is a legacy model that has been replaced by the BRCAF120 combination AFCI. Equipped with a pigtail neutral and rated for 10kAIC, it carries SWD and HACR ratings.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BR120AF |
| Series | BR |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | AFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | UL 489, UL 1699 |
| Approval | UL, CSA |
| Temp Rating | 40C |
| Construction Features | SWD Rated, HACR Rated |
Product FAQs
6 answersWhat panels are compatible with the BR120AF?
The BR120AF is designed for use in Type BR load centers. It is also UL approved as a direct replacement for older Westinghouse, Challenger, Bryant, and Cutler-Hammer panels that accept Type BR breakers.
How do I connect the neutral wire on the BR120AF?
This breaker features a pigtail neutral connection. The coiled white pigtail wire must be connected directly to the neutral bus bar in the panel, while the circuit's neutral wire connects to the breaker's neutral lug.
Can I install this pigtail breaker in a plug-on neutral panel?
Yes, you can install a pigtail AFCI breaker in a plug-on neutral panel. However, you will not utilize the plug-on neutral feature and must manually connect the pigtail wire to the neutral bus bar.
What type of protection does the BR120AF provide?
The BR120AF is a branch/feeder Arc Fault Circuit Interrupter (AFCI). It is designed to detect unintended electrical arcs in the circuit to help prevent electrical fires, providing protection that standard thermal-magnetic breakers may not catch.
Does the BR120AF require a dedicated neutral?
Yes, AFCI breakers generally require a dedicated neutral for the circuit they protect. Sharing a neutral with another circuit can cause nuisance tripping and prevent the breaker from functioning correctly.
Is the BR120AF a branch/feeder or combination AFCI?
The BR120AF is an older branch/feeder AFCI model. In many modern applications, it is replaced by combination AFCI (CAFCI) or dual-function (AFCI/GFCI) breakers to meet updated electrical codes. Verify your local code requirements before installation.
