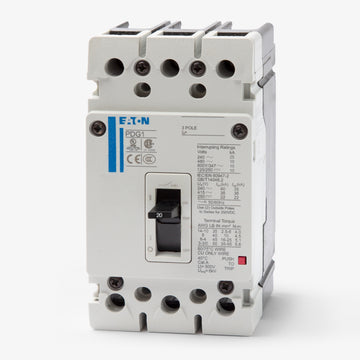

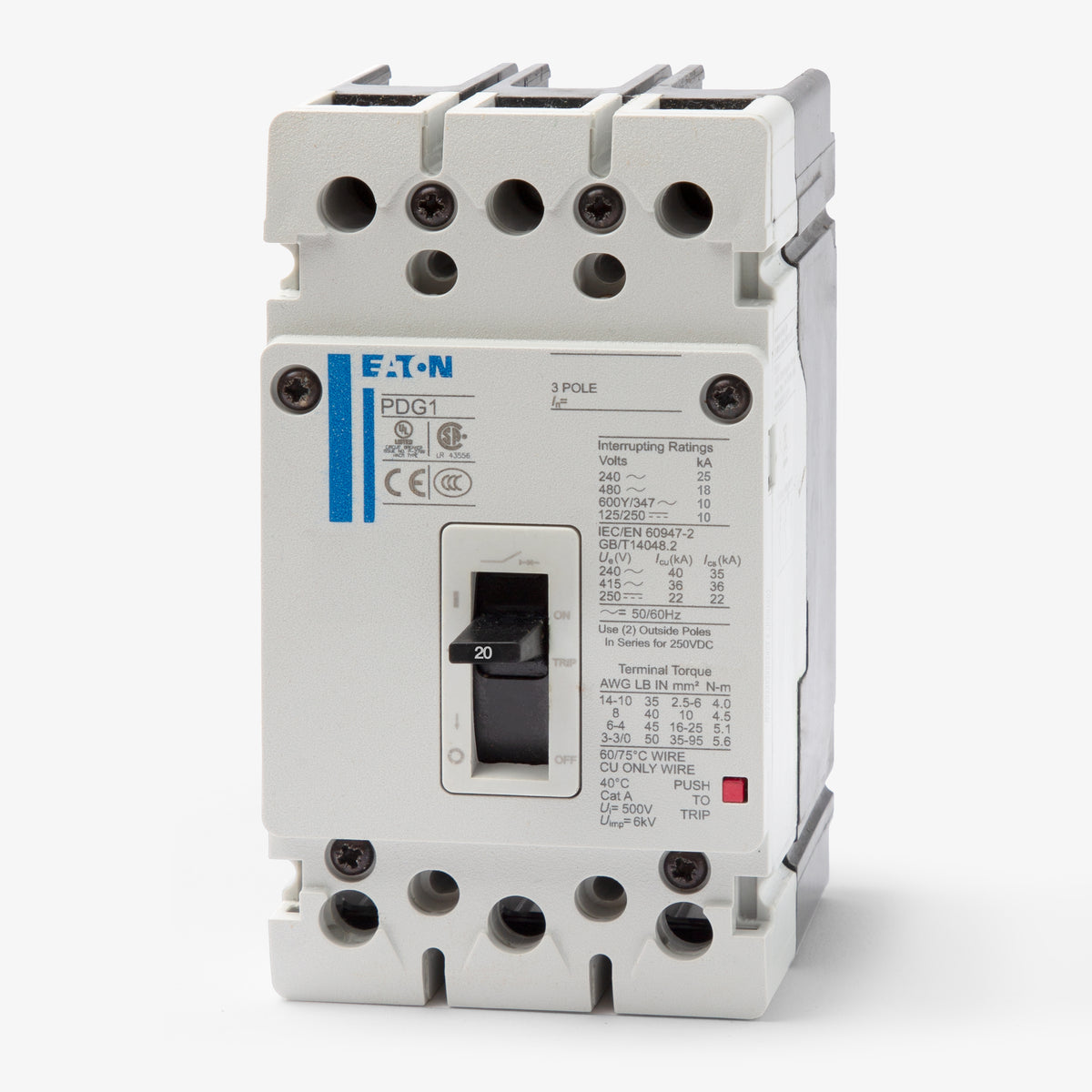

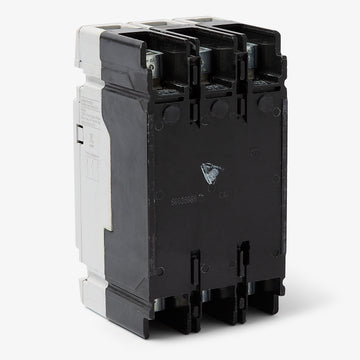

Eaton / Cutler-Hammer PDG13C0020TFFJ Molded Case Circuit Breaker
- 20A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13C0020TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13C0020TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13C0020TFFJ - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13F0020TFFJ
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13C0025TFFJ
25A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13F0025TFFJ
25A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial facilities, the Eaton PDG13C0020TFFJ provides robust circuit protection within the Power Defense family. This 3-pole, 20A Frame 1 MCCB ensures seamless integration into modern electrical systems. It installs into Eaton Power Defense panelboards and switchboards using standard box lugs. The panel-mount design facilitates straightforward deployment. Rated 18 kAIC at 480VAC, it utilizes a fixed thermal-magnetic (LI) trip unit for dependable defense.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|

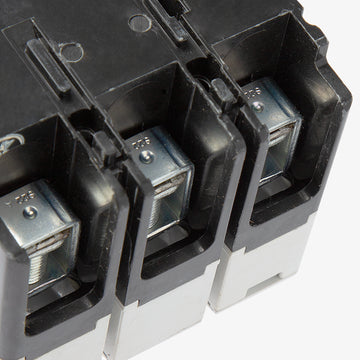

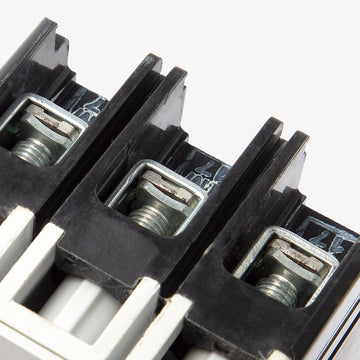

| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG1X3T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant, Globally Rated |
Product FAQs
7 answersWhat enclosures and panels are compatible with the PDG13C0020TFFJ?
This Frame 1 molded case circuit breaker is engineered for Eaton Power Defense panelboards, switchboards, and standalone enclosures. It is also commonly integrated into motor control centers.
What are the full short-circuit interrupting ratings across different voltages?
The breaker is rated for 25kAIC at 240VAC, 18kAIC at 480VAC, and 10kAIC at 600VAC or 347VAC. It also carries a 10kAIC rating for 250VDC systems.
What are the acceptable wire sizes for the factory-installed lugs?
The standard box lugs on the line and load sides accommodate wire gauges from 14 AWG up to 3/0 AWG. The terminals are rated for both aluminum and copper (Al/Cu) conductors.
Does the trip unit on the PDG13C0020TFFJ allow for field adjustments?
No, this model features a fixed thermal-magnetic trip unit. Both the long-time (thermal) and instantaneous (magnetic) trip points are fixed and cannot be modified in the field.
What type of circuit protection does the LI trip function code indicate?
The LI code specifies that the breaker provides Long-Time and Instantaneous protection. This thermal-magnetic mechanism safely interrupts the circuit during sustained overloads and sudden short-circuit faults.
Is the Eaton Power Defense series globally rated?
Yes, the Power Defense platform is designed for global acceptance. It meets multiple international industry standards, including UL, CSA, IEC, and CCC certifications.
Can the PDG13C0020TFFJ be mounted on a DIN rail?
Yes, in addition to standard panel mounting, this Frame 1 breaker is compatible with DIN-rail mounting configurations, which is frequently required in motor control center installations.
