Eaton / Cutler-Hammer PDG13M0020TFFJ Molded Case Circuit Breaker
- 20A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13M0020TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13M0020TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

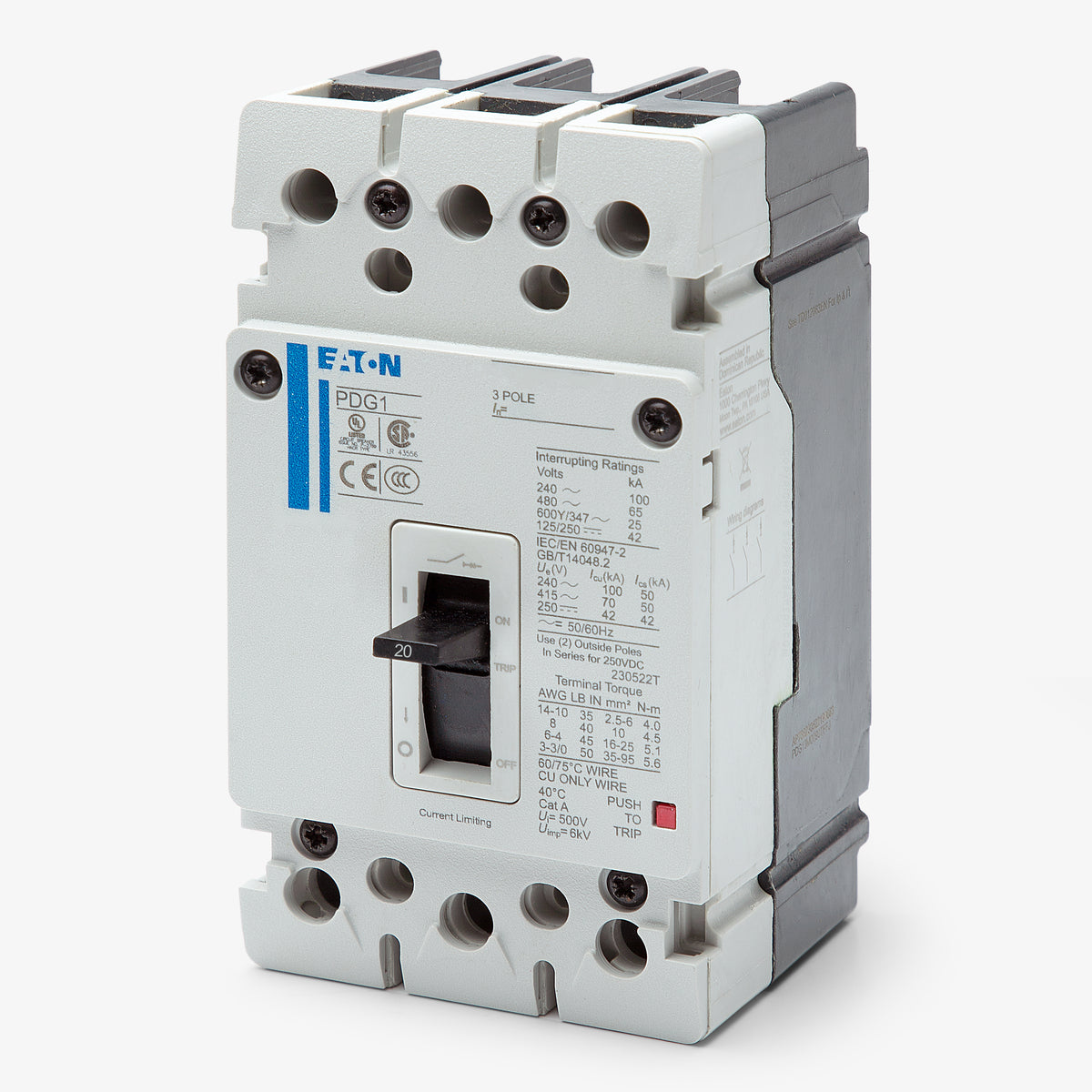

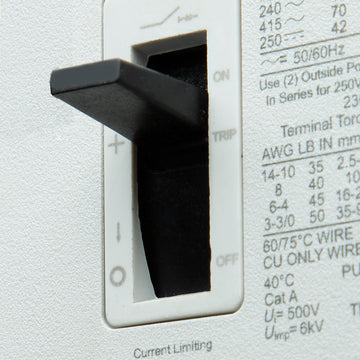

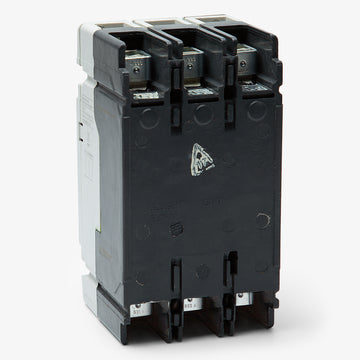

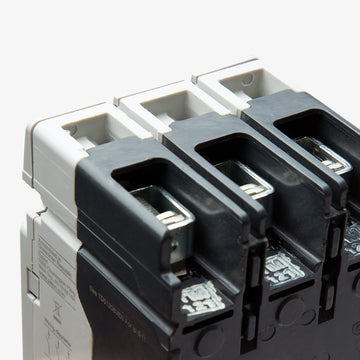

Eaton / Cutler-Hammer PDG13M0020TFFJ - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0045TFFJ
45A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial distribution, the Eaton PDG13M0020TFFJ is a 3-pole, 20A molded case circuit breaker. This Power Defense Frame 1 unit delivers dependable fixed thermal and magnetic (LI) trip functions. It installs into Eaton Pow-R-Line panelboards and motor control centers, and serves as the designated replacement for the discontinued Series G EGH3020FFG. With a 65kAIC rating at 480VAC, this HACR-rated breaker offers current-limiting performance and includes standard box lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Line and Load Lugs Included (PDG1X3T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant, Globally Rated |
Product FAQs
6 answersWhat legacy Eaton circuit breaker does the PDG13M0020TFFJ replace?
The PDG13M0020TFFJ is a Power Defense Frame 1 breaker that serves as a direct drop-in replacement for the legacy Series G EGH3020FFG.
What types of electrical distribution equipment is the PDG13M0020TFFJ compatible with?
This Frame 1 molded case circuit breaker is designed for installation in Eaton Pow-R-Line panelboards, switchboards, and motor control centers.
What wire sizes are accepted by the standard lugs on this breaker?
The factory-installed box lugs on the PDG13M0020TFFJ accept wire gauges ranging from 14 AWG to 3/0 AWG.
Can the PDG13M0020TFFJ be used in direct current (DC) systems?
Yes, this thermal magnetic breaker is rated for use in DC applications up to 250VDC, where it provides a 42kAIC interrupting capacity.
Are the trip settings on the PDG13M0020TFFJ adjustable?
No, this breaker features a fixed thermal and fixed magnetic (LI) trip unit. The long-time and instantaneous trip functions are factory set and cannot be adjusted in the field.
What does the 65kAIC rating at 480VAC mean for this breaker?
The 65kAIC rating indicates the maximum fault current the breaker can safely interrupt at 480VAC without sustaining damage, making it suitable for industrial facilities with high available fault currents.
