Eaton / Cutler-Hammer CHH2200H4X Molded Case Circuit Breaker
- 200A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CHH2200H4X
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHH2200H4X
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

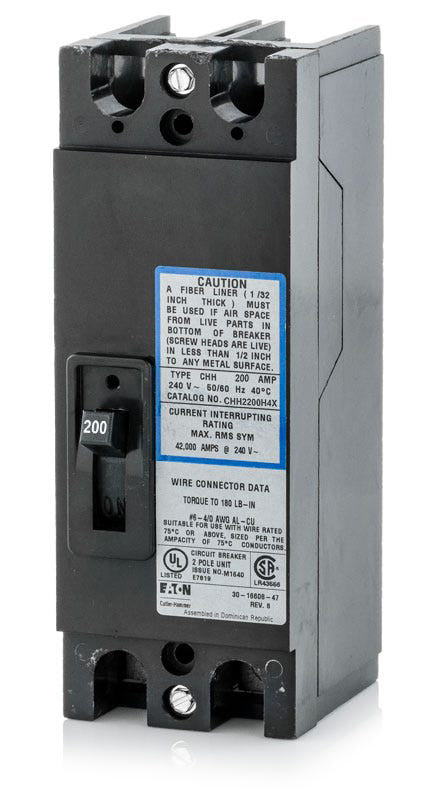

Eaton / Cutler-Hammer CHH2200H4X - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHH2150H4X
150A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCHH2125H4X
125A 2 Pole Molded Case Circuit Breaker
Description
Part of the CH family, the Eaton CHH2200H4X delivers 200A of thermal-magnetic protection. It is designed specifically as a tenant main breaker for commercial and residential service applications. This bolt-on MCCB installs into Eaton modular metering stacks, such as the 1MM, 35MM, 35SS, 37MM, and 37SS series. It is eventually replaced by the CVS2200XMM model. With a high interrupting capacity of 42 kAIC at 240V, it handles demanding fault currents. The unit is HACR rated for HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHH2200H4X |
| Series | CHH |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 42kA @ 240VAC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Modular Metering Stacks (1MM, 35MM, 35SS, 37MM, 37SS) |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, High Interrupting Capacity, Tenant Main |
Product FAQs
5 answersWhich Eaton modular metering stacks are compatible with the CHH2200H4X circuit breaker?
This bolt-on tenant main breaker is designed for use with Eaton 1MP, 1MM, 3MM, 35MM, 35SS, 37MM, and 37SS modular metering stacks.
Is there a direct replacement for the CHH2200H4X tenant main breaker?
Yes, the CHH2200H4X is a legacy breaker that is directly replaced by the Eaton CVS2200XMM model, which serves as a drop-in replacement for modular metering upgrades.
What does the H4X suffix indicate on the CHH2200H4X catalog number?
The H4X suffix indicates that the breaker includes factory-installed load side lugs. As a tenant main breaker, the line side bolts directly to the meter stack bus, while the load side lugs accept 2/0 AWG to 300 kcmil copper or aluminum wire for feed-thru connections.
Is the Eaton CHH2200H4X rated for use with HVAC equipment?
Yes, this molded case circuit breaker is HACR rated, making it suitable for group motor applications like heating, air conditioning, and refrigeration equipment.
How does the CHH2200H4X connect to the electrical panel?
This is a bolt-on molded case circuit breaker. It bolts directly to the busbar of compatible Eaton modular metering stacks, ensuring a secure connection for high-amperage tenant main applications.
