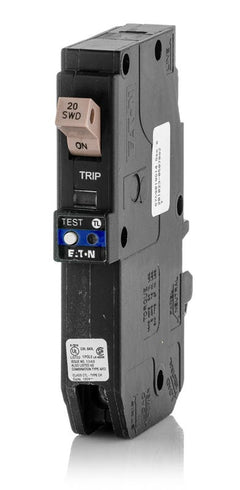

Eaton / Cutler-HammerCHFP120DF
Eaton / Cutler-Hammer CHFPAFGF115 Dual Function Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CHFPAFGF115
Dual Function Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHFPAFGF115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHFPAFGF115 - 15A Dual Function Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCHFAFGF115
15A Dual Function Miniature Circuit Breaker
Eaton / Cutler-HammerCHFN115DF
15A Dual Function Miniature Circuit Breaker
Description
Built for residential applications, the Eaton CHFPAFGF115 provides dual function protection in a single-pole, short body design. It mounts into Eaton CH plug-on neutral load centers, streamlining installation by eliminating the pigtail connection. Rated for 10 kAIC at 120VAC, this thermal-magnetic breaker features a built-in trip flag and self-test capabilities. It serves as a replacement for the CHFP115DF, meeting NEC requirements for combination AFCI and GFCI protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHFPAFGF115 |
| Series | CH |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Plug-On Neutral Load Centers |
| Wire Gauge | 14-6 AWG (Cu/Al) |
| Max Wire | 6 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Trip Flag |
| Standards | UL 1699, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
7 answersWhich load centers accept the CHFPAFGF115 breaker?
This breaker is designed specifically for Eaton CH Plug-On Neutral (PON) load centers. It connects directly to the integrated neutral bar and is not compatible with standard pigtail-style CH panels or BR series load centers.
Does the CHFPAFGF115 require a neutral pigtail connection?
No. As a Plug-On Neutral (PON) breaker, it clips directly onto the neutral bar in a compatible Eaton CH PON panel. This eliminates the need for a pigtail wire, saving installation time and reducing gutter clutter.
What is the recommended installation sequence for Eaton CH Plug-On Neutral breakers?
When installing the CHFPAFGF115, firmly press the load side of the breaker onto the neutral bar first. Once the load side is securely seated, push down on the line side to engage the bus stab.
What specific faults does this dual function breaker protect against?
The CHFPAFGF115 combines Arc Fault Circuit Interrupter (AFCI) and Ground Fault Circuit Interrupter (GFCI) technology. It detects both series and parallel arcing faults as well as ground faults, satisfying NEC requirements for dual protection on a single branch circuit.
What trip functions are integrated into the CHFPAFGF115?
This thermal-magnetic breaker utilizes an LIG trip unit. It provides Long-Time protection for standard overloads, Instantaneous protection for short circuits, and Ground Fault protection for leakage currents.
Can I use aluminum wiring with the CHFPAFGF115 box lugs?
Yes, the box lug terminals are rated for both copper (Cu) and aluminum (Al) conductors, accepting wire gauges from 14 AWG up to 6 AWG.
Can I install wires in the neutral bar terminals directly beneath this breaker?
No. When installing the CHFPAFGF115 in a CH Plug-On Neutral load center, the neutral bar screws directly beneath the breaker must not be backed out, and no wires should be installed in those specific terminals to ensure the breaker seats properly.
