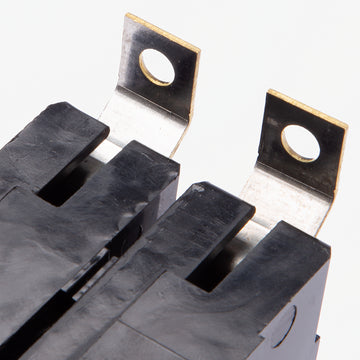

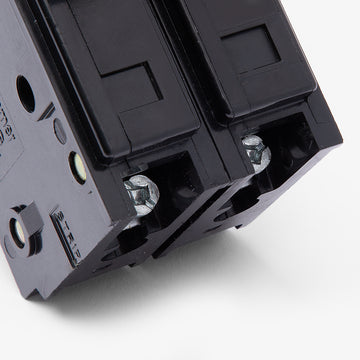

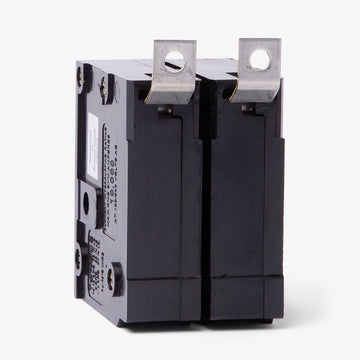

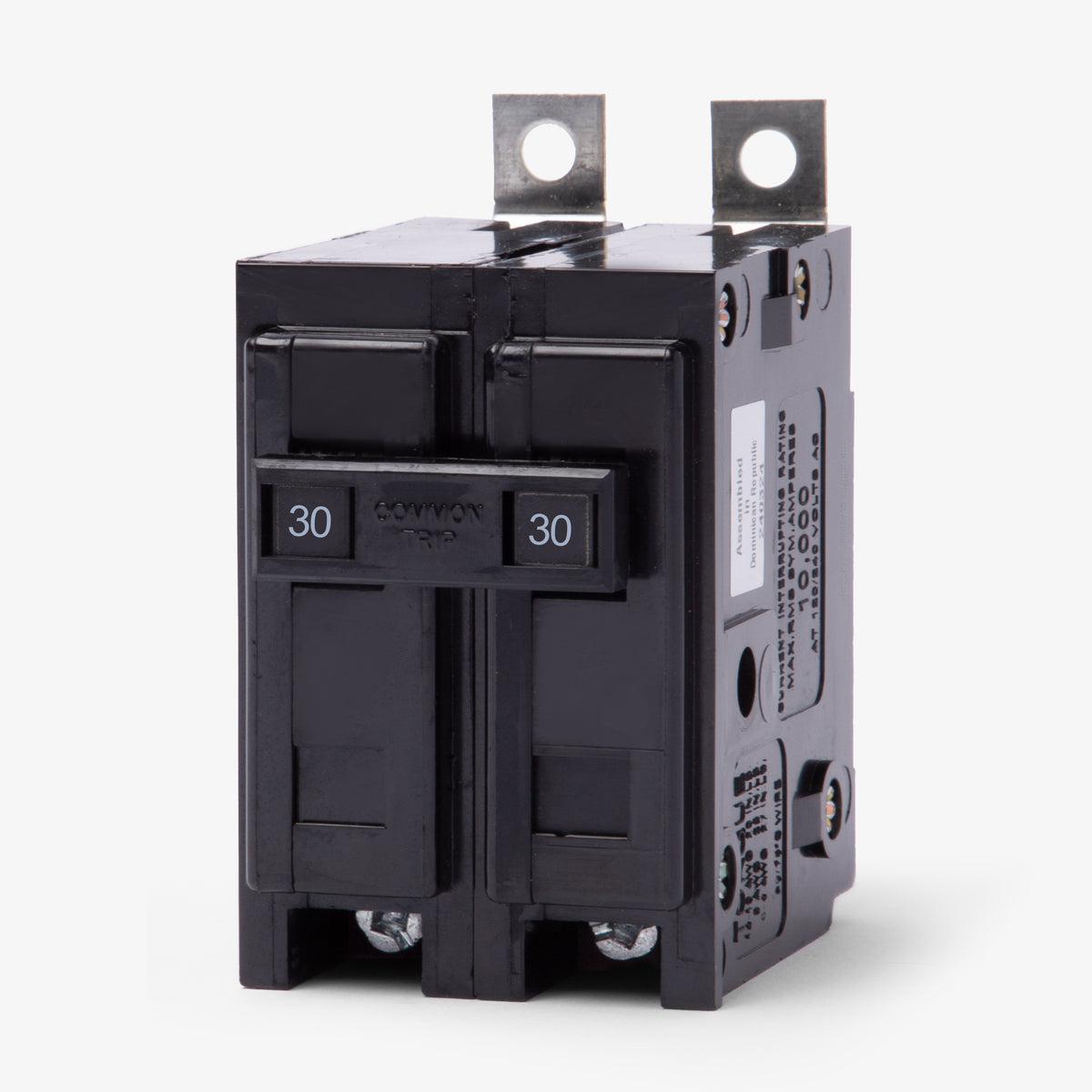

Eaton / Cutler-Hammer BAB2030 Miniature Circuit Breaker
- 30A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
BAB2030
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BAB2030
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BAB2030 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer BAB2030 - 30A 2 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2030 |
| Series | BAB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Sold out
Quantity
Eaton / Cutler-Hammer BAB2030 - 30A 2 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2030-R |
| Series | BAB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Similar Items
25A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
20A 2 Pole Miniature Circuit Breaker
Description
Built for commercial applications, the Eaton BAB2030 is a 2-pole, 30A miniature circuit breaker from the Quicklag family. It provides dependable thermal-magnetic protection for branch circuits. This bolt-on breaker mounts into Eaton Pow-R-Line, Cutler-Hammer, Bryant, and legacy Westinghouse panelboards. It serves as a direct replacement for older QNBL2030 breakers. Rated at 10 kAIC at 120/240VAC, the unit is HACR rated for HVAC equipment and accepts 14-4 AWG copper or aluminum wiring.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BAB2030-R |
| Series | BAB |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards, Bryant Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Extended Tang Line Terminal |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
Product FAQs
6 answersWhat panelboards are compatible with the Eaton BAB2030 circuit breaker?
This bolt-on miniature breaker is designed for use in Eaton Pow-R-Line panelboards. It is also a direct fit for legacy commercial panelboards manufactured by Cutler-Hammer, Westinghouse, and Bryant that accept BAB frame breakers.
Is the BAB2030 breaker HACR rated for use with HVAC equipment?
Yes, the BAB2030 is HACR rated. It is approved for use with heating, air conditioning, and refrigeration equipment that requires a 2-pole, 30-amp overcurrent protection device.
Can I install the BAB2030 breaker in a standard residential load center?
No, the BAB2030 features a bolt-on connection designed specifically for commercial and industrial panelboards. It will not fit in standard plug-on residential load centers such as Eaton BR or CH series panels.
Is the Eaton BAB2030 a direct replacement for older Westinghouse versions?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. The current BAB2030 is manufactured to the same specifications and serves as a direct, UL-listed replacement for older Westinghouse and Bryant BAB series breakers.
Does the BAB2030 carry a direct current (DC) voltage rating?
Yes, in addition to its standard alternating current ratings, this breaker is rated for use in DC systems. It supports up to 80VDC with a 5 kAIC interrupting rating.
What wire sizes are supported by the terminals on the BAB2030?
The integrated box lugs on this breaker accept copper or aluminum wiring ranging from 14 AWG to 4 AWG. When wiring your circuit, ensure the conductor size meets National Electrical Code requirements for a 30-amp load.
