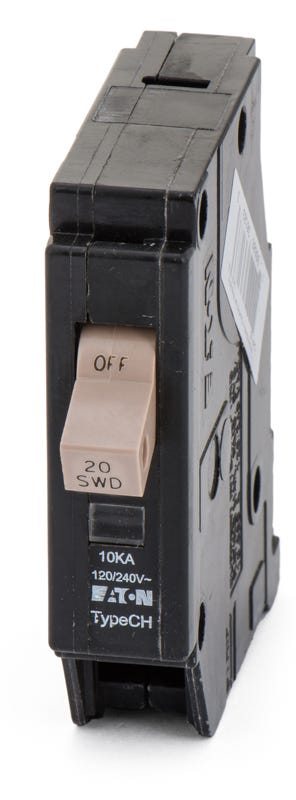

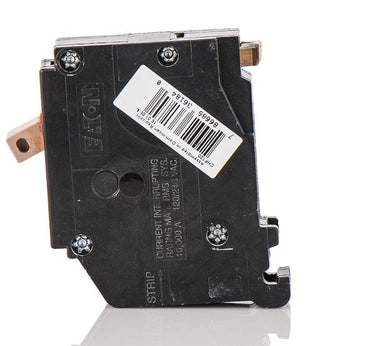

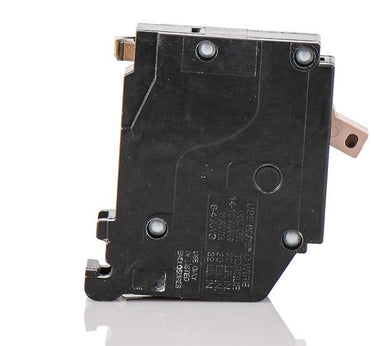

Eaton / Cutler-Hammer CH120 Miniature Circuit Breaker
- 20A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CH120
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH120 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer CH120 - 20A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH120 |
| Series | CH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|
| Standards | UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | SWD Rated, HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer CH120 - 20A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|
| Standards | UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | SWD Rated, HACR Rated |
Similar Items

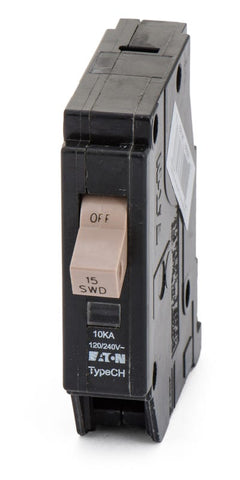

15A 1 Pole Miniature Circuit Breaker
30A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
Description
Tailored for residential applications, the Eaton CH120 delivers dependable 20-amp thermal-magnetic protection. This single-pole breaker is ideal for standard branch circuits. It installs quickly into Eaton Type CH load centers via a standard plug-on connection. The 3/4-inch width maximizes panel space, serving as the predecessor to the CHF120. Handling 10kAIC fault currents, this breaker is fully SWD and HACR rated. These approvals ensure safe operation for lighting and HVAC equipment.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH120 |
| Series | CH |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CH |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton CH Load Centers |
| Wire Gauge | (1) 14-8 AWG (Cu/Al), (2) 14-10 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Handle Lock, Padlock Attachment |
|---|---|
| Standards | UL 489, HACR, SWD |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | SWD Rated, HACR Rated |
Product FAQs
8 answersCan I install this CH120 breaker in an Eaton BR series load center?
No. Eaton CH series breakers have a 3/4-inch width per pole and mount exclusively in Eaton or Cutler-Hammer Type CH load centers. Eaton BR panels require 1-inch wide BR series breakers.
Is the Eaton CH120 the same as the Cutler-Hammer CH120?
Yes. Eaton acquired Cutler-Hammer, and the CH120 catalog number remains identical. An Eaton CH120 is a direct, drop-in replacement for an older Cutler-Hammer CH120 breaker.
Is this breaker suitable for switching lighting circuits?
Yes. The 20A CH120 is SWD (Switch Duty) rated, meaning it is certified for regularly switching 120V fluorescent lighting loads without damaging the internal contacts.
Is the CH120 breaker HACR rated for HVAC equipment?
Yes. It carries a Heating, Air Conditioning, and Refrigeration (HACR) rating, making it compliant for protecting multi-motor HVAC circuits that require an HACR-rated breaker.
How much panel space does the CH120 require?
This single-pole breaker requires exactly one 3/4-inch space in a Type CH load center, allowing for a higher density of branch circuits compared to standard 1-inch panels.
Can I land two wires under the terminal lug of a CH120 breaker?
Yes. The box lug on the CH120 is approved to accept two 14 to 10 AWG copper or aluminum wires, or one 14 to 8 AWG wire.
What is the difference between the CH120 and CHF120 breakers?
The CHF120 is an upgraded version of the CH120 that includes a visual trip indicator flag. Both are 20A, single-pole breakers with a 3/4-inch width and are fully interchangeable in Type CH panels.
What are the primary visual identifiers for a Type CH breaker?
Type CH breakers feature a 3/4-inch per-pole footprint and distinctive Sandalwood (tan) toggle handles. This narrower width and specific handle color distinguish them from standard 1-inch black-handled breakers.
