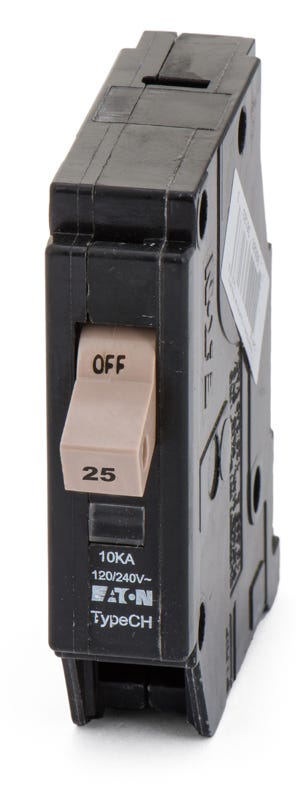

Eaton / Cutler-Hammer CH125 Miniature Circuit Breaker
- 25A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
CH125
Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CH125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CH125 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
Quantity
Eaton / Cutler-Hammer CH125 - 25A 1 Pole Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH125 |
| Series | CH |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 10kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated |
Sold out
Quantity
Eaton / Cutler-Hammer CH125 - 25A 1 Pole Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH125-R |
| Series | CH |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 10kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated |
Similar Items
15A 1 Pole Miniature Circuit Breaker
40A 1 Pole Miniature Circuit Breaker
50A 1 Pole Miniature Circuit Breaker
Description
Engineered for residential and commercial applications, the 25A single-pole breaker provides standard overload and short-circuit protection. It installs into Eaton and Cutler-Hammer Type CH load centers utilizing a 3/4-inch per pole footprint. Featuring a 10kAIC rating at 120/240V, this HACR-rated unit accommodates 14-8 AWG copper or aluminum wiring. Note that this classic model has been succeeded by the CHF125 with trip flag indication, but remains fully compatible with existing CH panels.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CH125 |
| Series | CH |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC, 48VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC, 10kA @ 48VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type CH Load Centers |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Padlock Attachment |
|---|---|
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat panels are compatible with the CH125 circuit breaker?
This breaker is designed exclusively for Eaton and Cutler-Hammer Type CH load centers. It requires one 3/4-inch space on the busbar.
Can I install a CH125 in an Eaton Type BR load center?
No. Type CH breakers have a 3/4-inch width per pole, while Type BR breakers are 1 inch wide. They use different mounting mechanisms and are not interchangeable.
Is the CH125 suitable for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for heating, air conditioning, and refrigeration applications that require a 25A overcurrent protection device.
What is the difference between the CH125 and the CHF125?
The CHF125 is the updated version of the CH125. The primary difference is that the CHF series includes a mechanical trip flag indicator to easily distinguish a tripped state from the off position. Both fit the same Type CH panels.
Are Eaton CH125 and Cutler-Hammer CH125 the same breaker?
Yes. Eaton acquired Cutler-Hammer, and the CH125 part number remains identical. They are the exact same breaker and are fully interchangeable in Type CH panels.
What is the recommended terminal torque for the CH125?
Always verify the exact torque specifications on the breaker label or load center publication. Generally, Eaton CH breakers require 20 lb-in of torque for 14 to 10 AWG wire connections.
