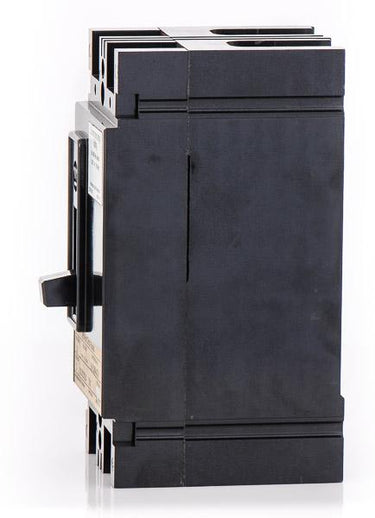

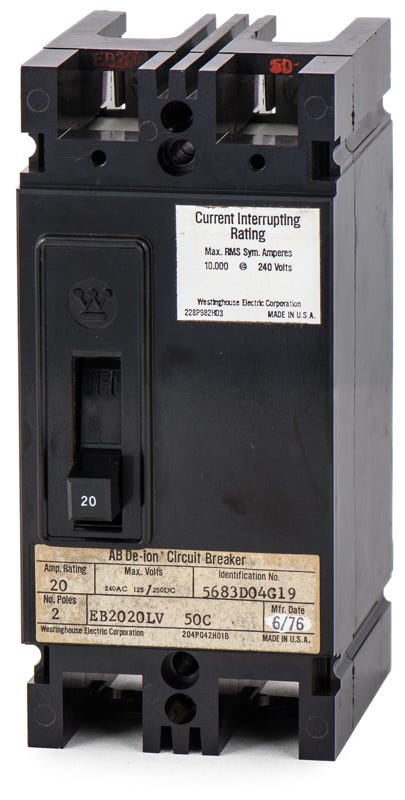

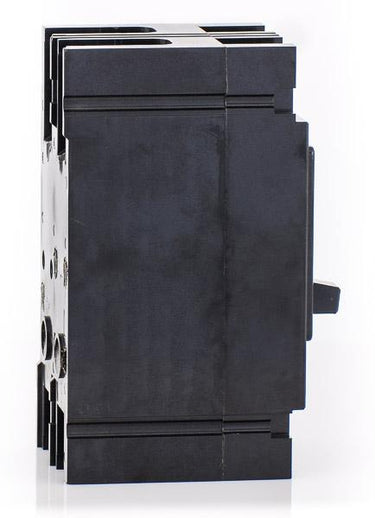

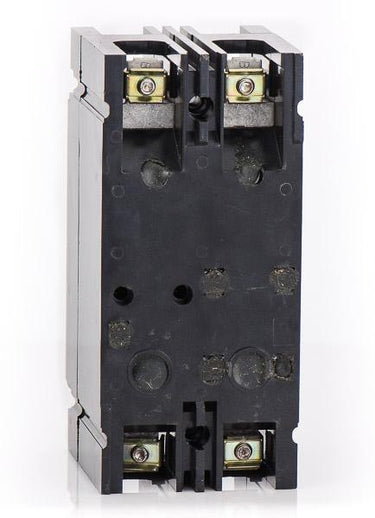

Eaton / Cutler-Hammer EB2020LV-S Molded Case Circuit Breaker
- 20A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
EB2020LV-S
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EB2020LV-S
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EB2020LV-S - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the Eaton EB2020LV-S is a 2-pole, 20A molded case circuit breaker from the legacy E-Frame family. It provides reliable thermal-magnetic protection for branch circuits. This bolt-on breaker installs into vintage Westinghouse FDP and CDP panelboards. It serves as a replacement for aging infrastructure, though it is superseded by the EHD2020 model. Rated at 10kAIC at 240VAC, it features a 50°C ambient calibration and a Saf-T-Vue visual trip indicator.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EB2020LV-S |
| Series | EB |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse FDP, CDP Panelboards |
| Wire Gauge | 14-4 AWG (Al/Cu) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 50°C |
| Construction Features | 50C Ambient Calibration, Visual Trip Indicator |
Product FAQs
6 answersWhich panelboards are compatible with the EB2020LV-S circuit breaker?
This bolt-on breaker is specifically designed for installation in vintage Westinghouse FDP and CDP panelboards to maintain aging electrical infrastructure.
Is there a modern replacement for the legacy EB2020LV-S breaker?
Yes, the EB2020LV-S is a legacy E-Frame breaker that has been superseded by the Eaton EHD2020 model for newer applications or direct replacements.
Does the EB2020LV-S feature a visual trip indicator?
Yes, this model includes a Saf-T-Vue visual trip indicator to help electricians quickly identify a tripped condition in the panel.
What is the ambient temperature calibration for this E-Frame breaker?
This breaker features a 50 degrees Celsius ambient temperature calibration, ensuring reliable thermal protection in warmer commercial and industrial environments.
Are the trip settings adjustable on the EB2020LV-S?
No, this breaker utilizes a fixed thermal and fixed magnetic trip unit, meaning the long-time and instantaneous trip functions cannot be adjusted in the field.
What arc extinction technology does this breaker use?
It utilizes proven AB De-Ion arc extinction technology to clear electrical faults safely and quickly.
