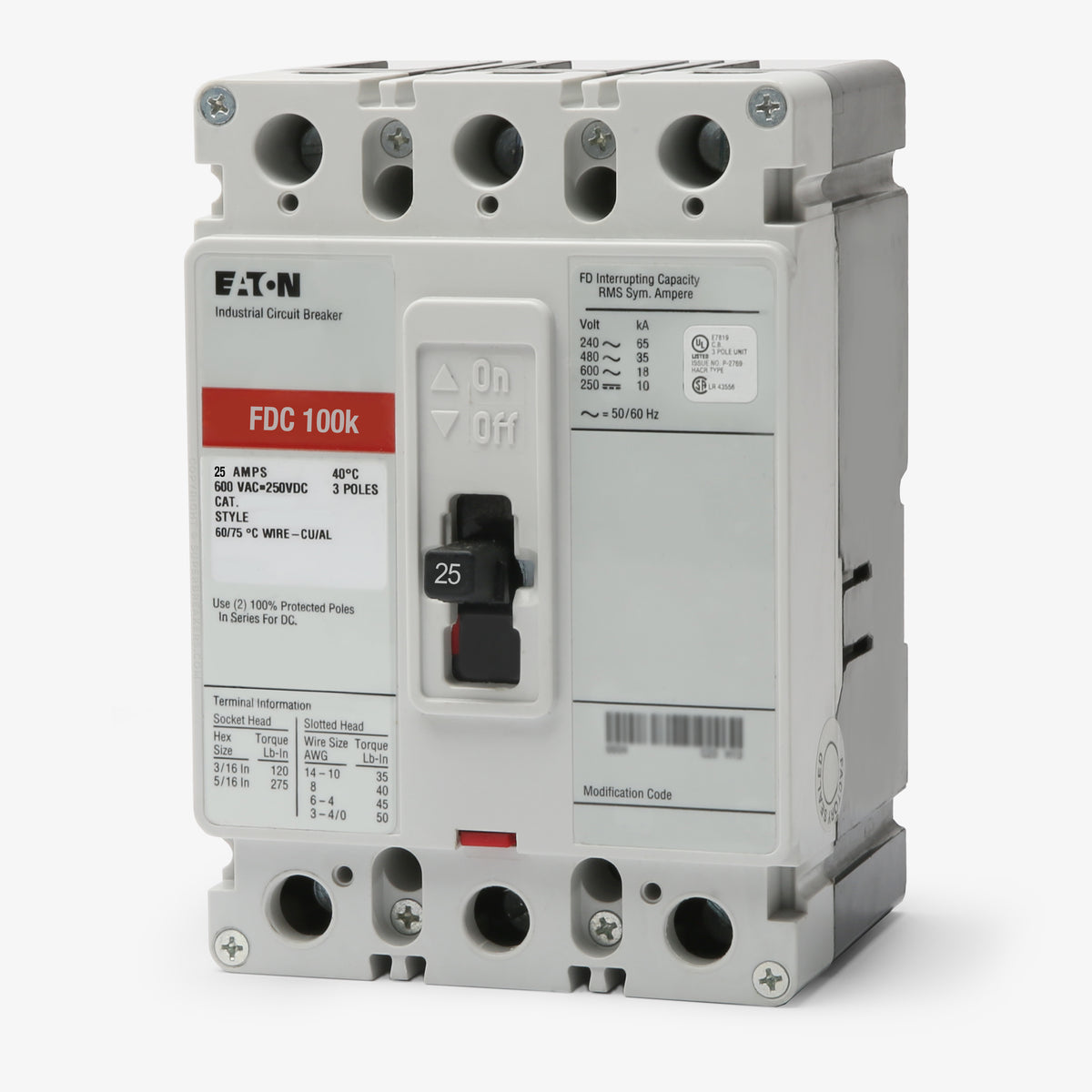

Eaton / Cutler-Hammer FDC3025L Molded Case Circuit Breaker
- 25A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FDC3025L
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FDC3025L
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FDC3025L - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
30A 3 Pole Molded Case Circuit Breaker
30A 3 Pole Molded Case Circuit Breaker
20A 3 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty switchboards, the Eaton FDC3025L is a 25A, 3-pole MCCB featuring factory-installed line and load lugs. The "L" suffix designates this complete feed-thru configuration, saving time during installation in commercial facilities. It mounts into Series C motor control centers and panelboards. When replacing the PDG23P0025TFFJ, this F-Frame model maintains a higher 35kAIC rating at 600V. Delivers fixed thermal-magnetic LI protection with reverse feed capability.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FDC3025L |
| Series | FDC |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Handle Lock |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, HID, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed |
Product FAQs
6 answersCan the FDC3025L replace an FD3025L or HFD3025L breaker?
Yes. The FDC3025L shares the same physical F-frame dimensions as the FD and HFD breakers but offers a higher interrupting capacity. It is a direct drop-in replacement when higher fault current ratings are required.
What does the L suffix indicate on the FDC3025L catalog number?
The L suffix indicates that the breaker comes factory-equipped with standard line and load side lugs. These lugs accept 14 to 1/0 AWG copper or aluminum wire.
Which panelboards and enclosures are compatible with the FDC3025L?
This unit mount breaker is designed for use in Eaton Series C panelboards, motor control centers, and switchboards. It requires bolt-on or unit mount hardware and is not compatible with plug-on load centers.
Is the FDC3025L suitable for direct current circuits?
Yes, this breaker is rated for DC applications up to 250VDC with a maximum interrupting capacity of 22kA. When wiring for DC, consult the manufacturer guidelines for proper pole wiring configurations.
Is the FDC3025L considered a current limiting circuit breaker?
Yes, the FDC frame is a current limiting breaker. It is designed to clear faults extremely fast, reducing the let-through energy and peak let-through current to protect downstream equipment.
Can the FDC3025L be installed on a standard DIN rail?
No, the FDC3025L is a unit mount molded case circuit breaker designed to be bolted directly to a backpan or installed in compatible Series C panelboards. It does not support standard DIN rail mounting.
