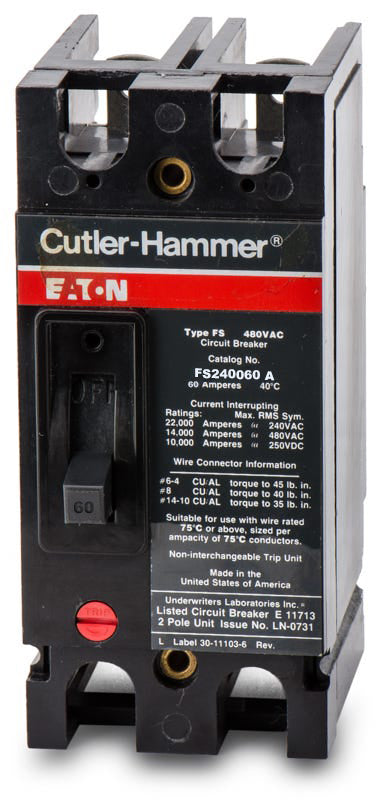

Eaton / Cutler-Hammer FS240060A Molded Case Circuit Breaker
- 60A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
FS240060A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS240060A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS240060A - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
3 Pole Circuit Breaker
Eaton / Cutler-HammerFS320060A
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS340060A
60A 3 Pole Molded Case Circuit Breaker
Description
Built for industrial applications, the FS240060A is a 2-pole, 60A molded case circuit breaker from Eaton's Series C lineup. It provides reliable long-time and instantaneous (LI) protection to prevent equipment damage. This unit mount breaker is designed for integration into Eaton Series C panelboards and standalone enclosures. It also functions as a direct cross-reference for discontinued EHD2060 and FDB2060 models.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS240060A |
| Series | FS |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, HACR Rated |
Product FAQs
7 answersWhat equipment is the FS240060A circuit breaker designed to fit?
This F-frame breaker is engineered for integration into Eaton Series C panelboards, switchboards, and standalone enclosures that support unit-mount, bolt-on configurations.
Can the FS240060A be used to replace older Cutler-Hammer breakers?
Yes, this model functions as a direct cross-reference and replacement for the discontinued EHD2060 and FDB2060 60-amp, 2-pole molded case circuit breakers.
What wire sizes and materials are compatible with the FS240060A terminals?
The standard factory lugs accept wire gauges ranging from 14 AWG to 1/0 AWG and are rated for use with both copper (Cu) and aluminum (Al) conductors.
How is the FS240060A installed into an electrical system?
It utilizes a unit-mount, bolt-on connection, meaning it must be bolted directly to the bus or mounting pan of the panelboard or enclosure rather than snapping into place.
Are the trip settings on the FS240060A adjustable?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The overload and short-circuit trip thresholds are factory-set and cannot be adjusted in the field.
How does the trip unit on the FS240060A protect electrical circuits?
It uses a thermal-magnetic trip unit with long-time and instantaneous (LI) functions. The thermal element protects against sustained overloads, while the magnetic element trips instantly during short circuits.
Is the FS240060A rated for direct current (DC) applications?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC applications with an interrupting capacity of 10kA, making it suitable for specific industrial DC control circuits.
