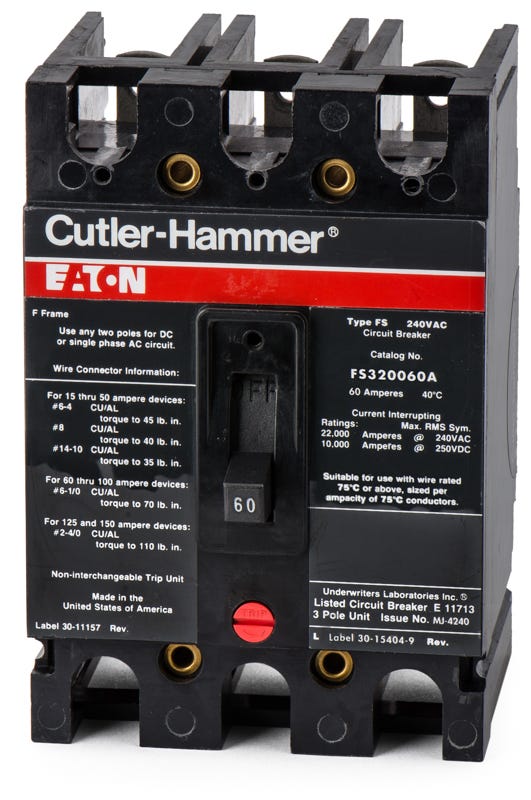

Eaton / Cutler-Hammer FS320060A Molded Case Circuit Breaker
- 60A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FS320060A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS320060A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS320060A - 60A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
Eaton / Cutler-HammerFS340060A
60A 3 Pole Molded Case Circuit Breaker

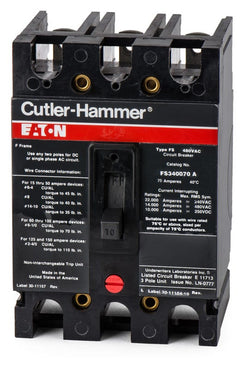

Eaton / Cutler-HammerFS340070A
70A 3 Pole Molded Case Circuit Breaker

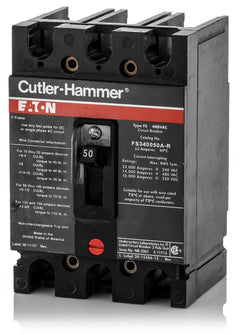

Eaton / Cutler-HammerFS340050A
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton FS320060A is a 3-pole, 60A molded case circuit breaker from the Series C family. This unit mount MCCB installs into compatible Eaton panelboards, switchboards, and enclosures. It includes standard line and load lugs for straightforward wiring. This legacy FS frame is replaced by the FD3060 for newer installations. Rated 22 kAIC at 240VAC, it features a fixed thermal magnetic trip unit with LI functions and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS320060A-R |
| Series | FS |
| Amperage | 60A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, HACR Rated |
Product FAQs
7 answersWhat equipment is compatible with the FS320060A circuit breaker?
This F-frame breaker is designed for installation in Eaton Series C panelboards, switchboards, and industrial enclosures.
What is the recommended replacement for the legacy FS320060A?
For newer installations or panel upgrades, the Eaton FD3060 is the direct replacement for this legacy FS-frame circuit breaker.
Can the FS320060A be utilized in DC power applications?
Yes, in addition to its 240VAC rating, this breaker is rated for 250VDC systems, providing a 10kA interrupting capacity for DC circuits.
What wire sizes are supported by the terminals on this breaker?
The included load side lugs accommodate wire gauges ranging from 14 AWG to 1/0 AWG.
Does this breaker allow for field adjustments to the trip curve?
No, it is equipped with a non-interchangeable thermal-magnetic trip unit featuring fixed long-time and instantaneous (LI) protection settings.
What type of protection does the LI trip function provide?
The LI designation indicates thermal-magnetic protection, combining a long-time delay for standard overload conditions with an instantaneous trip response for short circuits.
How is the FS320060A mounted within an enclosure?
This is a unit mount breaker, meaning it fastens directly to a backpan or mounting plate rather than plugging or bolting directly onto a panelboard bus.
