Eaton / Cutler-Hammer FS240100A Molded Case Circuit Breaker
- 100A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
FS240100A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS240100A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

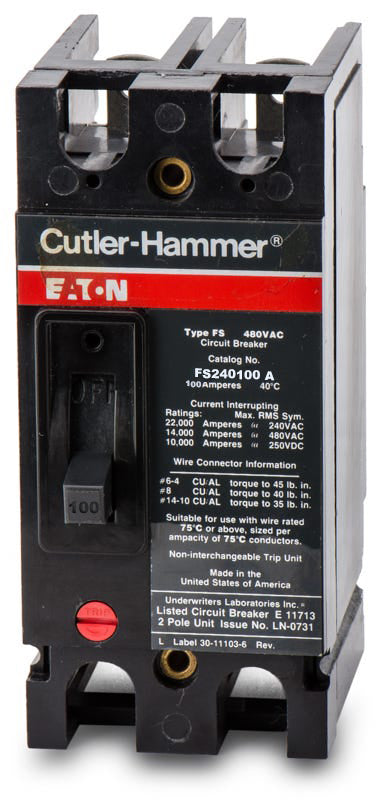

Eaton / Cutler-Hammer FS240100A - 100A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerFS240020ASR01
20A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, the Eaton FS240100A is a 2-pole, 100A molded case circuit breaker from the Series C family. It provides dependable thermal-magnetic overcurrent protection. This F-frame breaker installs into Eaton panelboards, switchboards, and motor control centers. It serves as a unit-mount solution and is replaced by the EHD2100 in newer installations. Rated for 14 kAIC at 480VAC, it features a factory-sealed, non-interchangeable trip unit and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS240100A |
| Series | FS |
| Amperage | 100A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
7 answersWhat equipment is compatible with the FS240100A breaker?
This F-Frame breaker is designed for installation in Eaton Series C panelboards, switchboards, and motor control centers. It requires a bolt-on connection and is not compatible with standard residential plug-on load centers.
What frame size does the FS240100A use?
It is built on the Eaton Series C F-Frame platform, specifically utilizing the FS frame type. It shares physical dimensions and mounting footprints with other standard Eaton F-Frame breakers.
What wire sizes and materials do the terminals on the FS240100A accept?
The factory-installed lugs accommodate 14 AWG to 1/0 AWG conductors. They are dual-rated for use with both copper (Cu) and aluminum (Al) wiring.
How is the FS240100A mounted into an electrical panel?
It utilizes a unit-mount, bolt-on configuration. The breaker must be physically bolted to the bus or mounting pan, ensuring a secure connection in industrial or commercial environments.
Is the FS240100A suitable for direct current (DC) systems?
Yes, in addition to its standard AC ratings, this breaker is rated for 250VDC applications, providing a 10kAIC interrupting capacity for DC circuits.
Can I adjust the trip settings on the FS240100A?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip functions are factory-set and cannot be adjusted in the field.
What does the LI trip function code indicate on this breaker?
The LI designation means the thermal-magnetic trip unit provides Long-Time (L) protection against gradual overloads and Instantaneous (I) protection against severe short circuits.
