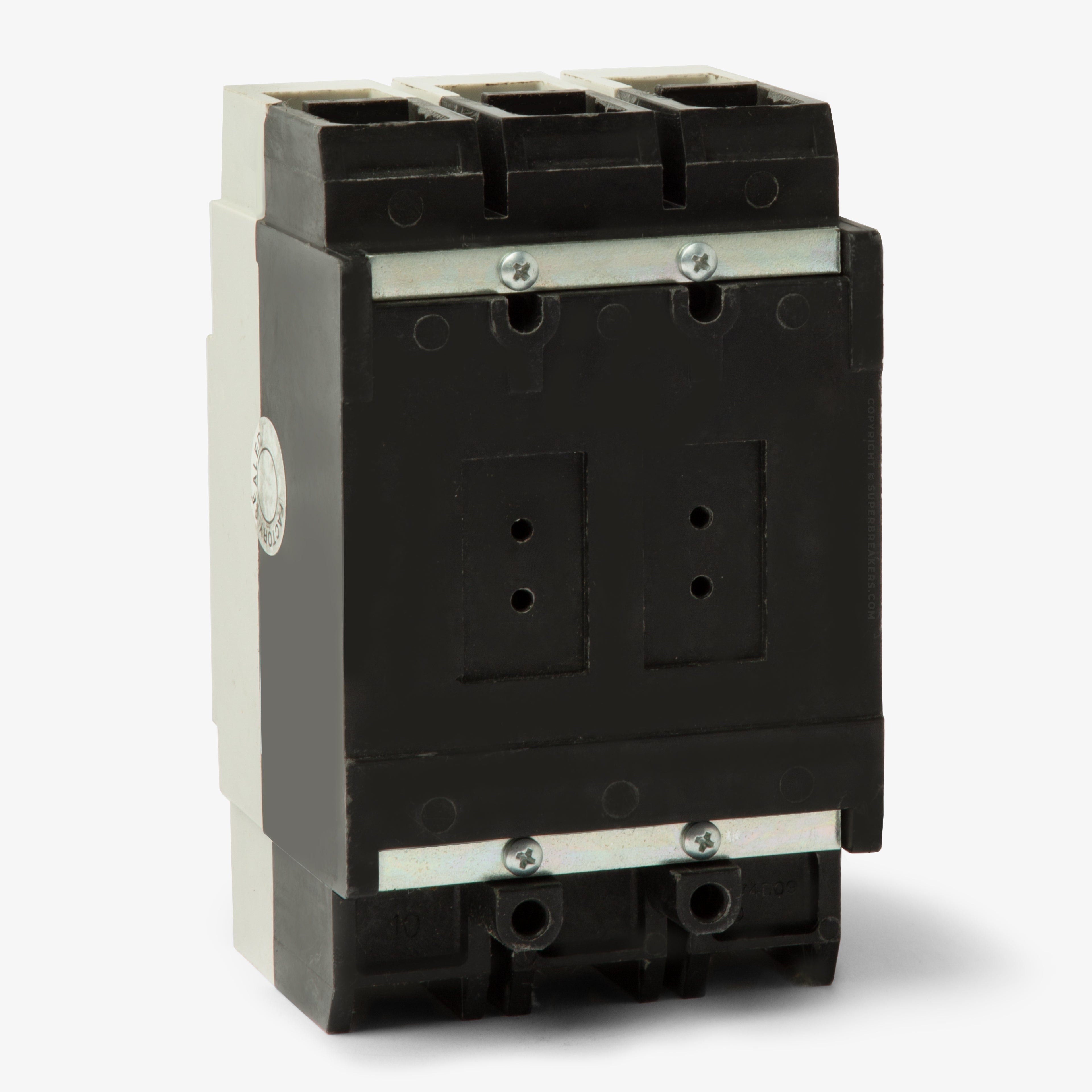

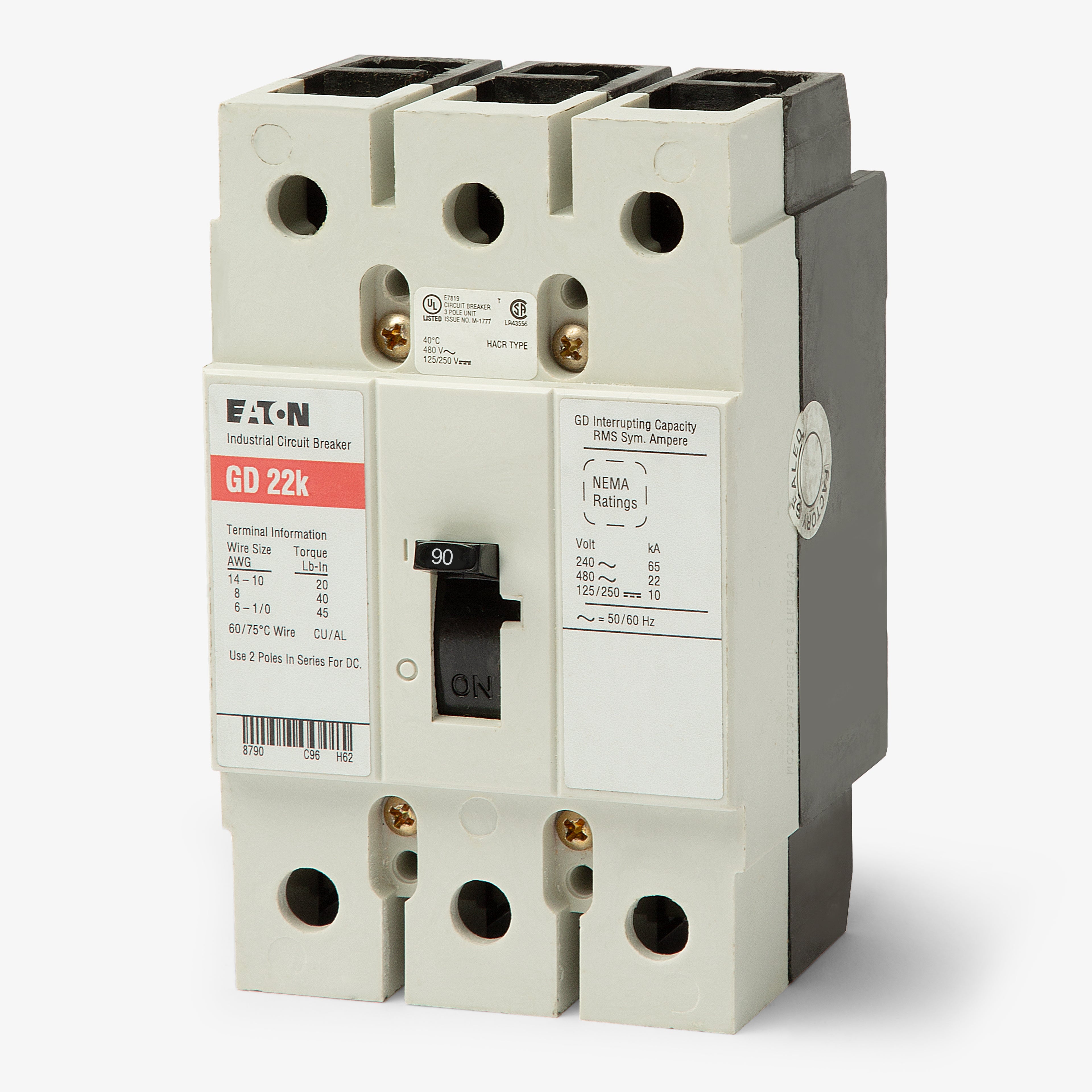

Eaton / Cutler-Hammer GHC3090 Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
GHC3090
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GHC3090
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GHC3090 - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerGHC3100S1
100A 3 Pole Molded Case Circuit Breaker
80A 3 Pole Molded Case Circuit Breaker
70A 3 Pole Molded Case Circuit Breaker
Description
Operating at 90 amps, this 3-pole Series C circuit breaker offers essential overcurrent protection. The G-frame MCCB utilizes a fixed thermal-magnetic trip unit, providing precise LI response for industrial machinery and facility power. Installation is straightforward with its unit-mount design. The breaker integrates into Eaton panelboards, motor control centers, and standalone enclosures. Rated 14kAIC at 480Y/277VAC, the GHC3090 features current limiting capabilities and is HACR rated.Specifications

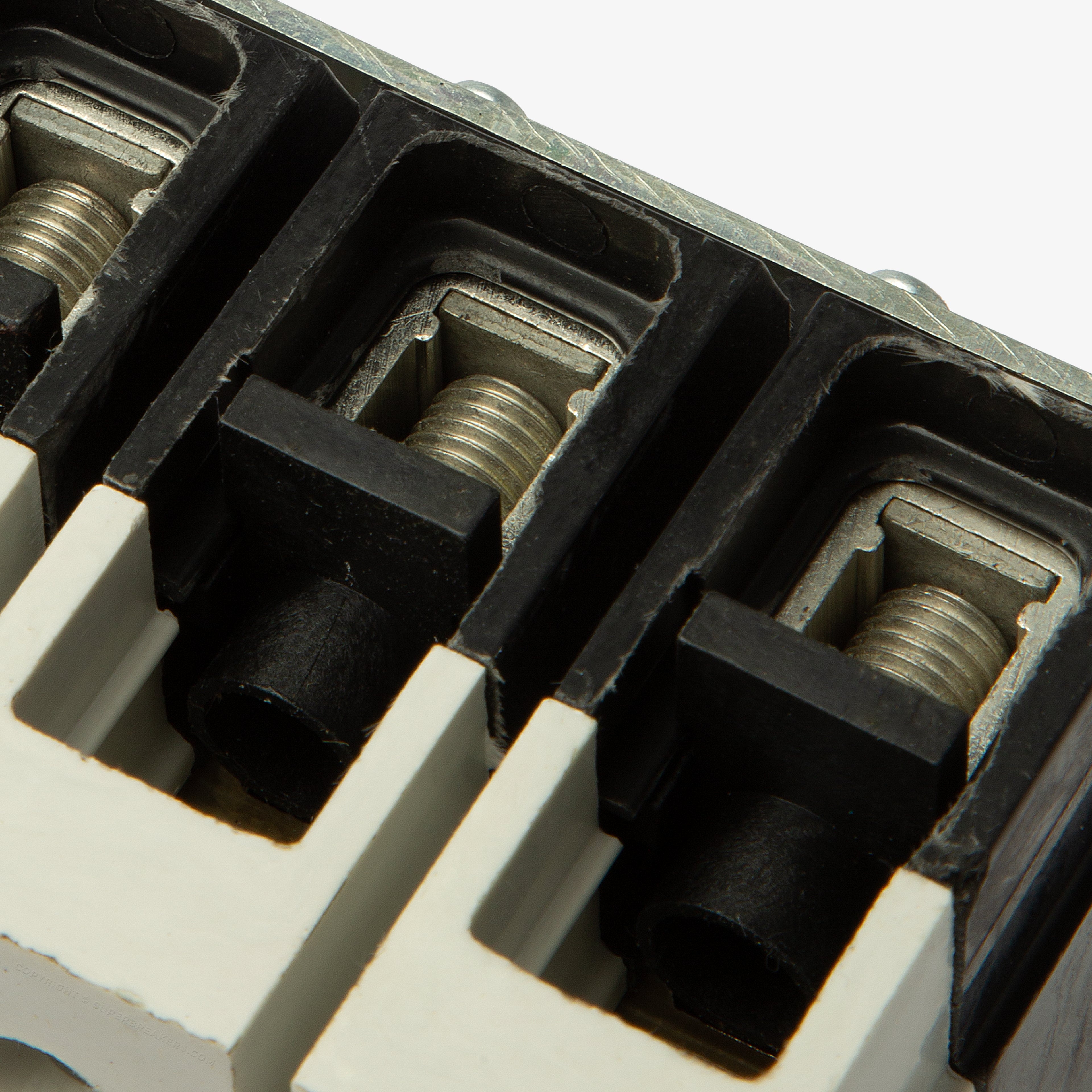

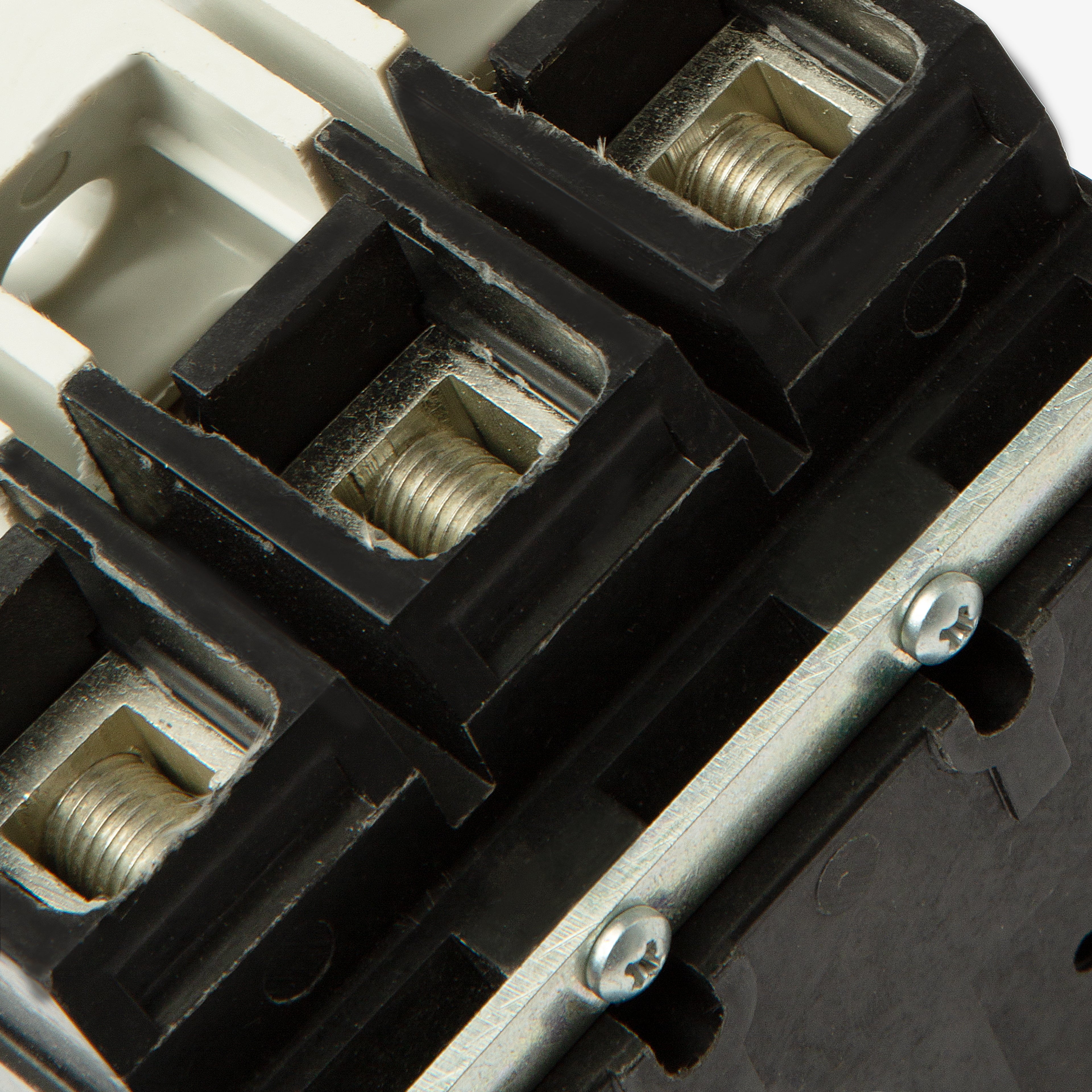

| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GHC3090 |
| Series | GHC |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480Y/277VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 14kA @ 480Y/277VAC, 14kA @ 125/250VDC |
| Frame Type | GHC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, OEM Panels, Enclosures, Motor Control Centers, DIN Rail (with adapter) |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed |
Product FAQs
6 answersWhich panelboards and enclosures are compatible with the GHC3090 circuit breaker?
This G-Frame breaker is designed for use in Eaton Series C panelboards, motor control centers, and OEM enclosures. It can also be mounted on a standard DIN rail when paired with the appropriate Eaton adapter plate.
What wire sizes are accepted by the standard lugs on the GHC3090?
The factory-installed line and load lugs accept wire gauges ranging from 14 AWG to 1/0 AWG. Ensure you use properly rated copper or aluminum conductors as required by standard electrical codes for a 90-amp circuit.
Is the Eaton GHC3090 suitable for reverse feed applications?
Yes, Eaton Series C G-Frame circuit breakers, including the GHC3090, are suitable for reverse feed use. They are also HACR rated for heating, air conditioning, and refrigeration applications.
Can I use the Eaton GHC3090 to replace an older Cutler-Hammer or Westinghouse breaker?
Yes. Eaton acquired both Cutler-Hammer and the Westinghouse distribution equipment lines. The current Eaton GHC3090 is a direct, drop-in replacement for legacy Cutler-Hammer and Westinghouse breakers bearing the exact same GHC3090 catalog number.
Does the GHC3090 provide ground fault or arc fault protection?
No. This breaker features a standard thermal magnetic trip unit designed strictly for overload and short circuit protection. It does not contain GFCI or AFCI circuitry.
What does the 480Y/277VAC voltage rating indicate for installation?
The slash rating of 480Y/277VAC means this breaker is approved for use on solidly grounded wye systems where the line-to-ground voltage does not exceed 277 volts. It is not rated for use on 480V ungrounded or corner grounded delta systems.
