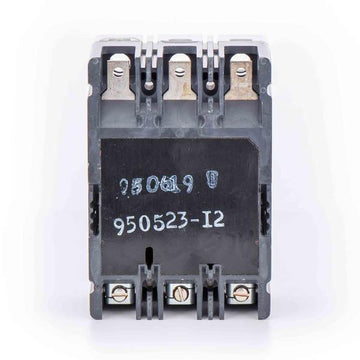

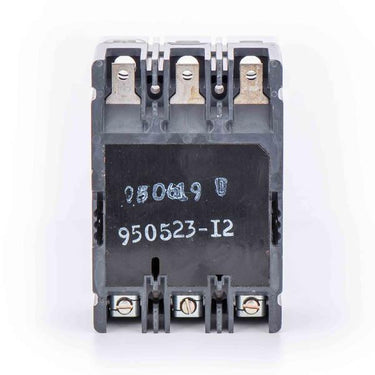

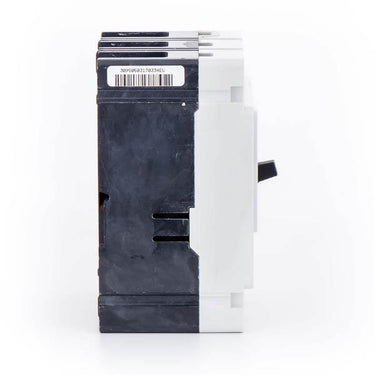

Eaton / Cutler-Hammer HFD3050V Molded Case Circuit Breaker
- 50A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
HFD3050V
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD3050V
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD3050V - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
45A 3 Pole Molded Case Circuit Breaker
60A 3 Pole Molded Case Circuit Breaker
35A 3 Pole Molded Case Circuit Breaker
Description
Designed for high-temperature applications, the Eaton HFD3050V is a 3-pole, 50A MCCB with a 50°C ambient calibration. It delivers precise thermal-magnetic LI protection for industrial and marine use. This panel-mount F-Frame breaker integrates into Eaton Series C panelboards and motor control centers. It includes load-side lugs and is replaced by the Power Defense PDG23M0050VFFJ. Handling severe events, it boasts a 65 kAIC rating at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | HFD3050V |
| Series | HFD |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 22kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Motor Control Centers, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lug |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 50C |
| Construction Features | HACR Rated, High Interrupting Capacity, Reverse Feed, Non-Interchangeable Trip, HID Rated, 50C Ambient Calibration |
Product FAQs
7 answersWhat does the 'V' suffix indicate on the HFD3050V catalog number?
The 'V' suffix means the thermal-magnetic trip unit is calibrated for a 50 degrees Celsius (122 degrees Fahrenheit) ambient temperature. Standard Series C breakers are calibrated for 40 degrees Celsius. This makes the HFD3050V suitable for high-temperature environments like generator housings or specific industrial enclosures.
Can the HFD3050V be used to replace a standard HFD3050 or FD3050 breaker?
Yes. It shares the exact same F-frame physical dimensions, mounting footprint, and bolt-on configuration as the standard HFD3050 and older FD3050 breakers. The primary difference is the 50 degrees Celsius thermal calibration, which is fully compatible with standard applications.
What type of trip unit is installed in the HFD3050V?
This breaker features a non-interchangeable, fixed thermal and fixed magnetic trip unit. It provides standard long-time and instantaneous (LI) protection and does not have adjustable dials for trip settings.
What wire sizes are compatible with the standard lugs on this breaker?
The factory-installed lugs accept 14 AWG through 1/0 AWG copper or aluminum conductors. Ensure all connections are torqued to the manufacturer specifications printed on the breaker label during installation.
Is this breaker compatible with direct current (DC) systems?
Yes, the HFD3050V is rated for up to 250VDC with a 22kA interrupting capacity. This allows it to be used in specific DC control panels, battery systems, or distribution applications.
How does the HFD3050V mount inside an enclosure?
This is a panel-mount, bolt-on circuit breaker. It bolts directly to the bus or chassis of compatible Eaton Series C panelboards, switchboards, and motor control centers. It is not designed for DIN rail installation.
Can I add internal accessories like a shunt trip to the HFD3050V?
Yes, Eaton Series C F-frame breakers support field-installable internal accessories. You can install shunt trips, auxiliary switches, or undervoltage releases under the front accessory cover.
