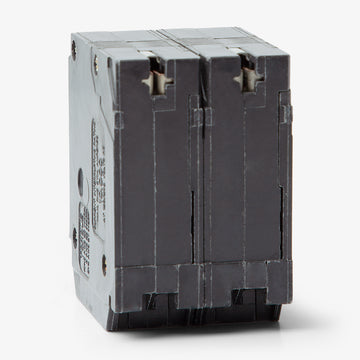

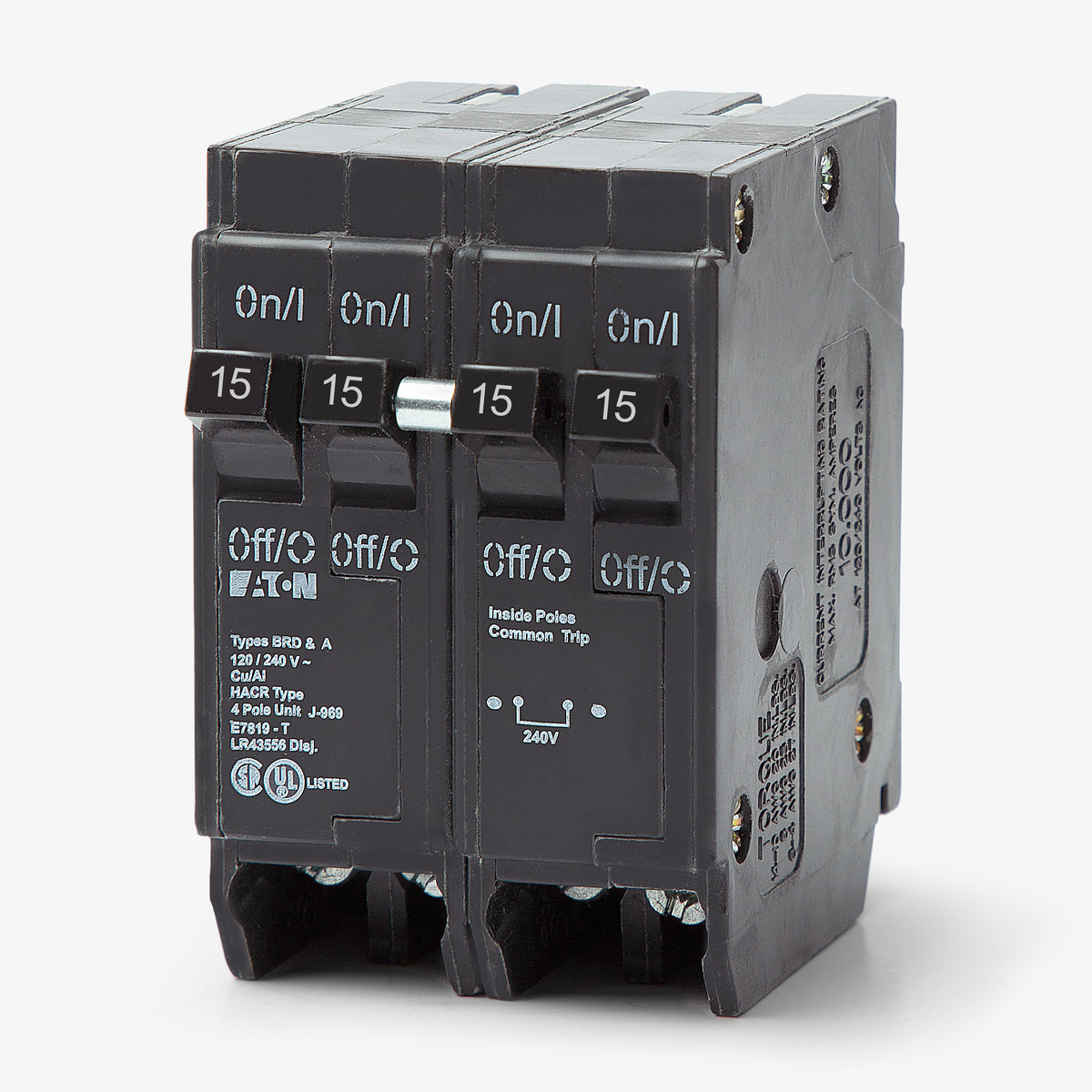

Eaton / Cutler-Hammer BQC215215 15/15A Quadplex Miniature Circuit Breaker
- 15/15A
- 4 Pole

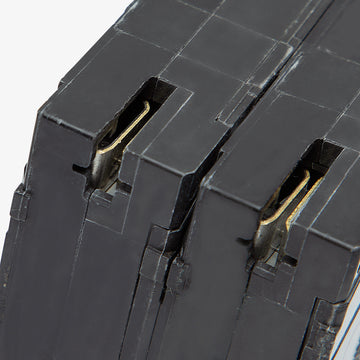

- Plug-On
Eaton / Cutler-Hammer
BQC215215
15/15A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC215215
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC215215 - 15/15A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC2202115
15/20A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC220215
20/15A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC215220
15/20A Quadplex Miniature Circuit Breaker
Description
Designed for high-density power distribution, the Eaton BQC215215 provides 15/15A thermal-magnetic protection across four poles while occupying only two panel spaces. It is ideal for adding branch circuits without upgrading the enclosure. The breaker installs into Eaton Type BR load centers and includes a Class CTL rejection tab to prevent improper placement.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 15/15A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Rejection Tab, Common Trip |
Product FAQs
6 answersWhich load centers accept the BQC215215 quadplex breaker?
It is engineered for Eaton Type BR load centers. It is also UL listed for use in legacy Westinghouse, Challenger, and Bryant panels that accept 1-inch BR style plug-on breakers.
Does the BQC215215 feature a CTL rejection clip?
Yes, this is a Class CTL breaker. It includes a physical rejection tab that prevents installation in panel slots not rated for tandem or quadplex breakers, ensuring NEC compliance for panelboard circuit limits.
What specific circuit configuration does the BQC215215 provide?
This quad breaker delivers two separate 2-pole 15A circuits while only occupying two standard 1-inch panel spaces. Both 2-pole circuits utilize a common trip mechanism for 240V applications.
How does the common trip function operate on this quad breaker?
The internal common trip mechanism ensures that an overcurrent event on one leg of a 2-pole circuit will simultaneously trip both poles. This safely disconnects all power to the connected 240V load.
Is the BQC215215 a direct replacement for legacy Bryant quad breakers?
Yes. Eaton Type BR breakers are the official, UL listed replacements for older Bryant, Challenger, and Westinghouse load centers that require 1-inch plug-on circuit breakers.
What conductor materials and temperature ratings are supported?

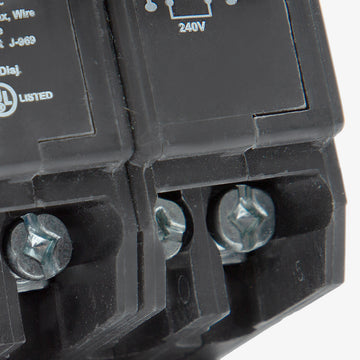

The box lugs accept both copper and aluminum wiring rated for 60C or 75C. Ensure conductors are sized appropriately between 14 AWG and 4 AWG as specified by the NEC.
