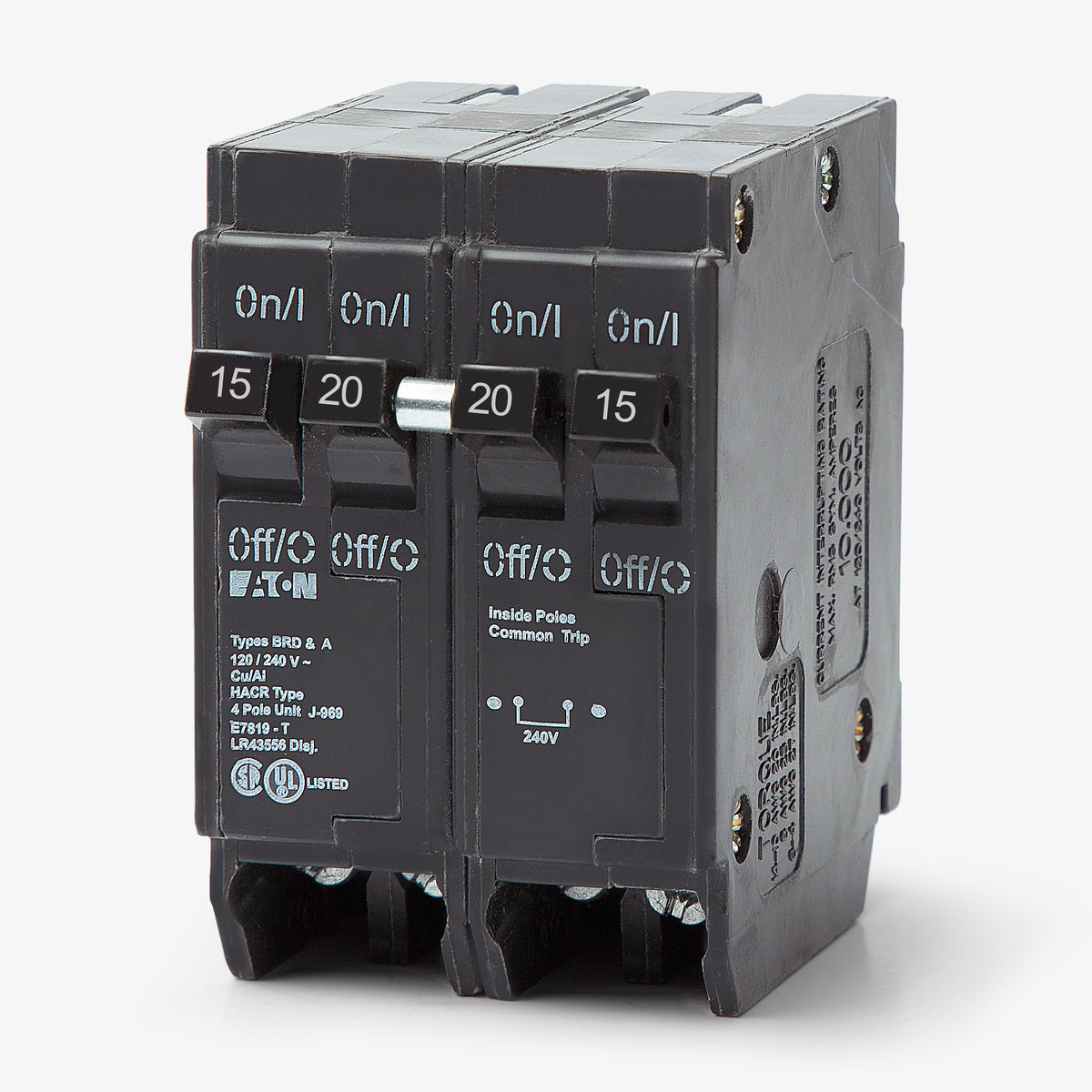

Eaton / Cutler-Hammer BQC215220 15/20A Quadplex Miniature Circuit Breaker
- 15/20A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC215220
15/20A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC215220
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC215220 - 15/20A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC220220
20/20A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC220215
20/15A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC2152120
15/20/20A Quadplex Miniature Circuit Breaker
Description
Built to expand panel capacity, the Eaton BQC215220 quadplex breaker houses four poles within a standard two-space form factor. It delivers reliable thermal-magnetic overcurrent protection for residential and commercial systems. This plug-on component mounts into Eaton Type BR load centers and utilizes a Class CTL rejection tab for code-compliant installation. Rated for 10kAIC at 120/240V, it features common trip mechanisms on both the center 15A and outer 20A poles.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 15/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Rejection Tab (CTL) |
Product FAQs
7 answersWhat panels are compatible with the Eaton BQC215220?
This quadplex breaker is designed for use in Eaton Type BR load centers and meter breaker panels that accept Class CTL tandem breakers.
Can I use this to replace older Bryant or Challenger quad breakers?
Yes, Eaton Type BR breakers are the direct, UL-listed replacements for legacy Bryant, Challenger Type C or Type A, and Westinghouse Type BR load centers.
How are the circuits configured on the BQC215220?
This quad breaker provides two independent 240V circuits in a single unit: one 2-pole 15A circuit and one 2-pole 20A circuit.
How many panel spaces does the BQC215220 require?
This quadplex breaker requires two standard 1-inch spaces in your load center to provide four poles of overcurrent protection.
Does this breaker have a rejection clip?
Yes, the BQC215220 features a Class CTL rejection tab. It can only be installed in panel slots specifically notched to accept tandem or quadplex breakers, preventing overloading of the panel neutral bus.
Does the BQC215220 feature a common trip mechanism?
Yes, this BQC type breaker features common trip on both the 15A and 20A circuits. If an overload or short circuit occurs on one leg of a circuit, it will trip both poles of that specific circuit simultaneously.
Is the BQC215220 rated for HVAC equipment?
Yes, this breaker carries a Heating, Air Conditioning, and Refrigeration (HACR) listing, making it suitable for protecting HVAC motor loads.
