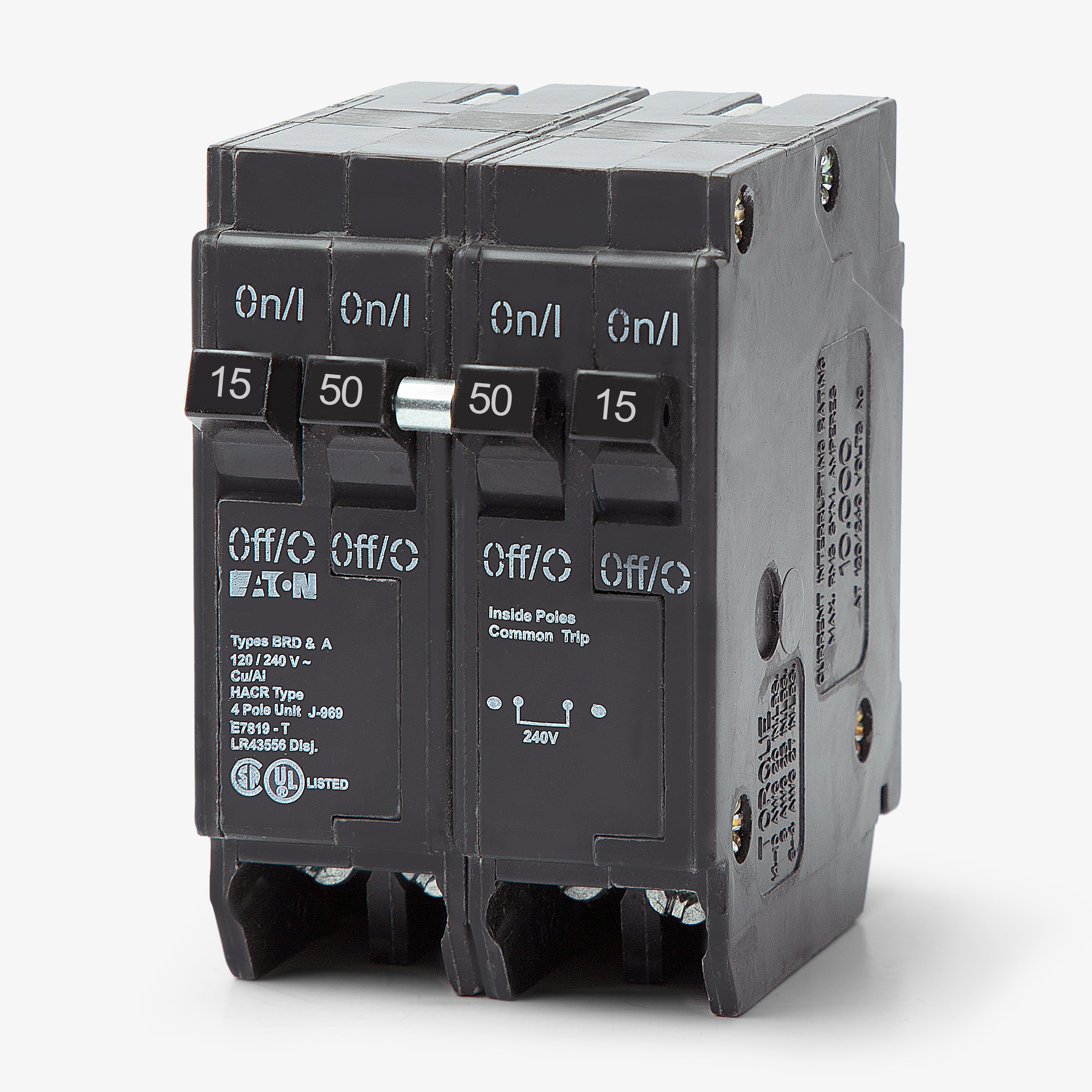

Eaton / Cutler-Hammer BQC215250 15/50A Quadplex Miniature Circuit Breaker
- 15/50A
- 4 Pole

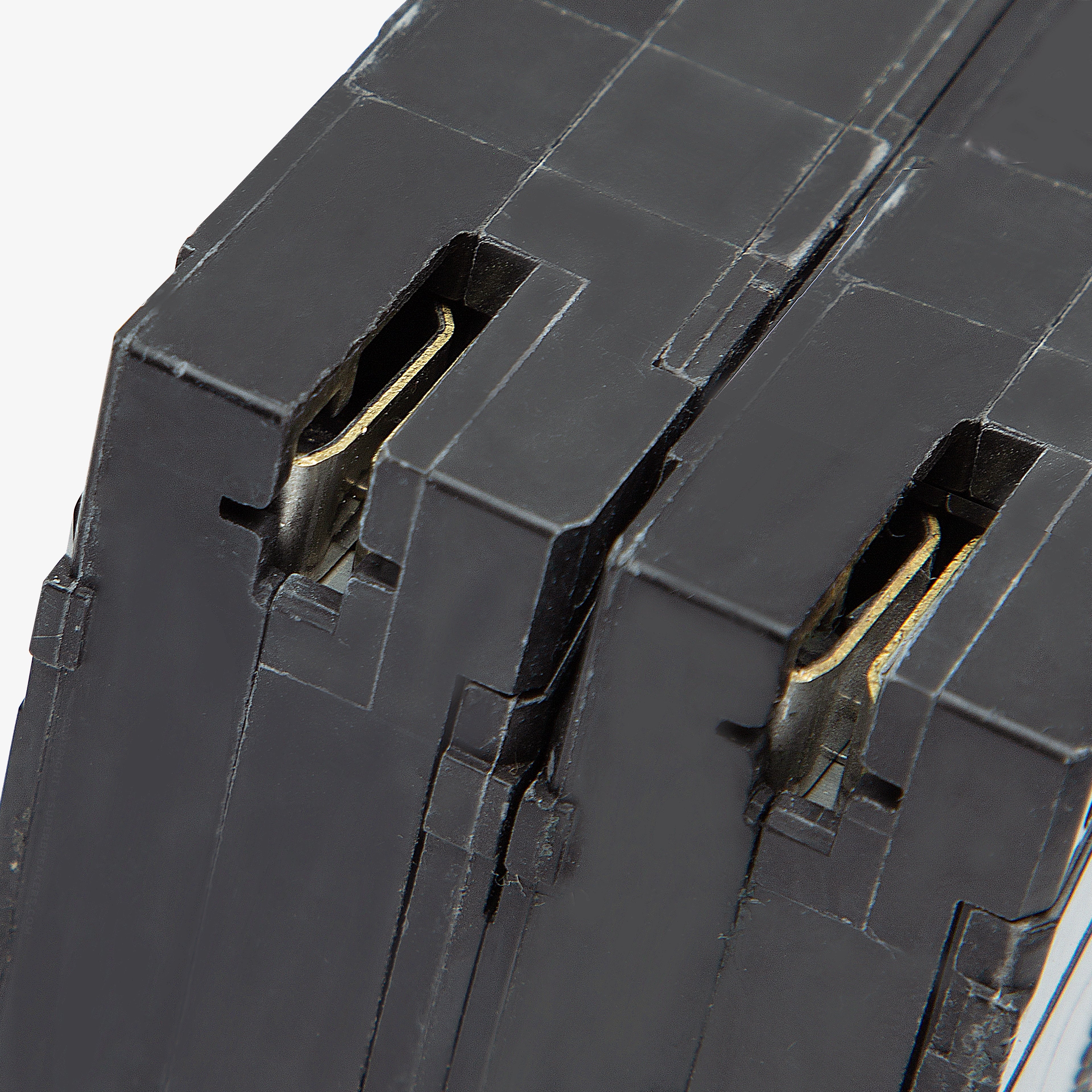

- Plug-On
Eaton / Cutler-Hammer
BQC215250
15/50A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC215250
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC215250 - 15/50A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC230250
30/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC240250
40/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC250220
50/20A Quadplex Miniature Circuit Breaker
Description
Maximizing available enclosure space, the Eaton BQC215250 quadplex breaker houses a 15A two-pole and a 50A two-pole circuit. This configuration is perfect for facilities adding high-draw appliances alongside standard circuits. Designed for seamless integration, it mounts into Eaton Type BR load centers. The breaker requires two 1-inch spaces and utilizes a CTL rejection tab to ensure proper placement. This thermal-magnetic breaker provides a 10kAIC rating, common trip, and HACR certification.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 15/50A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|

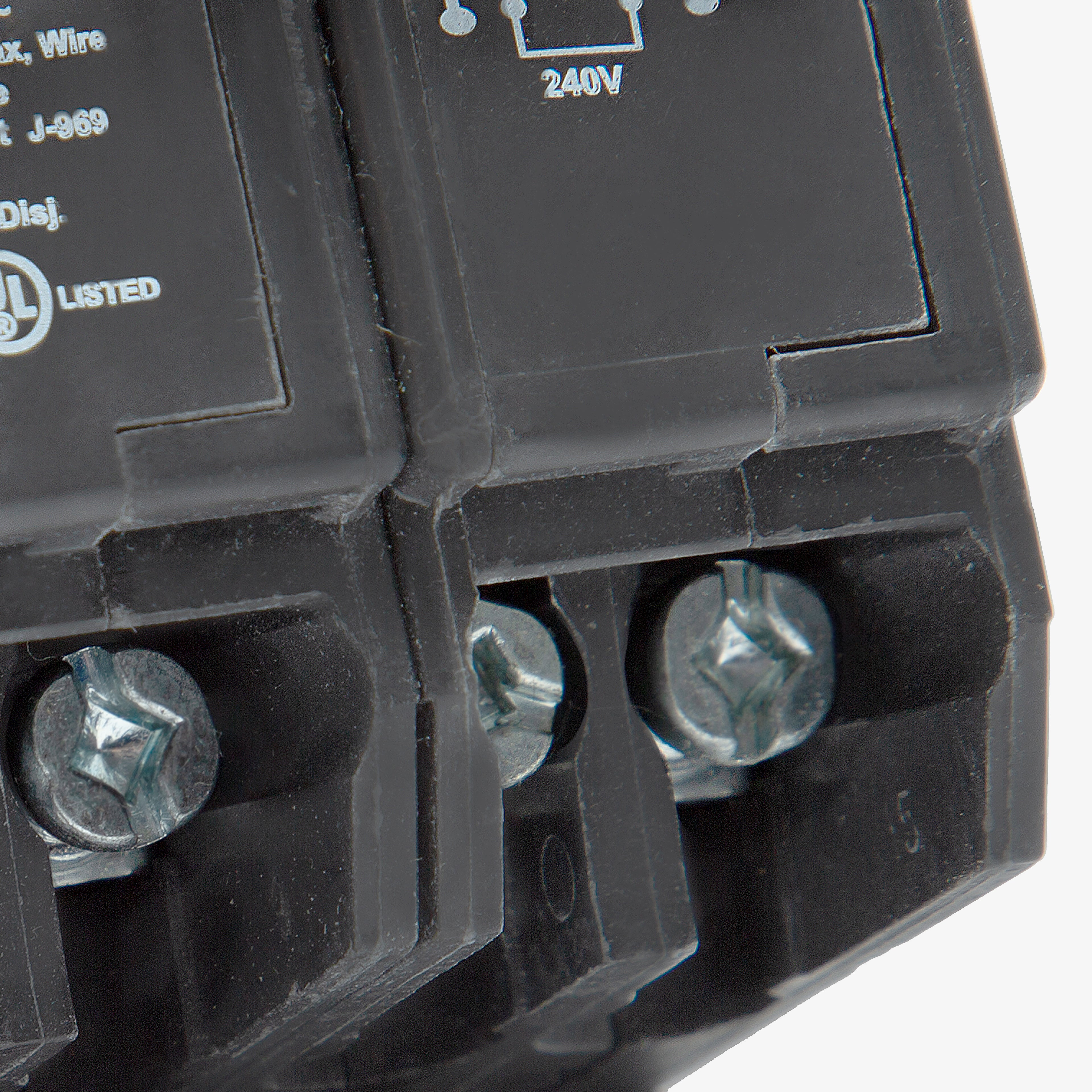

| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, HACR Rated, Rejection Tab |
Product FAQs
5 answersWhich electrical panels are compatible with the BQC215250?
This quadplex breaker is designed exclusively for Eaton Type BR load centers that accept CTL (Circuit Total Limiting) breakers. It is not compatible with Eaton Type CH panels.
How much panel space is required to install this quad breaker?
The BQC215250 requires two standard 1-inch spaces in your load center to provide four poles of protection.
Does the BQC215250 include a rejection tab?
Yes, this breaker features a CTL rejection tab. This safety feature ensures it can only be installed in panel slots specifically notched for tandem or quadplex breakers, preventing the panel's maximum circuit capacity from being exceeded.
Is this quadplex breaker HACR rated?
Yes, the BQC215250 is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
How are the 15A and 50A circuits arranged on this breaker?
This quadplex breaker features a 2-pole 15A outer circuit and a 2-pole 50A center circuit. Both the 15A and 50A circuits have their own independent common trip mechanisms.
