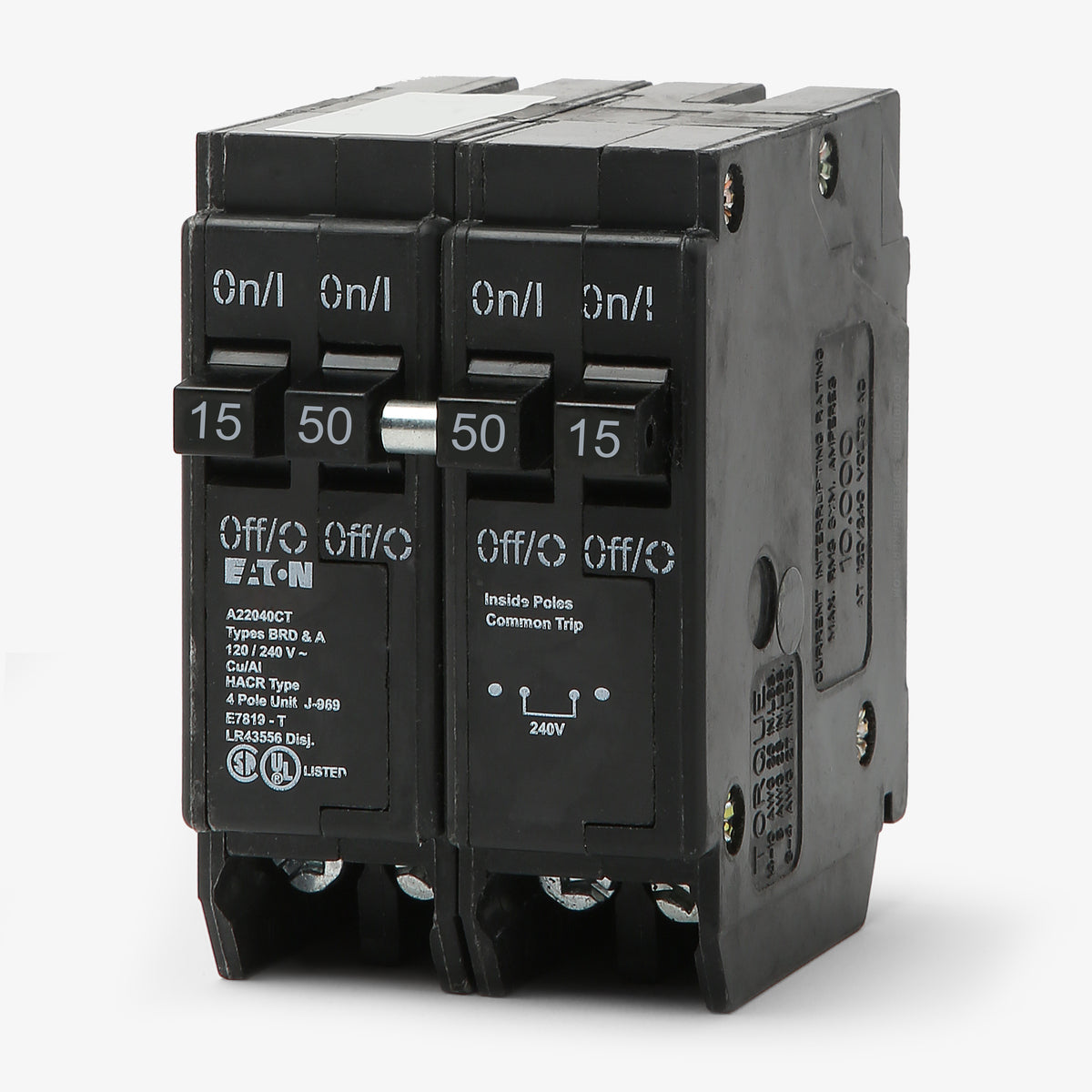

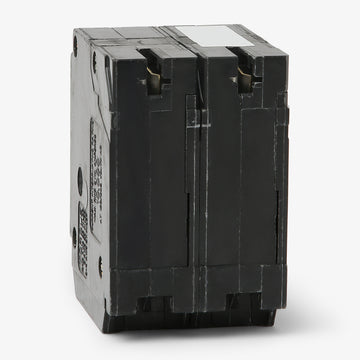

Eaton / Cutler-Hammer BQC2502115 15/50A Quadplex Miniature Circuit Breaker
- 15/50A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC2502115
15/50A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC2502115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC2502115 - 15/50A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC220250
20/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC230250
30/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC240250
40/50A Quadplex Miniature Circuit Breaker
Description
Part of Eaton's BR series, the BQC2502115 is a space-saving quadplex breaker that maximizes panel capacity. It combines two 15A single-pole outer circuits and a 50A two-pole common-trip center, delivering four poles in just two 1-inch spaces. It mounts into Eaton Type BR load centers with notched bus stabs. The Class CTL design features a rejection tab to prevent use in non-CTL slots. Rated 10 kAIC at 120/240V, this thermal-magnetic unit provides reliable LI protection and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 15/50A |
| Poles | 4 |

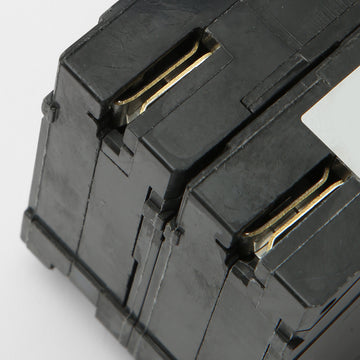

| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|

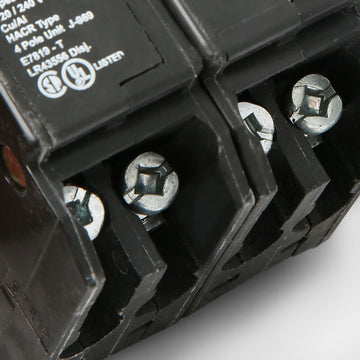

| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG, Cu/Al |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, SWD, UL |
| Temp Rating | 60C to 75C |
Product FAQs
6 answersWhat load centers are compatible with the Eaton BQC2502115?
This quadplex breaker is designed exclusively for Eaton Type BR load centers that accept CTL (Circuit Total Limiting) breakers. The panel must have notched bus stabs to accommodate the rejection clip on the breaker.
How are the circuits configured on this quadplex breaker?
The BQC2502115 provides four poles in a two inch space. The two outer poles are independent 15 amp single pole circuits. The two inner poles form a 50 amp double pole circuit with a common trip.
How much panel space does the BQC2502115 require?
This quadplex breaker requires two standard one inch spaces in an Eaton BR load center, allowing you to add a 50 amp 240V circuit and two 15 amp 120V circuits without taking up four full spaces.
Can this breaker replace older Bryant or Westinghouse quad breakers?
Yes, Eaton BR series breakers are the direct, UL listed replacements for legacy Bryant, Westinghouse, and Challenger BR, BD, and BQ series load centers.
Is the BQC2502115 rated for heating and air conditioning equipment?
Yes, this breaker is HACR rated for use with heating, air conditioning, and refrigeration equipment. Additionally, the 15 amp single pole circuits are SWD (Switch Duty) rated for switching 120V fluorescent lighting loads.
What does the CTL designation mean for this breaker?
CTL stands for Circuit Total Limiting. This safety feature includes a physical rejection tab on the breaker that prevents it from being installed in non-CTL panel slots, ensuring the panel does not exceed its maximum designed number of circuits.
