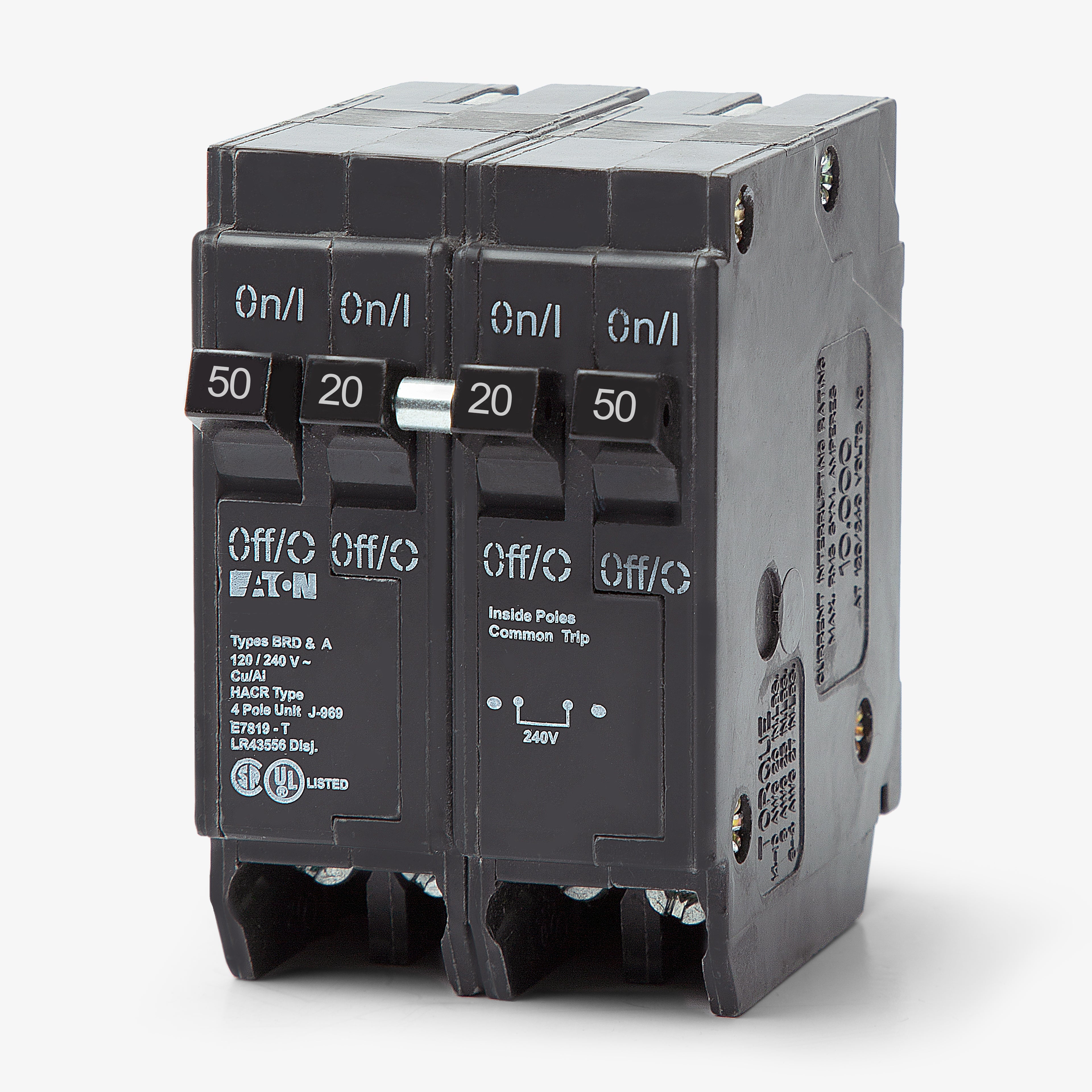

Eaton / Cutler-Hammer BQC250220 - 50/20A Quadplex Miniature Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU BQC250220
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Eaton / Cutler-Hammer BQC250220 - 50/20A Quadplex Miniature Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU BQC250220
Select Item Condition
Earn 76 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer BQC250220 - 50/20A Quadplex Miniature Circuit Breaker

New

$76.85 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Engineered for space-saving efficiency, the Eaton BQC250220 delivers two independent 240V circuits within a compact two-pole footprint. This quadplex design features a 50A two-pole breaker and a 20A two-pole breaker, making it ideal for simultaneously feeding a large appliance and a smaller 240V load. It mounts into Eaton Type BR load centers that accept Class CTL breakers. The unit includes a rejection tab and features a 10kAIC rating with common trip mechanisms for safety.

Specifications

Brand Eaton / Cutler-Hammer
Series BQC
Amperage 50/20A
Voltage 120/240VAC
Poles 4
Phase 1
AIC Rating 10kA @ 120/240VAC
Special Classification Quadplex
Mounting Style Plug-On
Terminal Type Box Lugs
For Use With Eaton Type BR Load Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge #14-4 AWG
Max Wire 4 AWG
Min Wire 14 AWG
Available Options Padlock Attachment
Standards UL 489, Federal Specifications Classification W-C375
Approval UL, HACR
Temp Rating 60C to 75C
Construction Features HACR Rated, Rejection Tab, Common Trip
