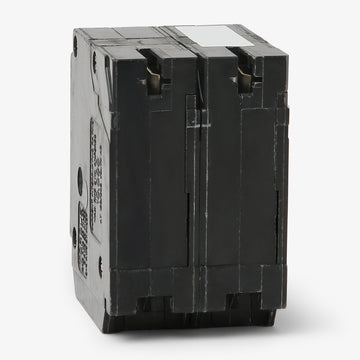

Eaton / Cutler-Hammer BQC2502120 50/20A Quadplex Miniature Circuit Breaker
- 50/20A
- 4 Pole

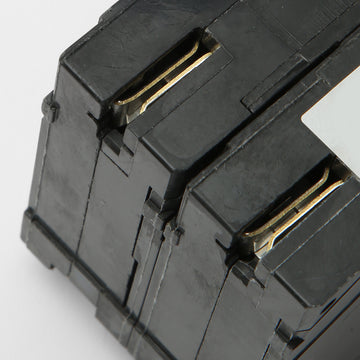

- Plug-On
Eaton / Cutler-Hammer
BQC2502120
50/20A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC2502120
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC2502120 - 50/20A Quadplex Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer BQC2502120 - 50/20A Quadplex Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 50/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG Cu/Al |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, SWD, UL |
| Temp Rating | 40C |
Quantity
Eaton / Cutler-Hammer BQC2502120 - 50/20A Quadplex Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 50/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG Cu/Al |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, SWD, UL |
| Temp Rating | 40C |
Similar Items
Eaton / Cutler-HammerBQC215250
15/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC220250
20/50A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC230250
30/50A Quadplex Miniature Circuit Breaker
Description

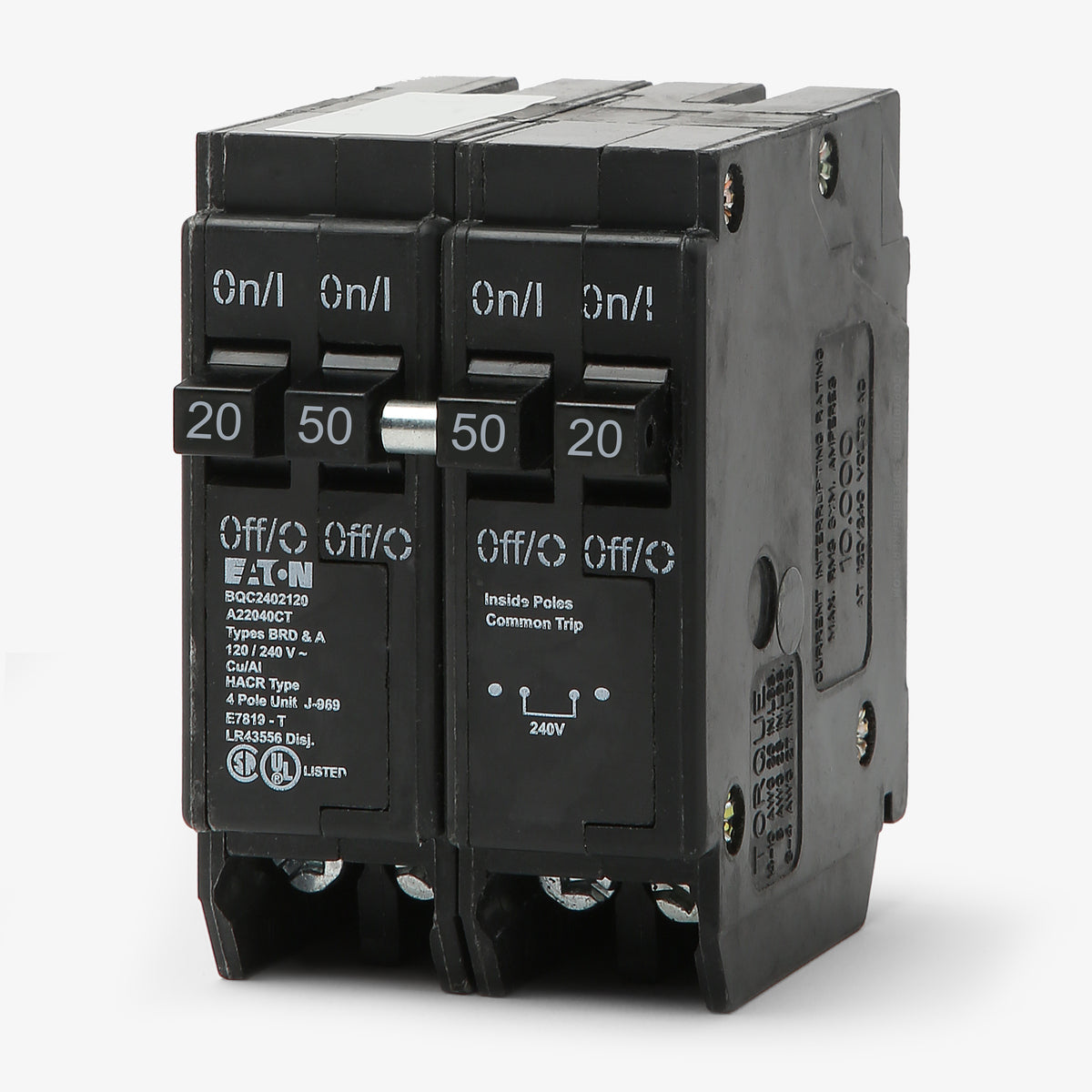

Part of the BR family, the Eaton BQC2502120 maximizes panel space through its 4-pole quadplex design. It features a central 2-pole 50A circuit with common trip, bordered by two independent 1-pole 20A circuits. This plug-on breaker fits securely into Eaton Type BR load centers, taking up just two standard 1-inch spaces. It includes a CTL rejection tab and supports 14-4 AWG wire. With a 10kAIC rating at 120/240VAC, it provides robust thermal-magnetic protection and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 50/20A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG Cu/Al |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, SWD, UL |
| Temp Rating | 40C |
Product FAQs
8 answersWhat panels are compatible with the Eaton BQC2502120 circuit breaker?
This breaker is designed for use in Eaton Type BR load centers. It features a CTL rejection tab and requires two standard 1-inch spaces for installation.
How are the amperages configured on the BQC2502120 quadplex breaker?
The BQC2502120 features a central 2-pole 50A circuit bordered by two 1-pole 20A circuits on the outside.

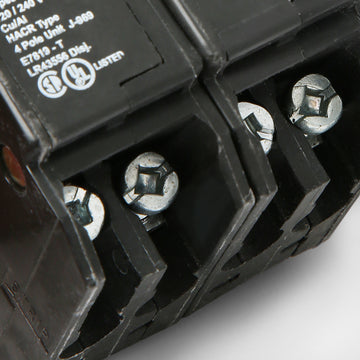

What wire sizes are accepted by the terminals on the BQC2502120?
The box lugs on this breaker accept 14 AWG to 4 AWG copper or aluminum wiring.
How much panel space does the BQC2502120 require?
As a quadplex breaker, it provides four circuits but only occupies two standard 1-inch spaces in your load center.
Is the Eaton BQC2502120 HACR rated?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment.
What is the difference between the BQC2502120 and the BQ2502120?
The BQC2502120 features a common trip mechanism, whereas the BQ2502120 features an independent trip design.
What is the purpose of the rejection tab on the BQC2502120?
The CTL (Circuit Total Limitation) rejection tab prevents the breaker from being installed in panel positions not designed to accept tandem or quadplex breakers.
What type of protection does the BQC2502120 provide?
This thermal-magnetic breaker provides both long-time and instantaneous trip functions, protecting your circuits against sustained overloads and sudden short circuits.
