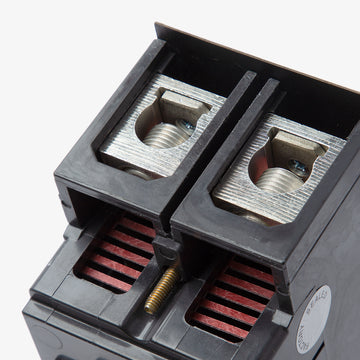

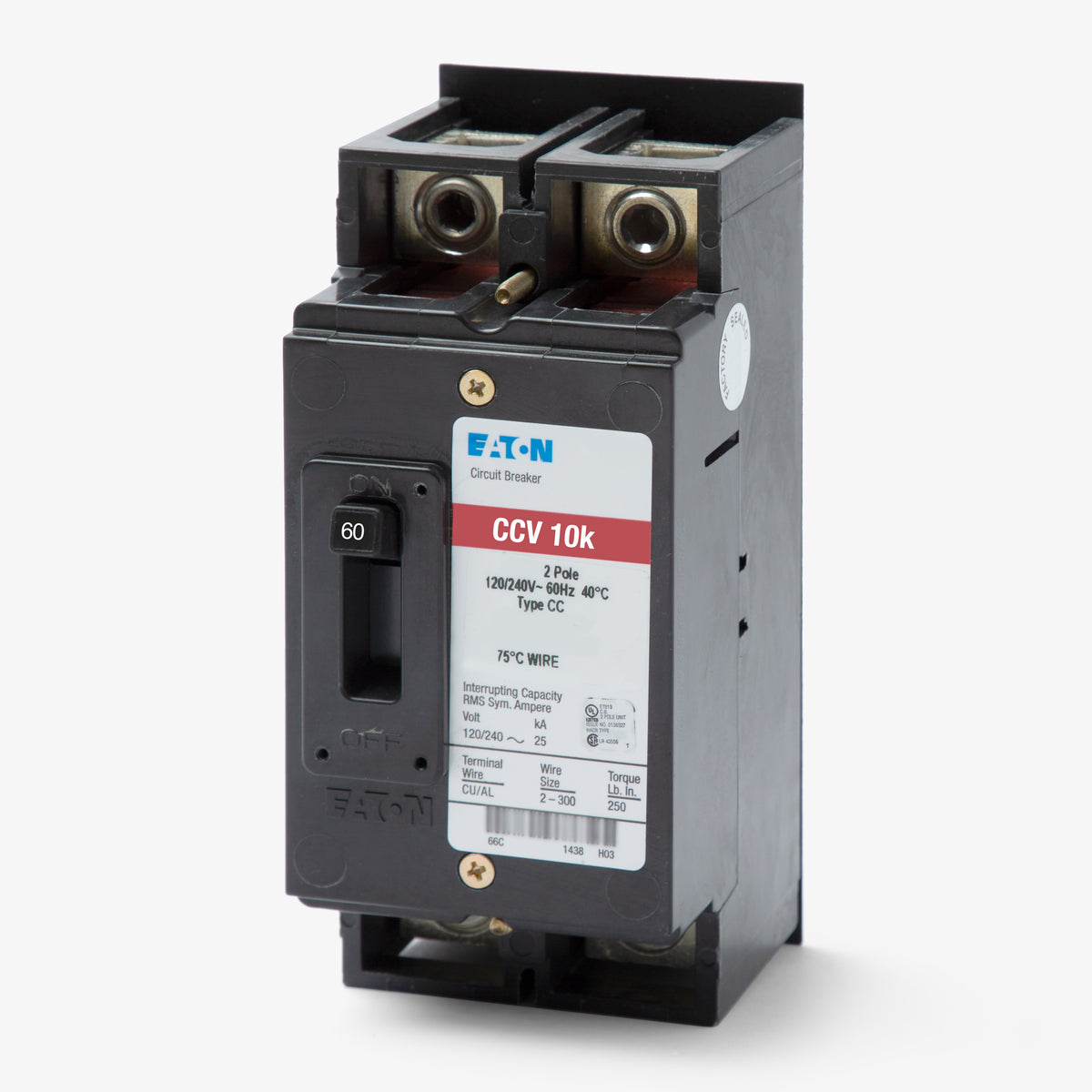

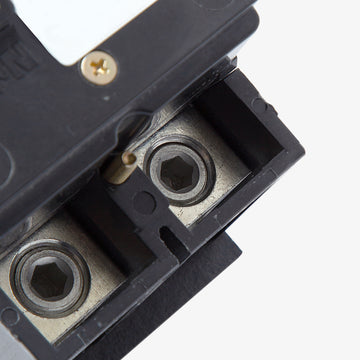

Eaton / Cutler-Hammer CCV2060 Molded Case Circuit Breaker
- 60A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CCV2060
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CCV2060
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CCV2060 - 60A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
200A 2 Pole Molded Case Circuit Breaker
225A 2 Pole Molded Case Circuit Breaker
Description
Operating as a reliable tenant main, this 60-amp breaker protects residential and commercial electrical services. It features a fixed thermal-magnetic trip mechanism for consistent response. The unit integrates seamlessly into Type ECC enclosures as well as 1MP, 1MM, and 3MM modular meter stacks. It acts as a replacement for the older CC2060 model, ensuring backward compatibility. With a 10 kAIC rating at 120/240V, it meets typical utility requirements. Lugs accommodate up to 300 kcmil wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCV2060 |
| Series | CCV |
| Amperage | 60A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | CCV |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type ECC Unit Enclosures, 1MP, 1MM, 3MM Modular Meter Stacks |
| Wire Gauge | #2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main |
Product FAQs
5 answersWhat is the direct replacement for the older Eaton Type CC2060 main breaker?
The Eaton CCV2060 is the direct replacement for the obsolete Type CC2060 circuit breaker. It maintains the same physical footprint and mounting style for use in tenant metering and main breaker applications.
Is there a version of the CCV2060 with a higher interrupting rating?
Yes. If your application requires a higher short-circuit current rating, the Eaton CCVH2060 offers a 25kAIC rating at 120/240V, compared to the 10kAIC rating of the standard CCV2060.
What enclosures and meter stacks are compatible with the CCV2060?
This tenant main breaker is designed for use in Eaton Type ECC unit enclosures, as well as 1MP, 1MM, and 3MM modular group metering stacks.
What does the X suffix mean on Eaton CCV breakers, such as CCV2060X?
A catalog number with an X suffix indicates the breaker is supplied with load-side lugs only. The standard CCV2060 includes both line and load-side lugs installed from the factory.
Why does a 60A breaker like the CCV2060 have such large wire lugs?
As a tenant main breaker used in group metering and service entrance equipment, the CCV2060 is equipped with 2/0 AWG to 300 kcmil lugs to accept larger service conductors. This accommodates the oversized wire often required to minimize voltage drop over long runs in multi-tenant buildings.
