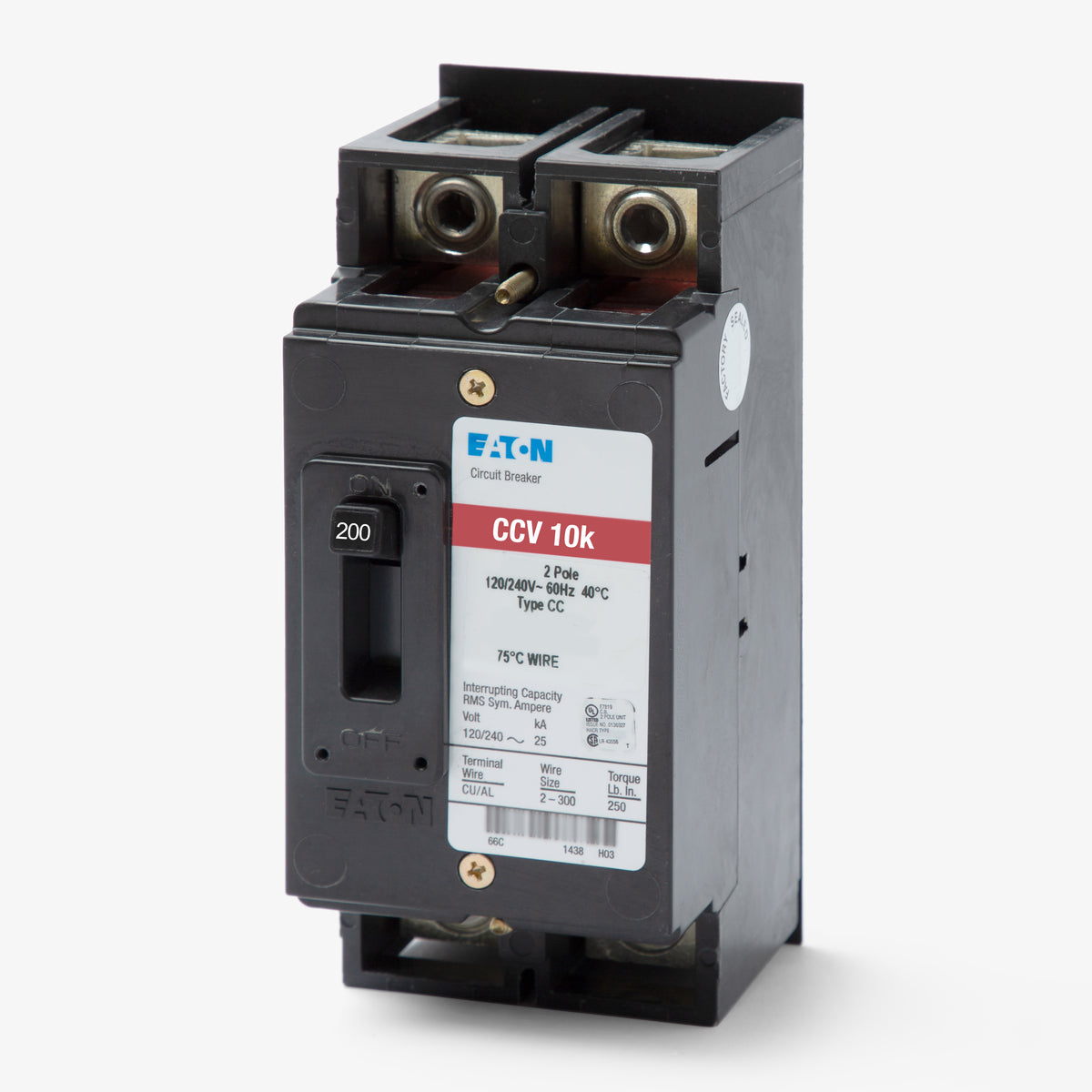

Eaton / Cutler-Hammer CCV2200 Molded Case Circuit Breaker

The CCV2200 is primarily used as a tenant main circuit breaker [1.1.1]. It is designed to bolt into Eaton Type ECC unit enclosures and is highly compatible with 1MP, 1MM, and 3MM modular meter stacks to provide a localized main disconnect and overcurrent protection.

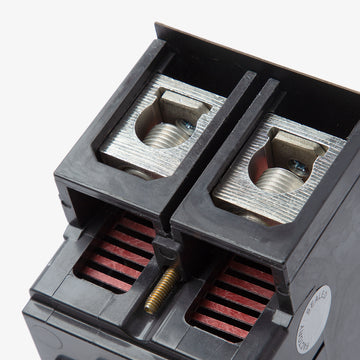

The standard CCV2200 includes both line and load-side wire lugs for feed-thru connections. The CCV2200X variant is manufactured with load-side lugs only, which is required when the line side of the breaker mounts directly to the internal bus of certain meter stacks.

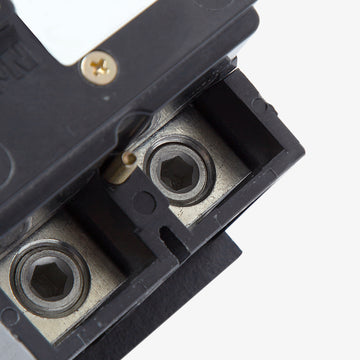

Yes, this feed-thru breaker is shipped from the factory with standard mechanical lugs on both the line and load sides. The lugs safely accept either copper or aluminum wire ranging from #2/0 AWG to 300 kcmil.

The standard CCV2200 provides 10kAIC of short-circuit protection at 240V. For installations with higher available fault currents requiring a 25kAIC interrupting rating, you must upgrade to the high-interrupting Eaton CCVH2200 circuit breaker.

The CCV2200 is a 2-pole breaker designed strictly for single-phase (1-phase) power systems. If your commercial metering equipment requires a 200A 3-phase tenant main, you will need to cross-reference to the 3-pole Eaton CCV3200 model instead.

No, the CCV2200 features a fixed thermal-magnetic trip unit. The long-time (L) thermal overload protection and instantaneous (I) magnetic short-circuit protection are permanently factory calibrated and cannot be field-adjusted.

This molded case circuit breaker is UL 489 listed. Additionally, when correctly installed in compatible enclosures per National Electrical Code (NEC) Article 408, it is approved for use as service entrance equipment.
