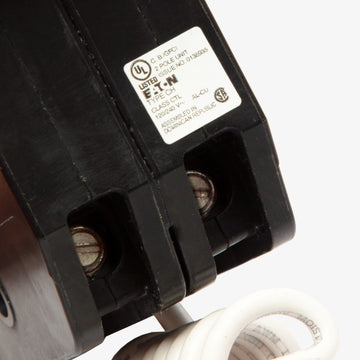

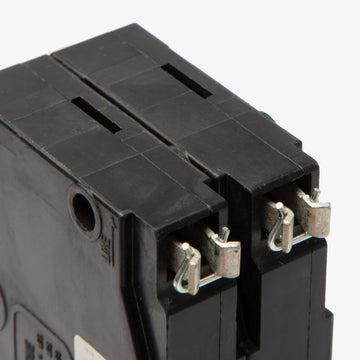

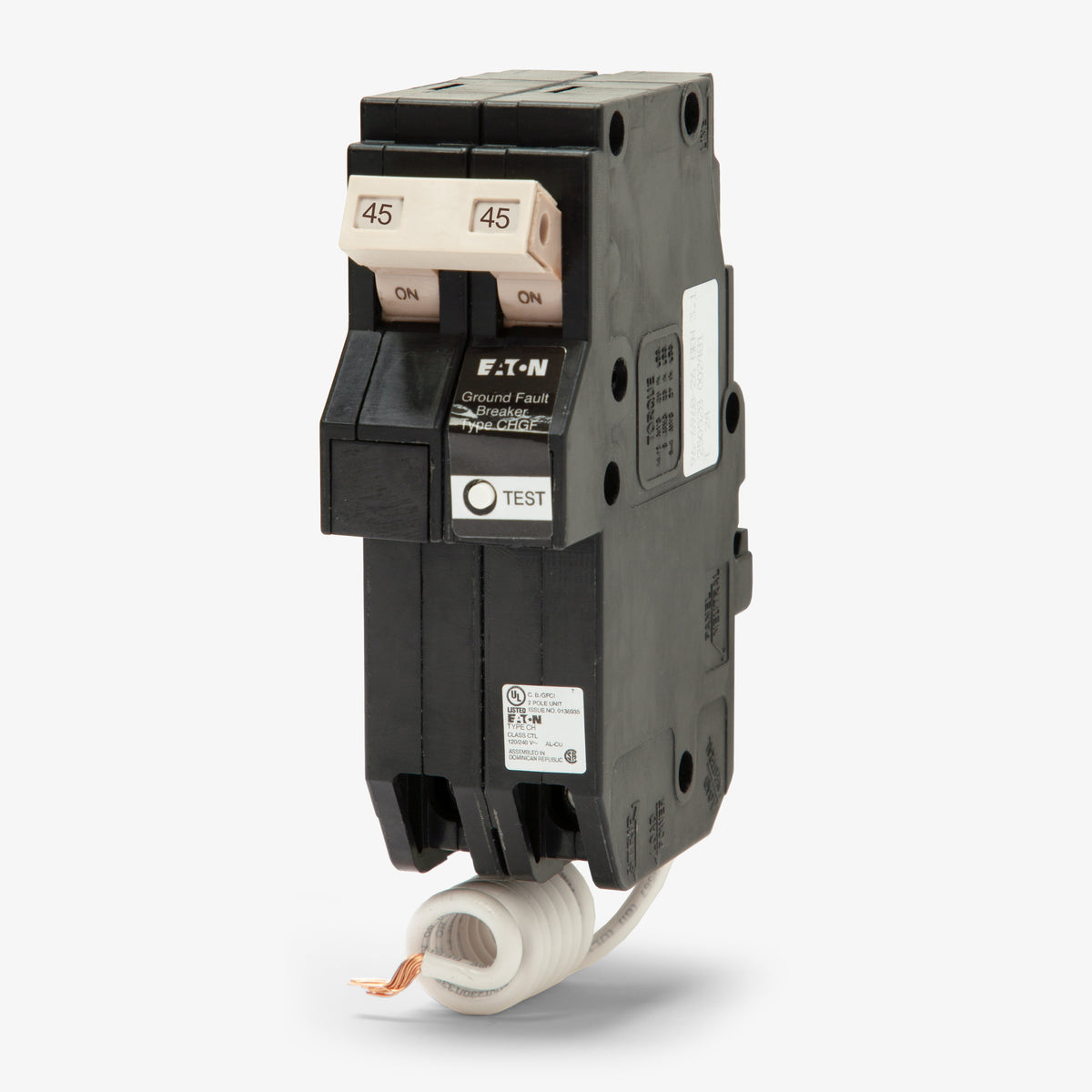

Eaton / Cutler-Hammer CHN245GF GFCI Miniature Circuit Breaker
- 45A
- 2 Pole
- Plug-On
Eaton / Cutler-Hammer
CHN245GF
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CHN245GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CHN245GF - 45A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
40A GFCI Miniature Circuit Breaker
35A GFCI Miniature Circuit Breaker
60A GFCI Miniature Circuit Breaker
Description
Engineered for personnel safety, the CHN245GF provides 45 amps of ground-fault protection for residential and commercial systems. It ensures compliance with NEC requirements for circuits in damp or wet environments. The plug-on unit installs into Eaton CH load centers, including plug-on neutral versions. Equipped with a pigtail neutral, its design avoids interference with the panel's neutral bar. It replaces the legacy CH245GF. This 10 kAIC breaker features self-test functionality.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CHN245GF |
| Series | CHN |
| Amperage | 45A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton CH Loadcenters, Type CH Plug-On Neutral Loadcenters |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Pigtail Neutral Wire |
| Standards | CSA C22.2 No. 5, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Self-Test, Visual Trip Indicator, Quick-Make/Quick-Break |
Product FAQs
6 answersWhich load centers are compatible with the CHN245GF breaker?
This breaker installs into Eaton CH series load centers. It is compatible with both standard CH panels and Type CH plug-on neutral load centers.
Can the CHN245GF replace the older CH245GF model?
Yes. The CHN245GF is the direct replacement for the legacy CH245GF. It maintains the same physical footprint and pigtail neutral connection while adding updated self-test functionality.
Does this breaker require a plug-on neutral panel?
No. Although it is compatible with plug-on neutral load centers, the CHN245GF features a pigtail neutral wire. This wire must be manually routed and terminated at the panel neutral bus bar.
What type of ground fault protection does the CHN245GF offer?
It delivers 5mA Class A ground fault protection. This level of protection is engineered for personnel safety and meets NEC requirements for circuits in damp or wet environments.
Will this breaker fit in an Eaton BR series load center?
No. The CHN245GF is part of the CH family, which uses a 3/4-inch per pole design. It is not interchangeable with Eaton BR series panels, which require 1-inch format breakers.
Does the CHN245GF include self-test capabilities?
Yes. It features built-in self-test functionality that periodically verifies the integrity of the ground fault protection circuitry to ensure ongoing personnel safety.
