Eaton / Cutler-Hammer EGE3110FFG Molded Case Circuit Breaker
- 110A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGE3110FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGE3110FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

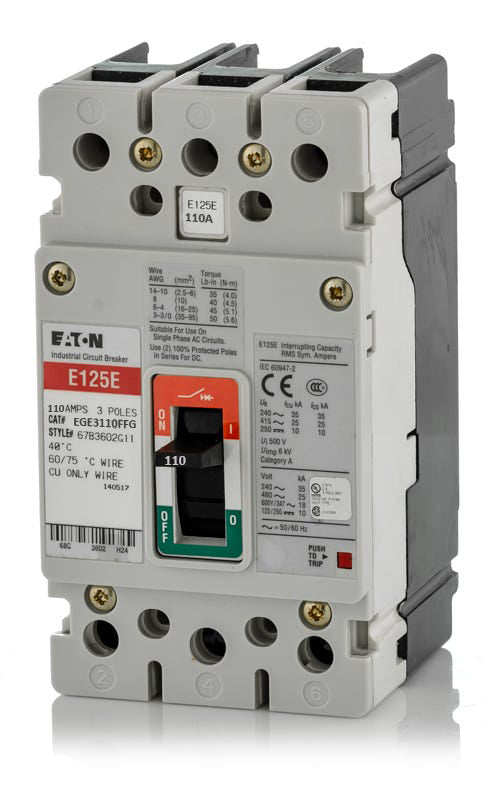

Eaton / Cutler-Hammer EGE3110FFG - 110A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGE3125FFG
125A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE3090FFG
90A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE3070FFG
70A 3 Pole Molded Case Circuit Breaker
Description
Engineered for heavy-duty applications, the 110A EGE3110FFG is a 3-pole Series G molded case circuit breaker. It provides fixed thermal and magnetic trip functions (LI) to safeguard industrial systems against overloads and short circuits. The EG-frame breaker is configured for unit mounting in Eaton Pow-R-Line 1a and 2a panelboards, switchboards, and motor control centers. Rated for 25kAIC at 480VAC, this HACR-rated breaker includes current-limiting capabilities and reverse feed support.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGE3110FFG |
| Series | EGE |
| Amperage | 110A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line 1a Panelboards, Eaton Pow-R-Line 2a Panelboards, Series G Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Terminal Shields |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
7 answersWhat panelboards and enclosures are compatible with the EGE3110FFG?
This EG-frame breaker is designed for unit mounting in Eaton Pow-R-Line 1a and 2a panelboards, Series G enclosures, switchboards, and motor control centers.
What does the FFG suffix mean in the EGE3110FFG catalog number?
The FFG suffix indicates that the breaker is equipped with a fixed thermal and fixed magnetic trip unit, and includes both line and load side lug terminals.
Are line and load lugs included with this breaker?
Yes, the EGE3110FFG comes standard with line and load lugs that accommodate wire sizes from 14 AWG to 3/0 AWG.
Is the EGE3110FFG suitable for direct current (DC) systems?
Yes, in addition to its AC ratings, this thermal-magnetic breaker is rated for use in DC circuits up to 250VDC, providing 10kAIC of interrupting capacity.
Can the EGE3110FFG be reverse fed?
Yes, this Series G thermal-magnetic breaker supports reverse feed applications, allowing power to be supplied from either the line or load side terminals.
Is this breaker rated for HVAC equipment?
Yes, the EGE3110FFG is HACR rated, making it suitable for protecting heating, air conditioning, and refrigeration circuits.
Can I adjust the trip settings on the EGE3110FFG?
No, this breaker features a fixed thermal and fixed magnetic trip unit, meaning the long-time and instantaneous trip settings cannot be adjusted in the field.
