Eaton / Cutler-Hammer EGE3090FFG Molded Case Circuit Breaker
- 90A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGE3090FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGE3090FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

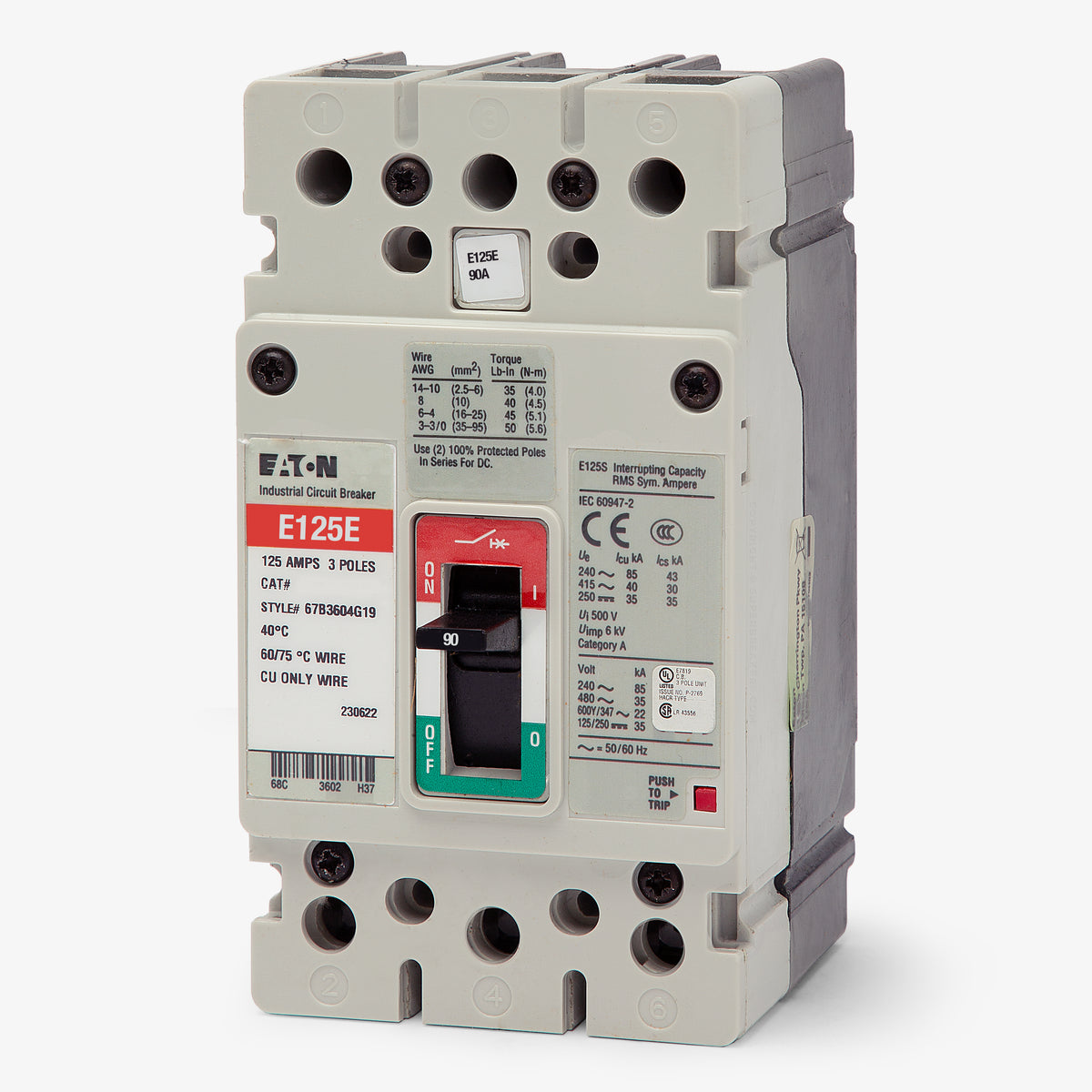

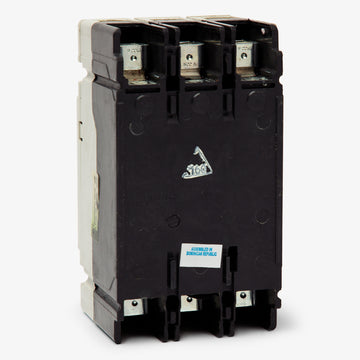

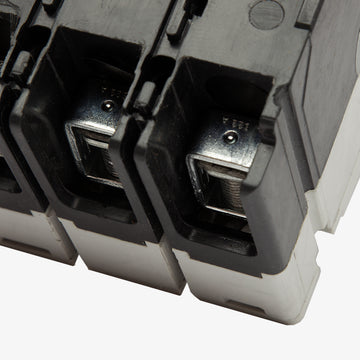

Eaton / Cutler-Hammer EGE3090FFG - 90A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGE3110FFG
110A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGE3070FFG
70A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Description
The EGE3090FFG is a 3-pole, 90A EG-frame molded case circuit breaker from Eaton's Series G family. Engineered for industrial applications, it delivers consistent thermal-magnetic protection with fixed long-time and instantaneous (LI) trip settings. Designed for unit mounting, it installs into Pow-R-Line panelboards, switchboards, and motor control centers. Rated 25kAIC at 480VAC, it features high-speed blow-open action and current-limiting capabilities. Replaced by the PDG13F0090TFFJ.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGE3090FFG |
| Series | EGE |
| Amperage | 90A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 125/250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 125/250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Pow-R-Xpress, Series G Panelboards, Switchboards, MCCs |
| Wire Gauge | 14-3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Lock |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, KEMA, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed |
Product FAQs
6 answersWhat equipment is compatible with the EGE3090FFG circuit breaker?
This EG-frame breaker is designed for installation in Eaton Pow-R-Line panelboards, Pow-R-Xpress, Series G panelboards, switchboards, and motor control centers (MCCs).
What does the FFG suffix mean in the EGE3090FFG catalog number?
In Eaton Series G nomenclature, the first F indicates a fixed thermal trip, the second F indicates a fixed magnetic trip, and the G signifies that standard line and load terminals are included.

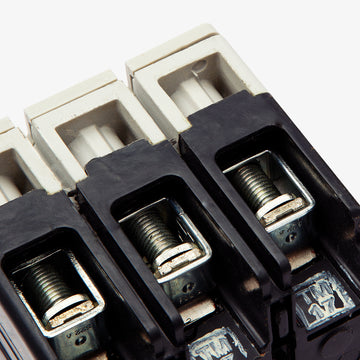

What conductor materials are compatible with the standard lugs on this breaker?
The factory-installed line and load lugs are rated to accept 14-3/0 AWG copper (Cu) or aluminum (Al) wire.
Is the EGE3090FFG suitable for reverse feed applications?
Yes, Eaton Series G thermal magnetic molded case circuit breakers feature a patented reverse loop contact design and are suitable for reverse feed installations.
Can this breaker be used in DC voltage systems?
Yes, the EGE3090FFG is rated for DC applications and provides an interrupting capacity of 10kA at 125/250VDC.
Can the trip settings on the EGE3090FFG be adjusted in the field?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip settings are factory-set and cannot be modified.
