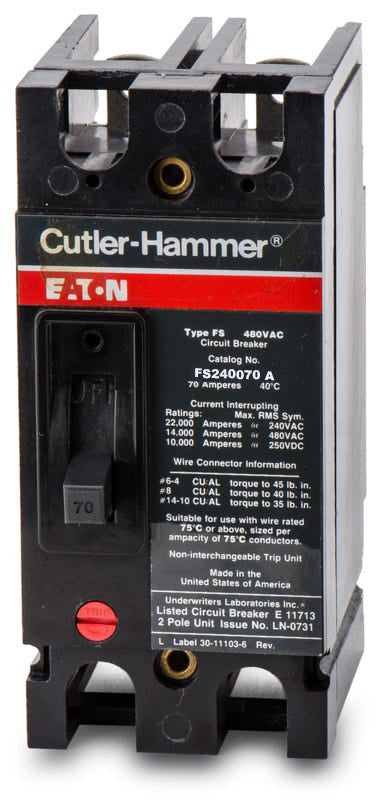

Eaton / Cutler-Hammer FS240070A Molded Case Circuit Breaker
- 70A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
FS240070A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS240070A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS240070A - 70A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
70A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS240020A
20A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Mounting securely into Series C panelboards and enclosures, the Eaton FS240070A is a 70A, 2-pole molded case circuit breaker offering proven thermal-magnetic protection. It features a bolt-on design compatible with industrial motor control centers. Delivering an interrupting capacity of 14 kAIC at 480VAC, this HACR-rated breaker ensures reliable performance. It effectively replaces legacy EHD2070 and FDB2070 models, providing a factory-sealed solution for heavy-duty distribution.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS240070A |
| Series | FS |
| Amperage | 70A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers, Enclosures |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Lugs |
| Standards | CSA C22.2 No. 5, UL 489, NEMA AB 1 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Factory Sealed |
Product FAQs
8 answersWhat equipment is compatible with the FS240070A?
This bolt-on breaker is designed for use in Eaton Series C panelboards, switchboards, motor control centers, and approved enclosures.
Can the FS240070A be reverse fed?
Yes, Eaton Series C F-Frame circuit breakers are suitable for reverse feed applications.
Is this breaker suitable for direct current (DC) systems?
Yes, in addition to its AC ratings, the FS240070A is rated for up to 250VDC with an interrupting capacity of 10 kAIC.
Are the trip settings on the FS240070A adjustable?
No, this breaker features a thermal-magnetic trip unit with fixed long-time and fixed instantaneous trip functions.
Can the FS240070A replace older Eaton or Cutler-Hammer breakers?
Yes, it serves as a direct replacement for legacy 70-amp F-Frame breakers such as the EHD2070 and FDB2070.
What type of wire can be used with the included lugs?
The factory-installed lugs accept both copper and aluminum conductors ranging from 14 AWG to 1/0 AWG.
Does this breaker provide ground fault or arc fault protection?
No, the FS240070A is a standard thermal-magnetic circuit breaker and does not include GFCI or AFCI protection.
Can I install this breaker in a standard residential load center?
No, this is a bolt-on molded case circuit breaker designed for commercial and industrial Series C equipment, not plug-on residential load centers.
