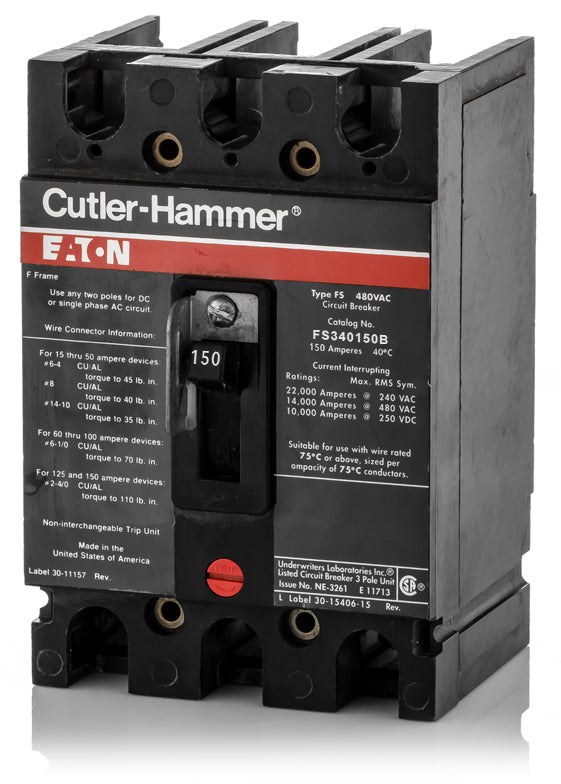

Eaton / Cutler-Hammer FS340150B Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FS340150B
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS340150B
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS340150B - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Sold out
Quantity
Eaton / Cutler-Hammer FS340150B - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS340150B |
| Series | FS |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4-4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer FS340150B - 150A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | FS |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4-4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Similar Items
Eaton / Cutler-HammerFS340125B
125A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS340070A
70A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS340060A
60A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial applications, the Eaton FS340150B is a 3-pole, 150A molded case circuit breaker. It utilizes thermal-magnetic technology to deliver precise LI overcurrent protection. This unit-mount breaker integrates into Eaton Series C panelboards, switchboards, and motor control centers. For future upgrades, note that this model is replaced by the FDB3150. Delivering a 14 kAIC interrupt rating at 480VAC, it includes a factory-sealed trip unit and standard line/load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS340150B |
| Series | FS |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 4-4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersCan I install the FS340150B in older Westinghouse or Cutler-Hammer panels?
Yes. Because Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines, this Series C F-frame breaker is backward compatible with legacy Cutler-Hammer and Westinghouse panelboards, switchboards, and motor control centers that accept F-frame breakers.
How is the FS340150B mounted inside an electrical enclosure?
This is a unit-mount, feed-thru circuit breaker. It bolts directly to the chassis or mounting pan rather than plugging onto a busbar, making it suitable for standalone enclosures, switchboards, and motor control centers.
Does the FS340150B require a separate lug kit for installation?
No, this breaker includes factory-installed line and load lugs. The terminals are ready to accept 4 AWG to 4/0 AWG copper or aluminum wiring right out of the box.
What is the current replacement model for the FS340150B?
The Eaton FDB3150 is the direct replacement for this breaker. It shares the exact same F-frame dimensions, 150A rating, and 14 kAIC at 480VAC interrupting capacity.
Is the FS340150B rated for use in direct current (DC) applications?
Yes. In addition to its AC ratings, this thermal-magnetic breaker is rated for 250VDC systems, providing a 10 kAIC interrupting capacity for DC control panels or battery applications.
Does this breaker provide adjustable overcurrent protection?
No, the FS340150B features a non-interchangeable, fixed thermal-magnetic trip unit. Both the long-time overload and instantaneous short-circuit trip points are factory set and cannot be adjusted in the field.
