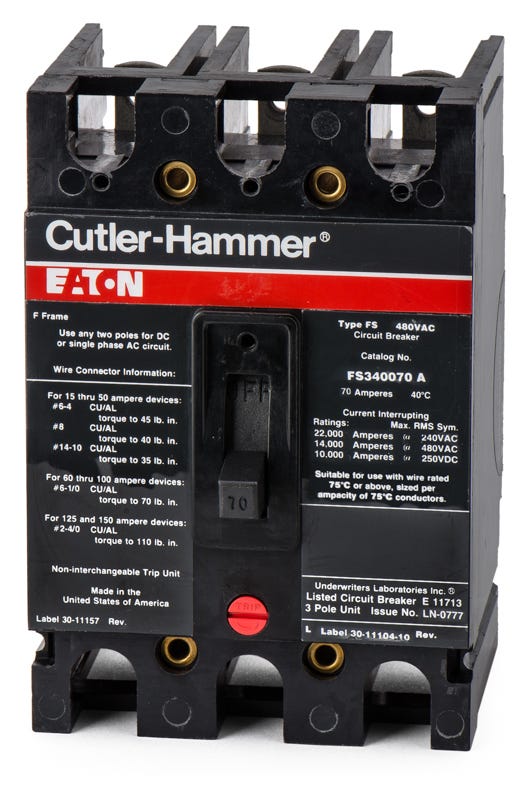

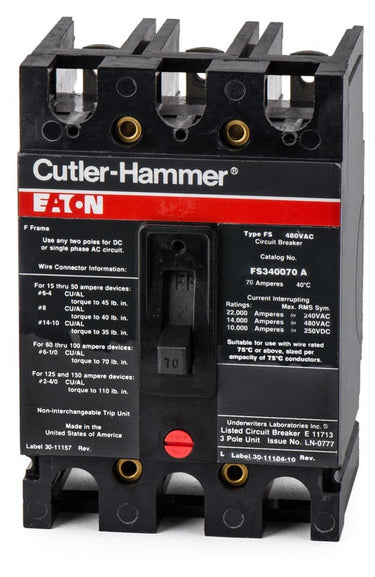

Eaton / Cutler-Hammer FS340070A Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FS340070A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS340070A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer FS340070A - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
Eaton / Cutler-HammerFS320060A
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS340060A
60A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerFS340050A
50A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial use, the Eaton FS340070A is a 70A molded case circuit breaker from the Series C family. It delivers dependable protection for commercial distribution systems. This unit mount MCCB installs into Eaton panelboards and enclosures. It serves as an exact substitute for legacy EHD3070 and FDB3070 breakers, simplifying facility maintenance. Equipped with a non-interchangeable thermal-magnetic trip unit, it provides fixed LI protection and a 14kAIC rating at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS340070A-R |
| Series | FS |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 14kA @ 480VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Series C Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Terminals |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
7 answersWhat equipment is the FS340070A circuit breaker designed to fit?
This Series C F-Frame breaker is compatible with Eaton Series C panelboards, switchboards, and industrial enclosures. It is not designed for standard residential load centers.
Can I use the FS340070A in a standard residential breaker box?
No, this is a commercial and industrial molded case circuit breaker. It will not fit in standard residential load centers that require miniature plug-on or bolt-on breakers.
Does the FS340070A plug onto a busbar or bolt into place?
This is a unit mount circuit breaker, meaning it bolts directly to the mounting pan or chassis of the enclosure rather than plugging onto a busbar.
What wire gauge is required for the terminals on this 70-amp breaker?
The factory-installed lugs accommodate wire sizes from 14 AWG up to 1/0 AWG. Ensure your conductors are properly sized for a 70A load according to the National Electrical Code.
Can the trip settings on the FS340070A be adjusted in the field?
No. This breaker is equipped with a thermal-magnetic trip unit that has fixed long-time and fixed instantaneous (LI) settings, meaning the trip curve cannot be modified.
Is the Eaton FS340070A the same as the Cutler-Hammer or Westinghouse version?
Yes. Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. An Eaton FS340070A is the exact same form, fit, and function as the legacy Cutler-Hammer or Westinghouse breakers sharing this catalog number.
What are the safety requirements for installing this Series C breaker?
Installation must be performed by a licensed electrician. Always de-energize the panelboard or switchboard completely and verify zero voltage before mounting or wiring the breaker to prevent arc flash and shock hazards.
