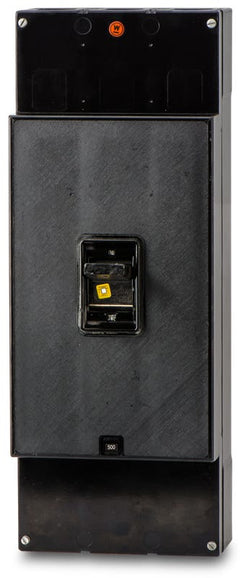

Eaton / Cutler-Hammer LG3500 Molded Case Circuit Breaker
- 500A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
LG3500
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
LG3500
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer LG3500 - 500A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
500A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTKMA836500WL
500A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
Description
Tailored for standby diesel generators, the LG3500 is a 3-pole, 500A molded case circuit breaker from Eaton's Series G family. This device features a fixed thermal-magnetic trip unit with a low magnetic pickup to deliver reliable long-time and instantaneous (LI) protection. The reverse-feed capable LG-frame breaker mounts into Eaton Pow-R-Line panelboards, switchboards, and engine generator assemblies. It provides a 14 kAIC rating at 480VAC and is HACR rated for HVAC applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | LG |
| Amperage | 500A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 14kA @ 480VAC, 10kA @ 600VAC |
| Frame Type | L |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Switchboards, Engine Generators |
| Wire Gauge | (2) 3/0 AWG - 350 kcmil (Al/Cu) |
| Max Wire | 350 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs Included (TA602LD) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, Generator Protection |
Product FAQs
6 answersCan the LG3500 circuit breaker be reverse fed?
Yes, this L-frame breaker is suitable for reverse feed applications.
Which Eaton panelboards accept the LG3500 breaker?
This breaker is designed for use in Eaton Pow-R-Line panelboards, switchboards, and engine generator applications that accept L-frame breakers.
What lug kit is standard for the LG3500?
The TA602LD lug kit is standard for this breaker, accepting two 3/0 AWG to 350 kcmil copper or aluminum conductors per phase.
Are the trip units on the LG3500 interchangeable?
No, the LG3500 features a fixed thermal and fixed magnetic trip unit that cannot be swapped in the field.
Is the LG3500 a 100% rated circuit breaker?
No, standard LG3500 breakers are 80% rated. Breakers requiring a 100% continuous rating typically feature a different catalog number suffix.
What internal accessories can be field installed on the LG3500?
Standard L-frame internal accessories, including shunt trips, auxiliary switches, and undervoltage releases, can be field installed in the accessory pockets of this breaker.
