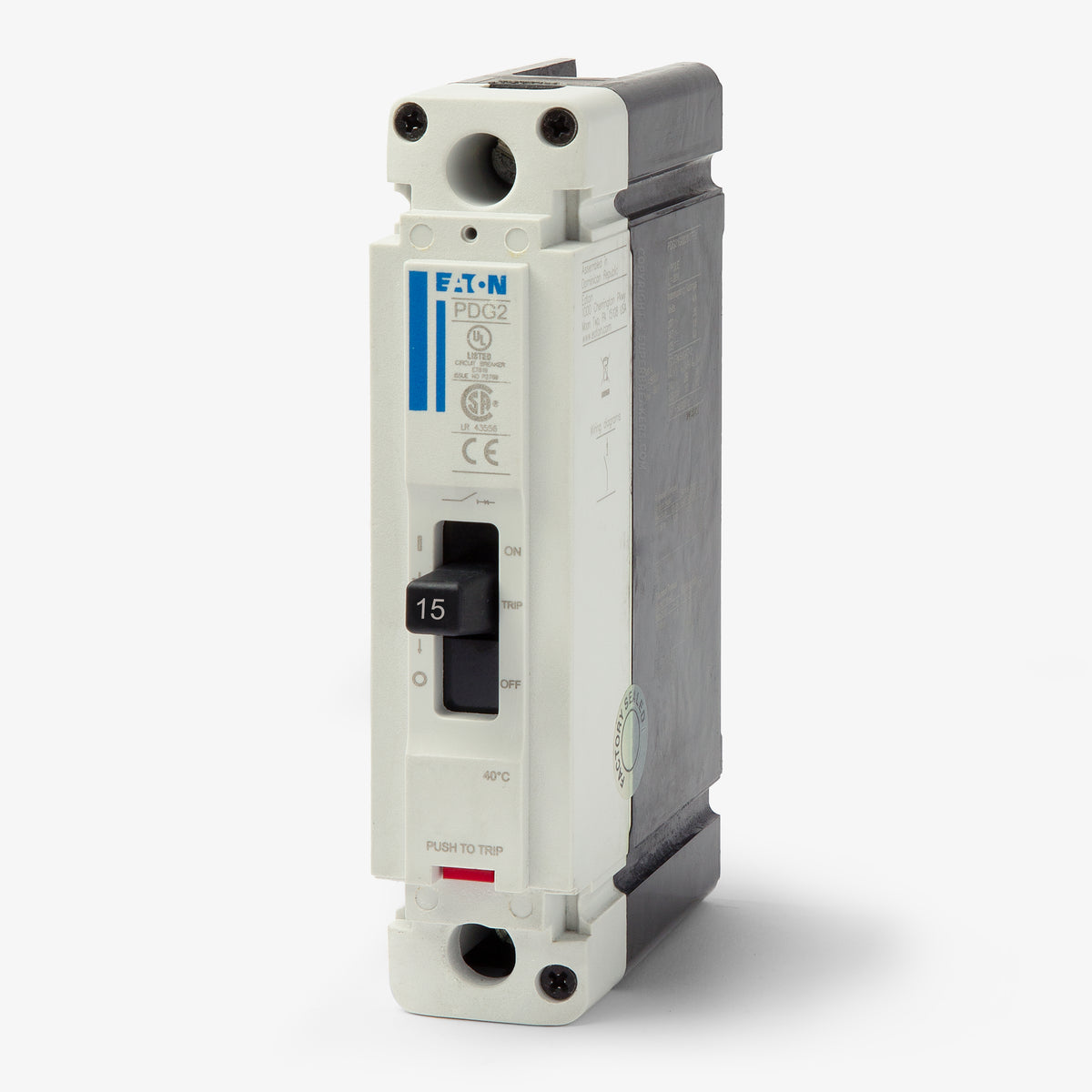

Eaton / Cutler-Hammer PDG21F0015TFFL Molded Case Circuit Breaker
- 15A
- 1 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG21F0015TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG21F0015TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG21F0015TFFL - 15A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG21G0015TFFL
15A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21M0015TFFL
15A 1 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG21F0020TFFL
20A 1 Pole Molded Case Circuit Breaker
Description
Delivering robust long-time and instantaneous protection, the Eaton PDG21F0015TFFL is a 1-pole, 15A molded case circuit breaker from the Power Defense family. It is designed for commercial and industrial applications. This Frame 2 MCCB mounts into compatible Eaton Power Defense panelboards and enclosures. It also serves as a seamless replacement for discontinued EGB1015FFG units. Featuring a 35kAIC rating at 240VAC, this current-limiting breaker includes load-side lugs and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 125VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
9 answersWhich Eaton equipment is compatible with the PDG21F0015TFFL breaker?
This Frame 2 breaker is engineered specifically for installation in Eaton Power Defense panelboards, switchboards, and enclosures.

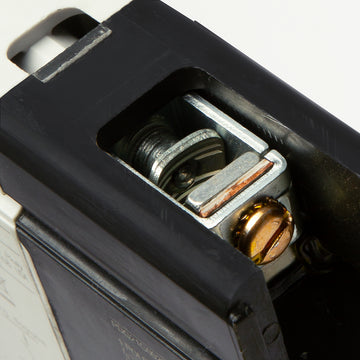

What wire gauges and materials are supported by the load-side lugs on this breaker?
The included load-side terminals accommodate both aluminum and copper conductors ranging from 14 AWG up to 1/0 AWG.
What do the "TFFL" letters signify in the PDG21F0015TFFL catalog number?
"TFF" indicates a thermal-magnetic trip unit with fixed thermal and fixed magnetic settings. The "L" specifies that standard lugs are included on the load side.
Can the PDG21F0015TFFL replace older Cutler-Hammer breakers?
Yes, this Power Defense Frame 2 breaker serves as a direct, seamless replacement for the discontinued Series G EGB1015FFG model.
Is the PDG21F0015TFFL rated for direct current (DC) systems?
Yes, in addition to its AC ratings, this breaker is certified for 125VDC applications with a 10kAIC interrupting capacity.
Does this breaker snap in or bolt on to the chassis?
The PDG21F0015TFFL utilizes a bolt-on connection for secure, vibration-resistant panel mounting.
What type of protection does the "LI" trip function provide?
The LI designation means the breaker provides Long-Time protection against sustained overloads and Instantaneous protection against short circuits.
Is this breaker HACR rated for HVAC applications?
Yes, the PDG21F0015TFFL is HACR rated, making it suitable for heating, air conditioning, and refrigeration equipment protection.

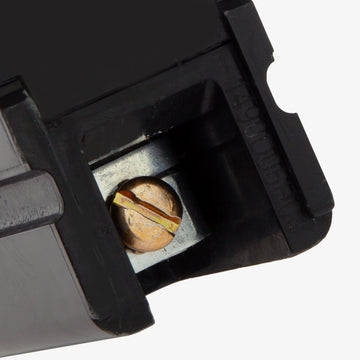

Does this breaker include lugs for both the line and load sides?
Because it is a bolt-on breaker designed for panelboards, the line side connects directly to the busbar. Standard lugs are provided on the load side only.
