Eaton / Cutler-Hammer PDG22F0020TFFL Molded Case Circuit Breaker
- 20A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0020TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0020TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0020TFFL - 20A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0020TFFJ
20A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0020TFFL
20A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0020TFFL
20A 2 Pole Molded Case Circuit Breaker
Description
Built for robust power distribution, the Eaton PDG22F0020TFFL 20A, 2-pole MCCB operates within the advanced Power Defense Frame 2 family. It is designed to safeguard commercial, industrial, and marine electrical circuits. Designed for panel mounting, this breaker integrates seamlessly into Eaton enclosures and panelboards. It acts as an exact substitute for legacy FDB2020 models and includes load-side lugs (PDG2X2T100).Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Terminal Shields, DIN Rail Adapter |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X2T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, RoHS, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
6 answersDoes this breaker replace legacy Series C F-Frame models?
Yes. The Power Defense Frame 2 is the direct replacement for legacy Series C F-Frame breakers, including the FDB2020. Note that updated Eaton mounting hardware is required when upgrading from Series C to Power Defense.

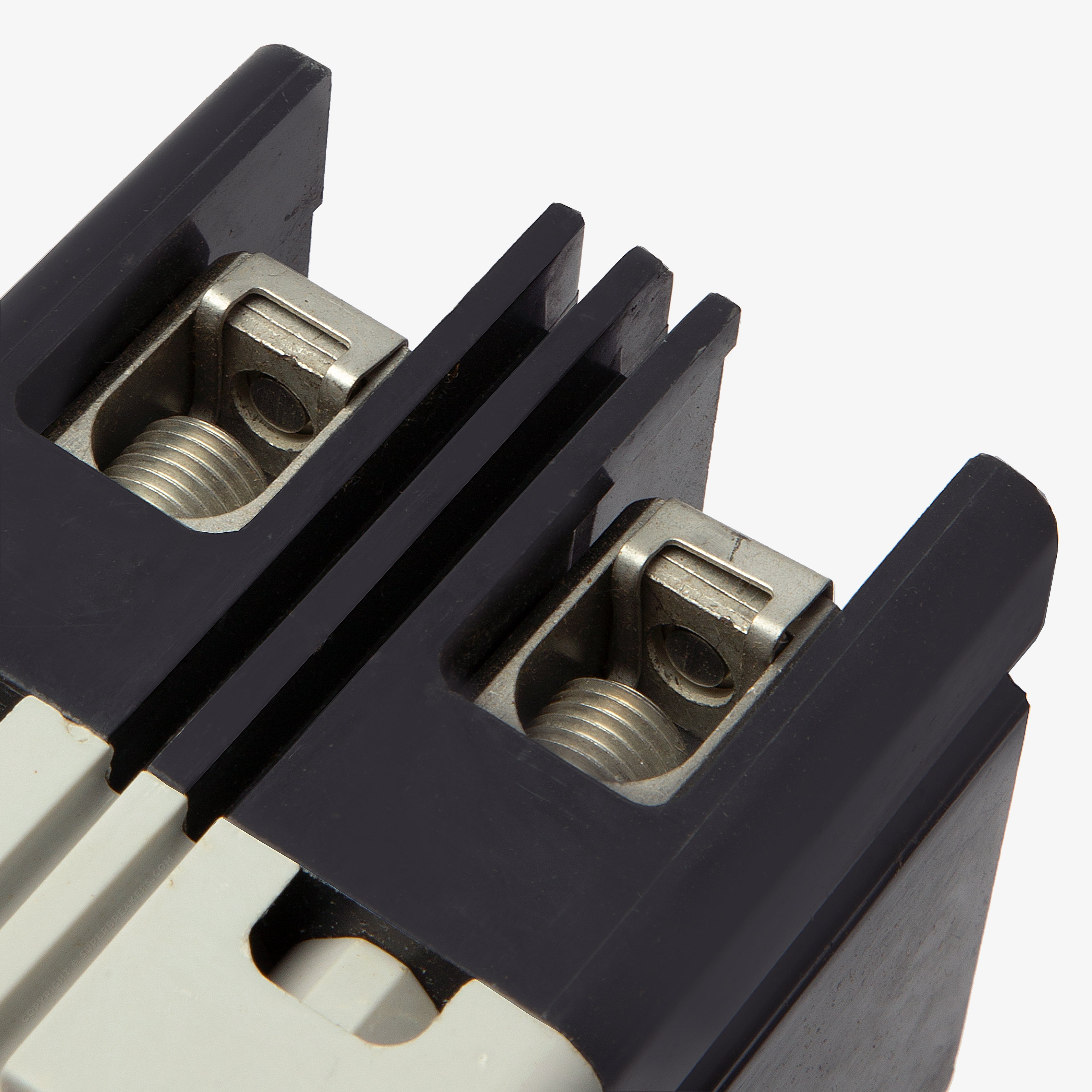

What wire sizes are accepted by the lugs on the PDG22F0020TFFL?
The standard lugs on this breaker accept 14 AWG to 1/0 AWG wire. They are rated for use with both aluminum and copper conductors.
Is the PDG22F0020TFFL rated for direct current (DC) applications?
Yes, this breaker is rated for up to 250VDC with a 10kA interrupting capacity, making it suitable for specific DC control and distribution circuits.
What enclosures and panelboards are compatible with this breaker?
The PDG22F0020TFFL is designed specifically for use with Eaton Power Defense enclosures and panelboards.
What does the TFFL suffix in the catalog number indicate?
In the Eaton Power Defense catalog number, TFFL indicates a Thermal Magnetic trip unit with Fixed thermal and Fixed magnetic settings, equipped with standard Lugs.
How is this breaker mounted in a panel?
This is a bolt-on panel mount circuit breaker. It secures directly to the panelboard chassis using bolts, ensuring a stable and reliable connection under load.
