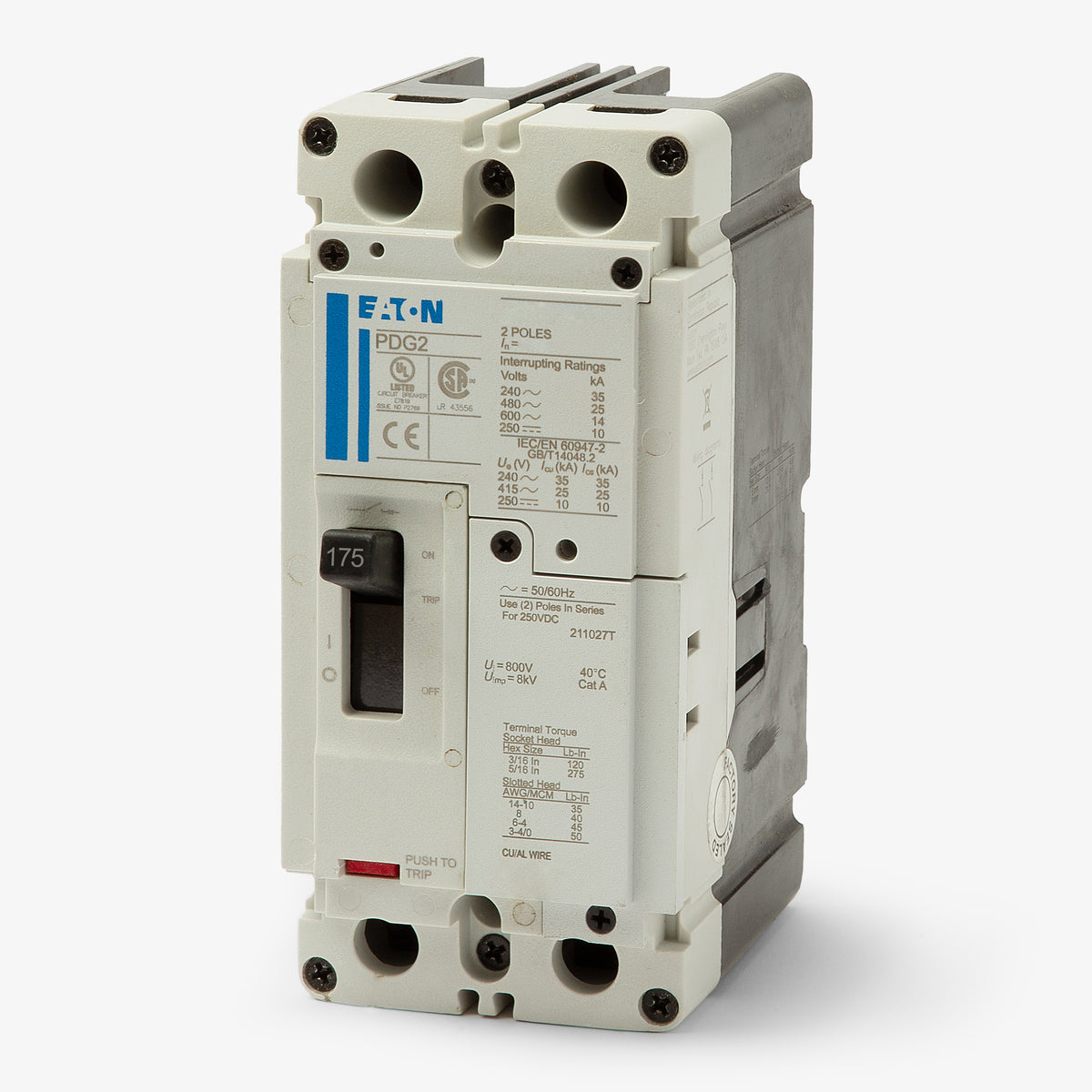

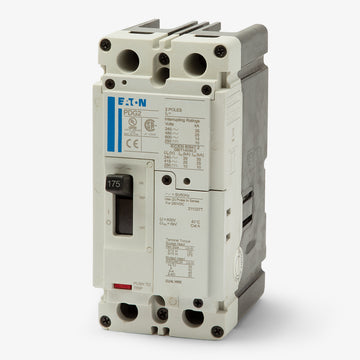

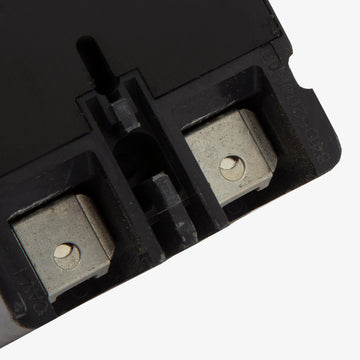

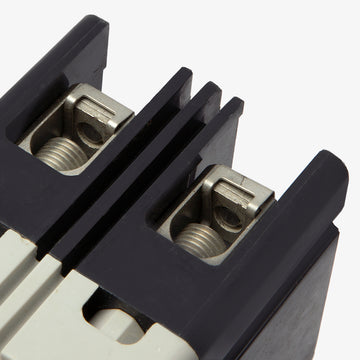

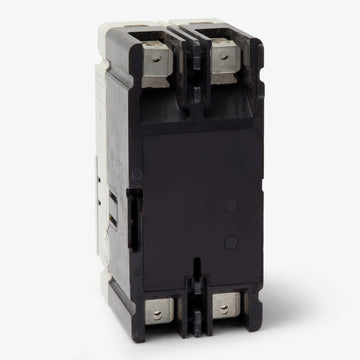

Eaton / Cutler-Hammer PDG22F0175TFFJ Molded Case Circuit Breaker
- 175A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0175TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0175TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0175TFFJ - 175A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22F0200TFFL
200A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0200TFFJ
200A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0200TFFL
200A 2 Pole Molded Case Circuit Breaker
Description
A drop-in replacement for legacy FDB2175 models, the Eaton PDG22F0175TFFJ brings modern Power Defense technology to existing infrastructure. This 2-pole, 175A MCCB provides essential long-time and instantaneous (LI) protection through its fixed thermal-magnetic trip unit. Designed for commercial power distribution, it mounts securely into Eaton panelboards and enclosures. It includes standard line and load terminals for straightforward wiring. It boasts a robust 35kAIC rating at 240VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG22F0175TFFJ |
| Series | PDG2 |
| Amperage | 175A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Motor Operator, Terminal Shields, Handle Lock |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG2X2TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
5 answersCan the Eaton PDG22F0175TFFJ be used to replace older Series C breakers?
Yes, the PDG22F0175TFFJ is a Power Defense Frame 2 breaker that serves as a drop-in replacement for legacy 175A Series C F-Frame models, such as the FDB2175.
Which panelboards and enclosures are compatible with the PDG22F0175TFFJ?
This breaker is designed for use with Eaton Power Defense panelboards, switchboards, and compatible enclosures.
What wire sizes are accepted by the standard lugs on the PDG22F0175TFFJ?
The standard line and load lugs accommodate 4 AWG through 4/0 AWG aluminum or copper conductors. Ensure proper torque specifications are followed during installation.
What does the LI trip function code mean on this breaker?
The LI designation indicates that the thermal-magnetic trip unit provides Long-Time and Instantaneous protection. Both the thermal and magnetic trip settings are fixed on this model.
Is the PDG22F0175TFFJ rated for use in DC power systems?
Yes, in addition to its AC ratings, this breaker is rated for 250VDC applications with a 10kAIC interrupting capacity.
