Eaton / Cutler-Hammer PDG22F0200TFFL Molded Case Circuit Breaker
- 200A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22F0200TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22F0200TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG22F0200TFFL - 200A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22G0200TFFJ
200A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0200TFFL
200A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0200TFFL
200A 2 Pole Molded Case Circuit Breaker
Description
Rated for 35kAIC at 240V, the Eaton PDG22F0200TFFL is a globally rated, current-limiting molded case circuit breaker from the Power Defense Frame 2 family. It provides dependable long-time and instantaneous (LI) protection for commercial, industrial, and marine electrical systems. This 2-pole, 200A unit mounts into Eaton enclosures and serves as an exact substitute for the legacy FDB2200. It comes equipped with standard load-only terminals, streamlining integration into existing setups.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 200A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Enclosures and Panelboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment, Rotary Handle |
|---|---|
| Accessories | Standard Terminals Load Only |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Globally Rated |
Product FAQs
7 answersCan the PDG22F0200TFFL replace older Eaton Series C circuit breakers?
Yes, the Power Defense Frame 2 (PDG2) series is the direct modern replacement for legacy Eaton Series C F-Frame breakers, such as the FDB2200. Updated Eaton mounting hardware is required when installing this breaker in existing legacy equipment.
What does the first F in the PDG22F0200TFFL catalog number indicate?
The first F in the catalog number designates the interrupting capacity. For the Power Defense Frame 2 series, this indicates a standard rating of 25kAIC at 480VAC.
What do the letters TFFL mean in this Eaton part number?
The TFFL suffix specifies the trip unit and terminal configuration. T stands for a Thermal Magnetic trip unit, the two Fs indicate Fixed Thermal and Fixed Magnetic trip settings, and L denotes standard lug terminals.
What enclosures and panelboards are compatible with this 200A breaker?
The PDG22F0200TFFL is designed specifically for use with Eaton Power Defense enclosures and panelboards.

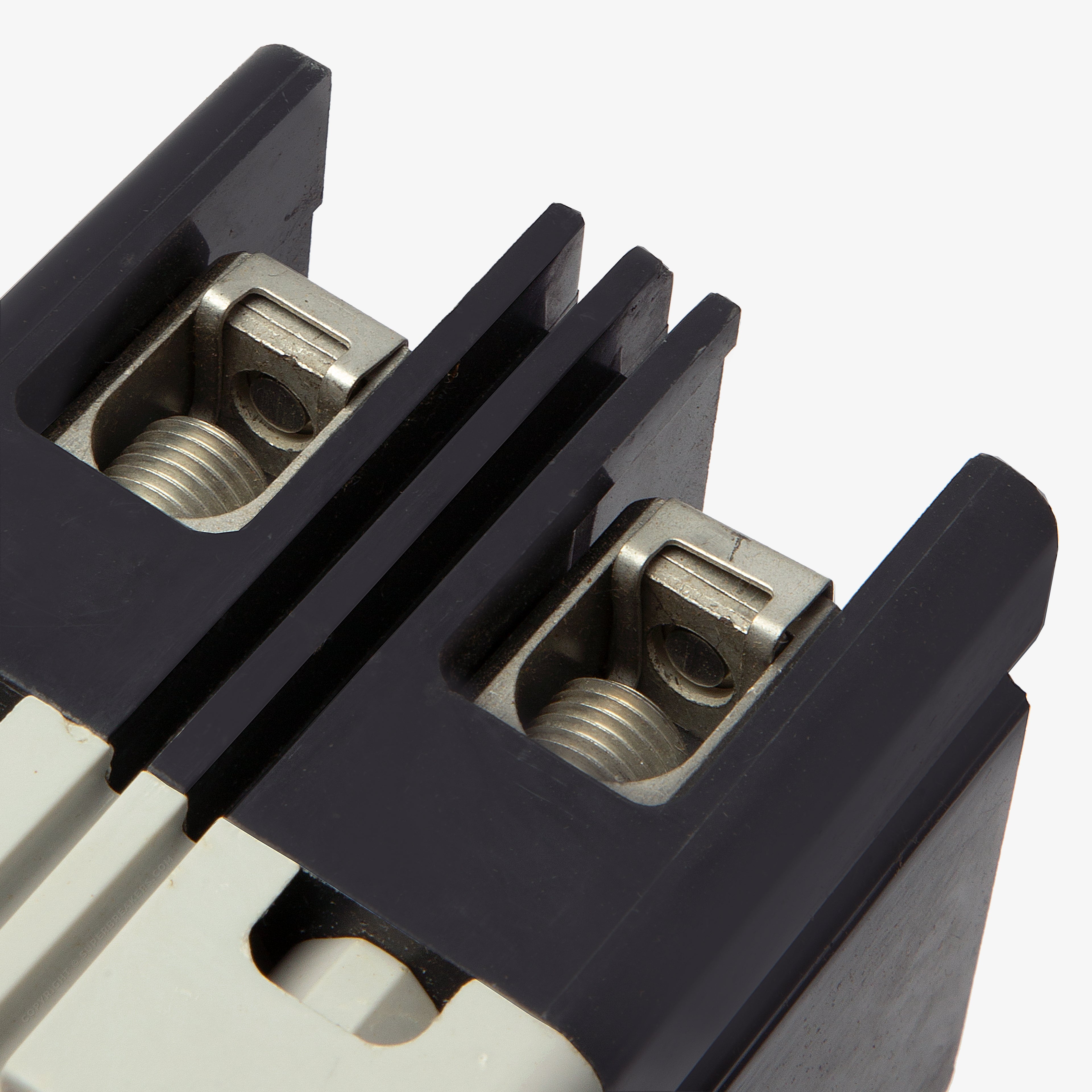

What wire sizes are accepted by the standard lugs on this breaker?
The standard lugs accept wire gauges from 4 AWG to 4/0 AWG and are compatible with both aluminum and copper conductors.
Is this molded case circuit breaker rated for direct current (DC) applications?
Yes, in addition to its AC voltage ratings, this breaker is rated for up to 250VDC with an interrupting capacity of 10kAIC.
What type of protection does the thermal magnetic trip unit provide?
The fixed thermal and fixed magnetic trip unit provides long-time and instantaneous (LI) protection for commercial and industrial electrical systems.
