Eaton / Cutler-Hammer PDG22G0225TFFJ Molded Case Circuit Breaker
- 225A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG22G0225TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG22G0225TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

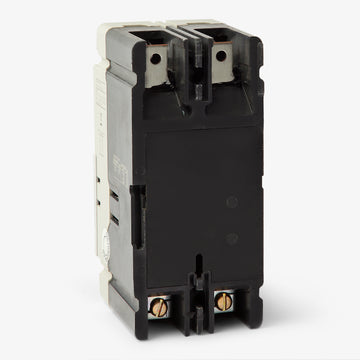

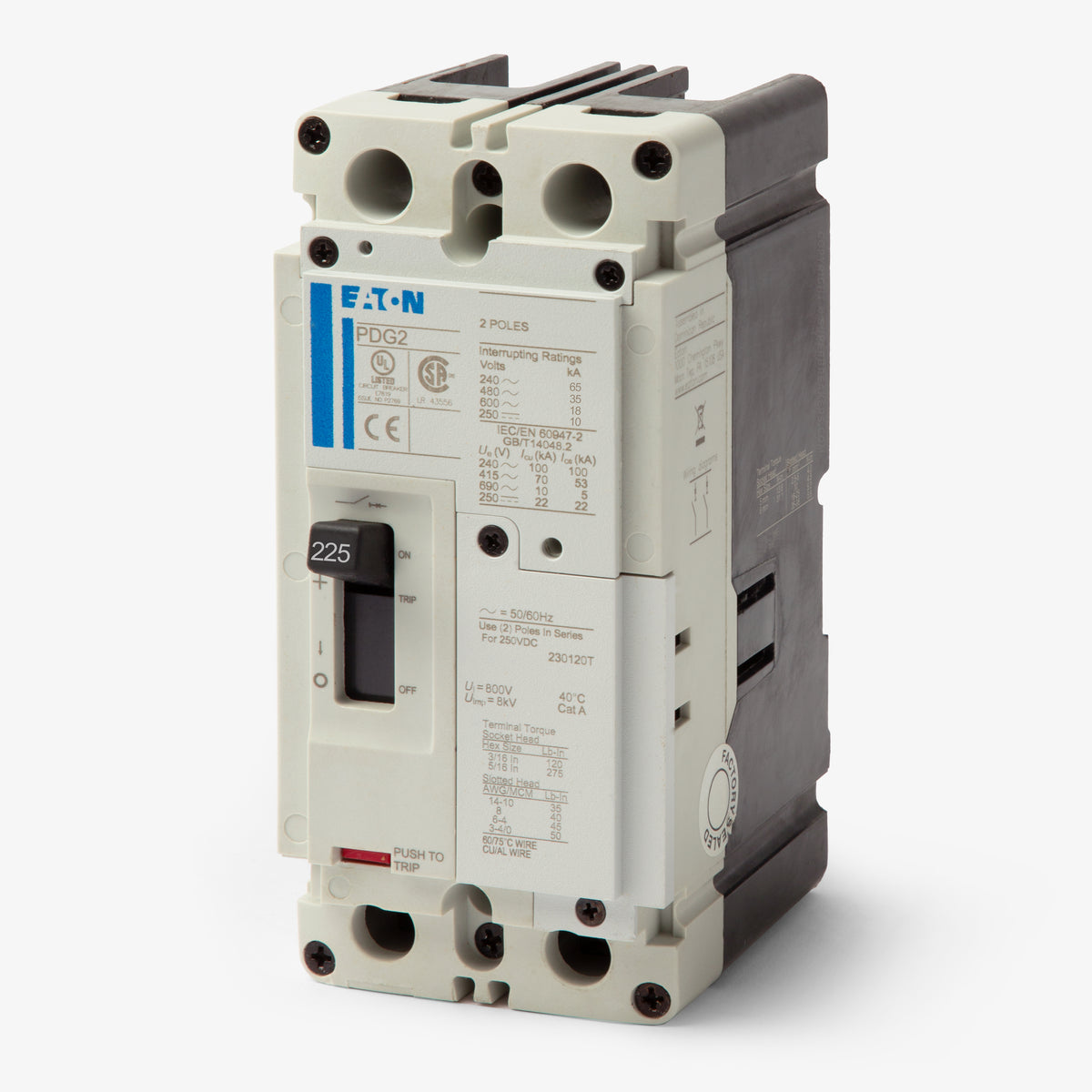

Eaton / Cutler-Hammer PDG22G0225TFFJ - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG22M0225TFFL
225A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0200TFFJ
200A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22G0200TFFL
200A 2 Pole Molded Case Circuit Breaker
Description
The PDG22G0225TFFJ is a Frame 2 molded case circuit breaker from Eaton's globally rated Power Defense series. Built for commercial and industrial applications, it provides reliable long-time and instantaneous (LI) protection for 240V to 600V electrical systems. This 2-pole, 225A unit installs into compatible Eaton panelboards and switchboards, serving as a direct replacement for legacy EGE2225FFG and FD2225 breakers. It features a 35kAIC rating at 480V and standard line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG22G0225TFFJ |
| Series | PDG2 |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 4 AWG - 4/0 AWG (Al/Cu) |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Rotary Handle |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Common Trip, Trip-Free Mechanism, Reverse Feed |
Product FAQs
7 answersCan I use aluminum wire with the PDG22G0225TFFJ?
Yes, the standard line and load lugs on this breaker are dual-rated for both aluminum (Al) and copper (Cu) conductors ranging from 4 AWG to 4/0 AWG.
Are the trip settings adjustable on the PDG22G0225TFFJ?
No, this specific model features a fixed thermal and fixed magnetic trip unit. Both the long-time (L) overload and instantaneous (I) short-circuit protection levels are factory-set and cannot be adjusted in the field.
What panelboards accept the PDG22G0225TFFJ breaker?
This 2-pole breaker is designed for installation in Eaton Power Defense panelboards and switchboards that accommodate Frame 2 (PDE) molded case circuit breakers.
Can this Eaton Power Defense breaker be used in DC circuits?
Yes, the PDG22G0225TFFJ is rated for direct current applications up to 250VDC, where it provides a 10kAIC interrupting capacity.
What does the "G" in the PDG2 prefix of the catalog number indicate?
The "G" indicates that this Power Defense breaker is globally rated. It is designed to meet multiple international standards, including UL, CSA, IEC, and CCC requirements.

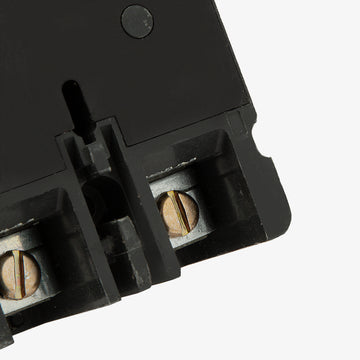

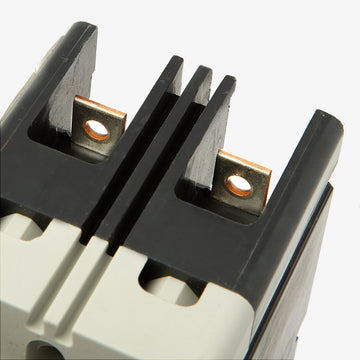

Does this breaker come with line and load terminals?
Yes, the PDG22G0225TFFJ includes standard line and load lugs factory-installed for panel mount applications.
Does the PDG22G0225TFFJ include ground fault protection?
No, this breaker features a standard thermal-magnetic (LI) trip unit for overload and short-circuit protection. It does not include integrated ground fault protection.
