Eaton / Cutler-Hammer PDG23F0125TFFL Molded Case Circuit Breaker
- 125A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23F0125TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23F0125TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23F0125TFFL - 125A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23G0125TFFL
125A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0125TFFJ
125A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0125TFFJ
125A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial environments, this 125A Frame 2 MCCB provides robust circuit protection within the Power Defense globally rated platform. It mounts into Eaton enclosures and switchboards, offering a seamless upgrade path for older EGE3125FFG and FDB3125 installations. Rated at 25kAIC at 480VAC, this 3-pole breaker utilizes a fixed thermal-magnetic trip unit and is configured specifically with load-side terminals only, accommodating custom line-side connections.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 125A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 4/0 AWG |
| Max Wire | 4/0 AWG |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release, Padlock Attachment, Motor Operator, Rotary Handle, Terminal Shields, DIN Rail Adapter |
|---|---|
| Accessories | Load Side Lugs Included (PDG2X3TA225) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -25C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Global Ratings |
Product FAQs
6 answersIs the Eaton PDG23F0125TFFL a direct replacement for legacy Series C breakers?
Yes, the Power Defense Frame 2 series replaces older Series C FD and HFD frame breakers. They share the same electrical applications and current ratings, but require updated Power Defense mounting hardware for installation due to a different physical mounting arrangement.
Are the lugs on the PDG23F0125TFFL interchangeable with older Eaton breakers?
Yes, the terminals on Power Defense Frame 2 (PD2) breakers are fully interchangeable with legacy Eaton Series C F-frame terminals.
Are the thermal and magnetic trip thresholds adjustable on the PDG23F0125TFFL?
No, this specific model uses a fixed thermal and fixed magnetic trip unit. The long-time (L) and instantaneous (I) protection settings are factory-set and cannot be adjusted in the field.

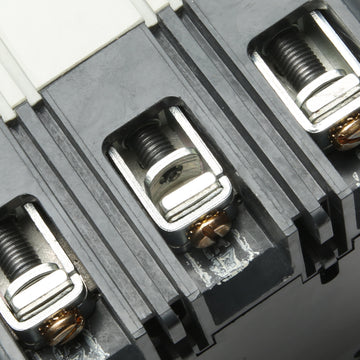

Does the PDG23F0125TFFL come with load lugs, and what wire size do they accept?
Yes, this complete breaker includes standard load lugs that accommodate wire gauges ranging from 4 AWG to 4/0 AWG.
Can this 3-pole Power Defense breaker be used in DC electrical systems?
Yes, in addition to its standard AC ratings, the thermal-magnetic trip unit supports DC applications up to 250VDC with a 10kAIC interrupting rating.
Which Eaton distribution equipment is compatible with the PDG23F0125TFFL?
This bolt-on molded case circuit breaker is designed specifically for integration into Eaton Power Defense panelboards, switchboards, and approved enclosures.
