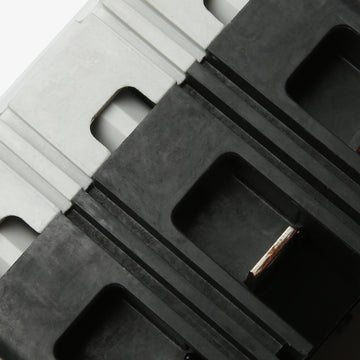

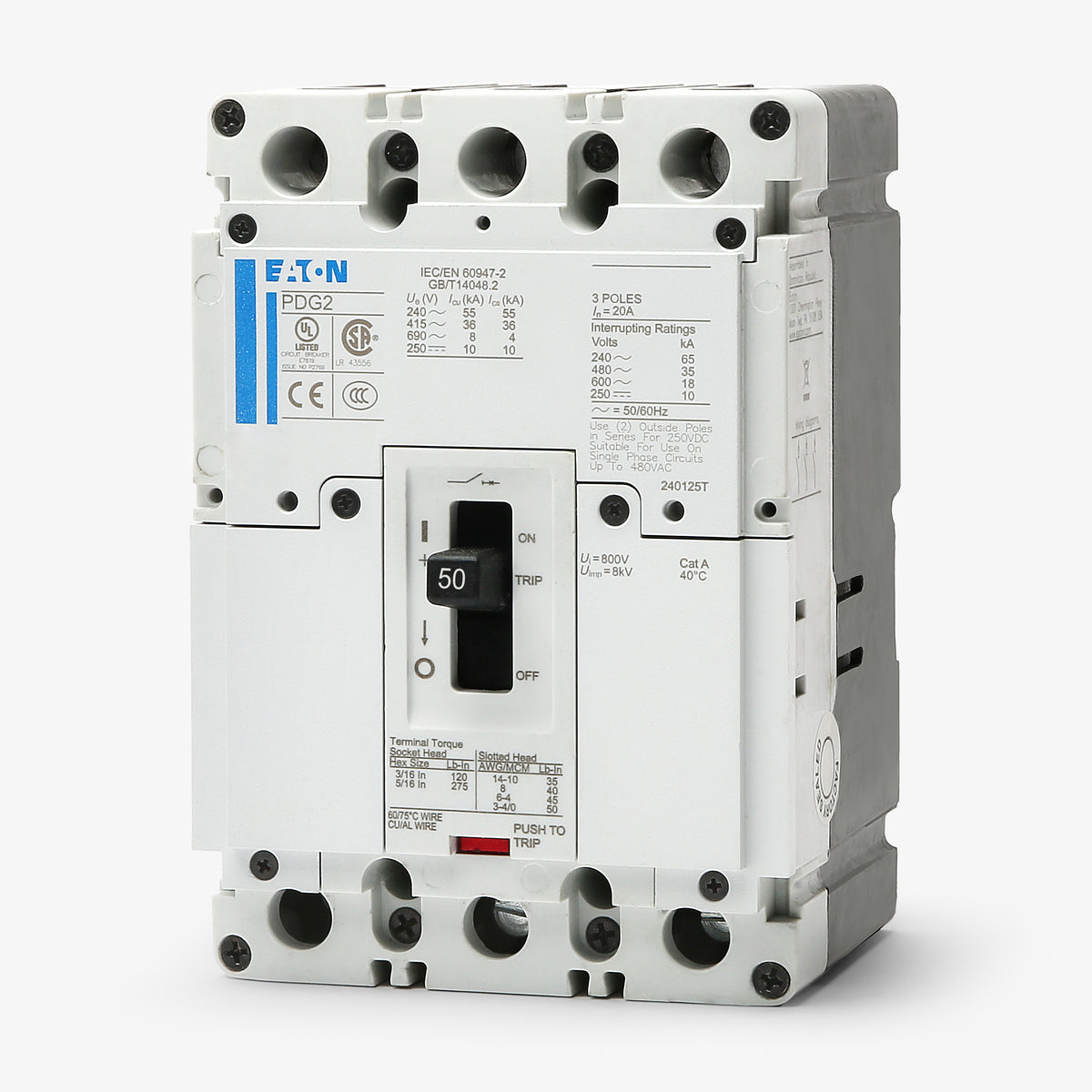

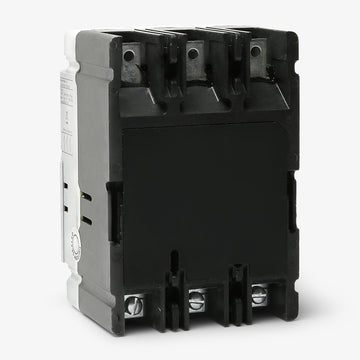

Eaton / Cutler-Hammer PDG23G0050TFFL Molded Case Circuit Breaker
- 50A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG23G0050TFFL
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG23G0050TFFL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG23G0050TFFL - 50A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG23M0050TFFJ
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23M0050TFFL
50A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG23G0045TFFL
45A 3 Pole Molded Case Circuit Breaker
Description
The PDG23G0050TFFL is a 50A, 3-pole molded case circuit breaker belonging to Eaton's advanced Power Defense Frame 2 family. It ensures reliable overcurrent and short-circuit protection for commercial facilities. This panel-mount MCCB is engineered for Eaton Power Defense panelboards and switchboards. It acts as a direct cross-reference for legacy EGE3050FFG and FD3050 breakers. Equipped with a fixed thermal-magnetic trip unit, it provides 35kAIC at 480VAC and includes standard load-side lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG2 |
| Amperage | 50A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Rotary Handle, Motor Operator |
|---|---|
| Accessories | Standard Terminals Load Only (PDG2X3T100) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, RoHS Compliant |
Product FAQs
6 answersCan the PDG23G0050TFFL directly replace legacy Eaton Series C circuit breakers?
Yes. The Power Defense Frame 2 (PDG2) platform is Eaton's direct replacement for legacy Series C FD and HFD molded case circuit breakers. They share the same electrical applications and current ratings, but require updated Power Defense mounting hardware for installation.
Are legacy Series C handle mechanisms compatible with this Power Defense Frame 2 breaker?
No. Power Defense PDG2 breakers feature different cover geometry and through-cover accessory panels. You must use handle mechanisms specifically designed for the Power Defense Frame 2 platform.

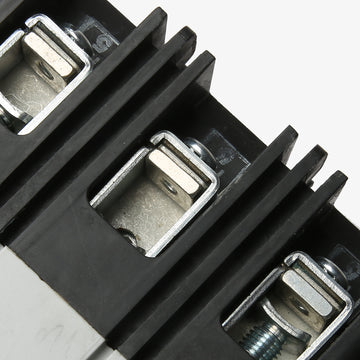

What wire sizes and conductor materials are supported by the standard lugs?
The standard lugs on this breaker accept wire gauges ranging from 14 AWG to 1/0 AWG. They are rated for use with both aluminum and copper (Al/Cu) conductors.
What do the letters "TFF" indicate in the PDG23G0050TFFL catalog number?
The "TFF" designation specifies the trip unit configuration. It indicates a Thermal Magnetic trip unit with Fixed Thermal and Fixed Magnetic settings, delivering standard long-time and instantaneous (LI) protection.
Which panelboards are compatible with the PDG23G0050TFFL?
This bolt-on molded case circuit breaker is specifically designed for installation in Eaton Power Defense panelboards and switchboards.
Is the Power Defense series replacing the Eaton Series G circuit breakers?
Yes. Eaton is phasing out the legacy Series G molded case circuit breakers in favor of the Power Defense platform. The PDG2 series provides the same core functionality while updating the frame with modern performance capabilities.
