Eaton / Cutler-Hammer PDG33F0400TFAJ Molded Case Circuit Breaker
- 400A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG33F0400TFAJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG33F0400TFAJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

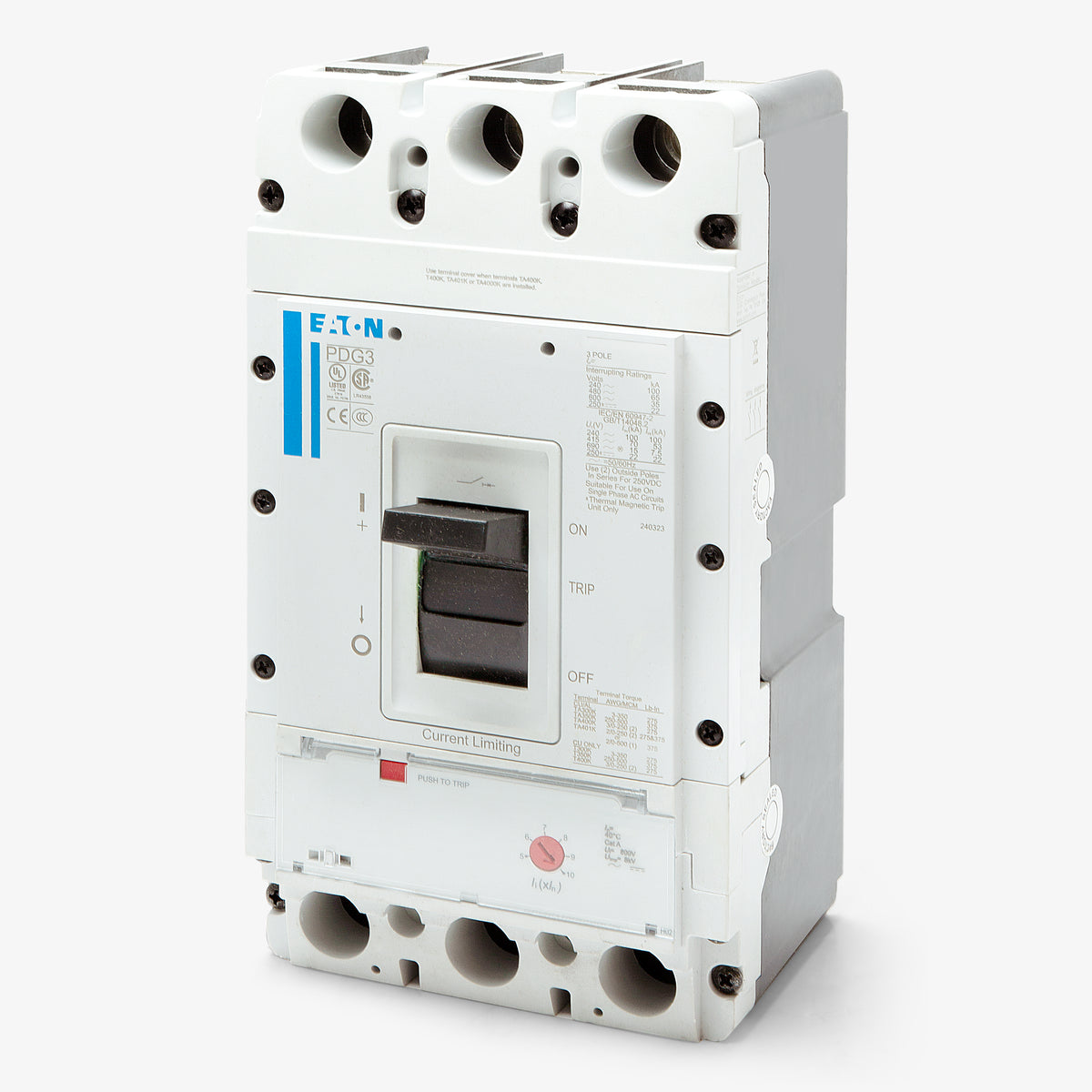

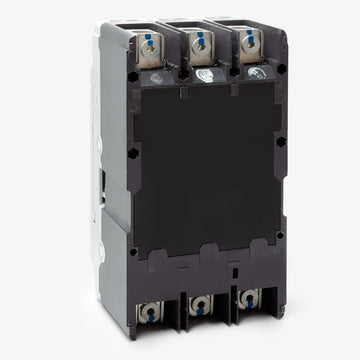

Eaton / Cutler-Hammer PDG33F0400TFAJ - 400A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG33M0400TFAJ
400A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33F0350TFAJ
350A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG33G0350TFAJ
350A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton PDG33F0400TFAJ provides robust thermal-magnetic protection. This 3-pole, 400A molded case circuit breaker belongs to the globally rated Power Defense Frame 3 family. It mounts into Eaton Pow-R-Line panelboards and serves as a functional substitute for legacy LGE3400 and KD3400 breakers. Standard lugs are included. Rated at 25 kAIC at 480VAC, this HACR-rated unit features a fixed thermal and adjustable magnetic (LI) trip.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG33F0400TFAJ |
| Series | PDG3 |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 35kA @ 240VAC, 25kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | 3 |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Power Defense Frame 3 Panelboards, Eaton Pow-R-Line Panelboards |
| Wire Gauge | (1) 2 AWG - 500 kcmil or (2) 3/0 AWG - 250 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator, Handle Mechanism |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CE, CSA, IEC, UL, RoHS |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated |
Product FAQs
4 answersCan the PDG33F0400TFAJ replace older Eaton 400A circuit breakers?
Yes, this Power Defense Frame 3 breaker is a functional substitute for legacy Eaton Series C K-frame breakers, such as the KD3400, and Series G LG-frame breakers, like the LGE3400. Upgraded mounting hardware is typically required when retrofitting into existing enclosures.
What are the wire size limits for the standard lugs on the PDG33F0400TFAJ?

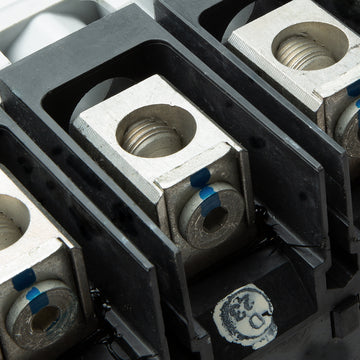

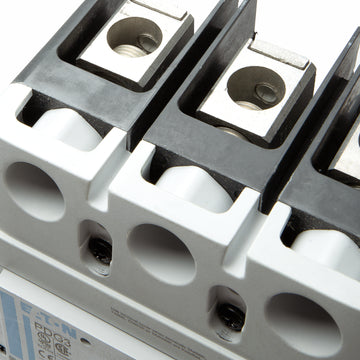

The factory-installed feed-thru lugs accommodate either a single conductor from 2 AWG to 500 kcmil or dual conductors from 3/0 AWG to 250 kcmil. The terminals are dual-rated for both aluminum and copper wiring.
What does the adjustable magnetic setting on this breaker control?
The adjustable magnetic dial controls the instantaneous trip function, allowing licensed electricians to fine-tune the short-circuit response threshold. The thermal overload protection (long-time trip) remains fixed at the 400A rating.
Is this breaker suitable for use in Pow-R-Line distribution equipment?
Yes, the PDG33F0400TFAJ is fully compatible with Eaton Pow-R-Line panelboards, as well as the newer Power Defense Frame 3 panelboard systems.
