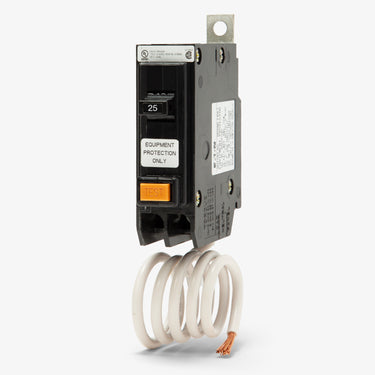

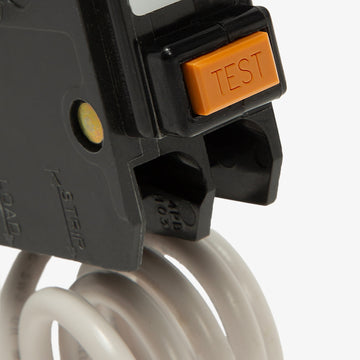

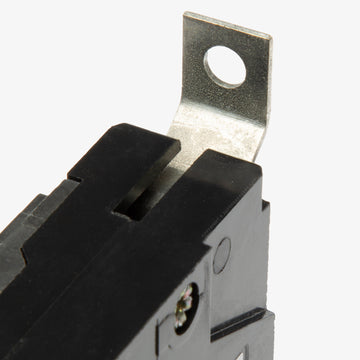

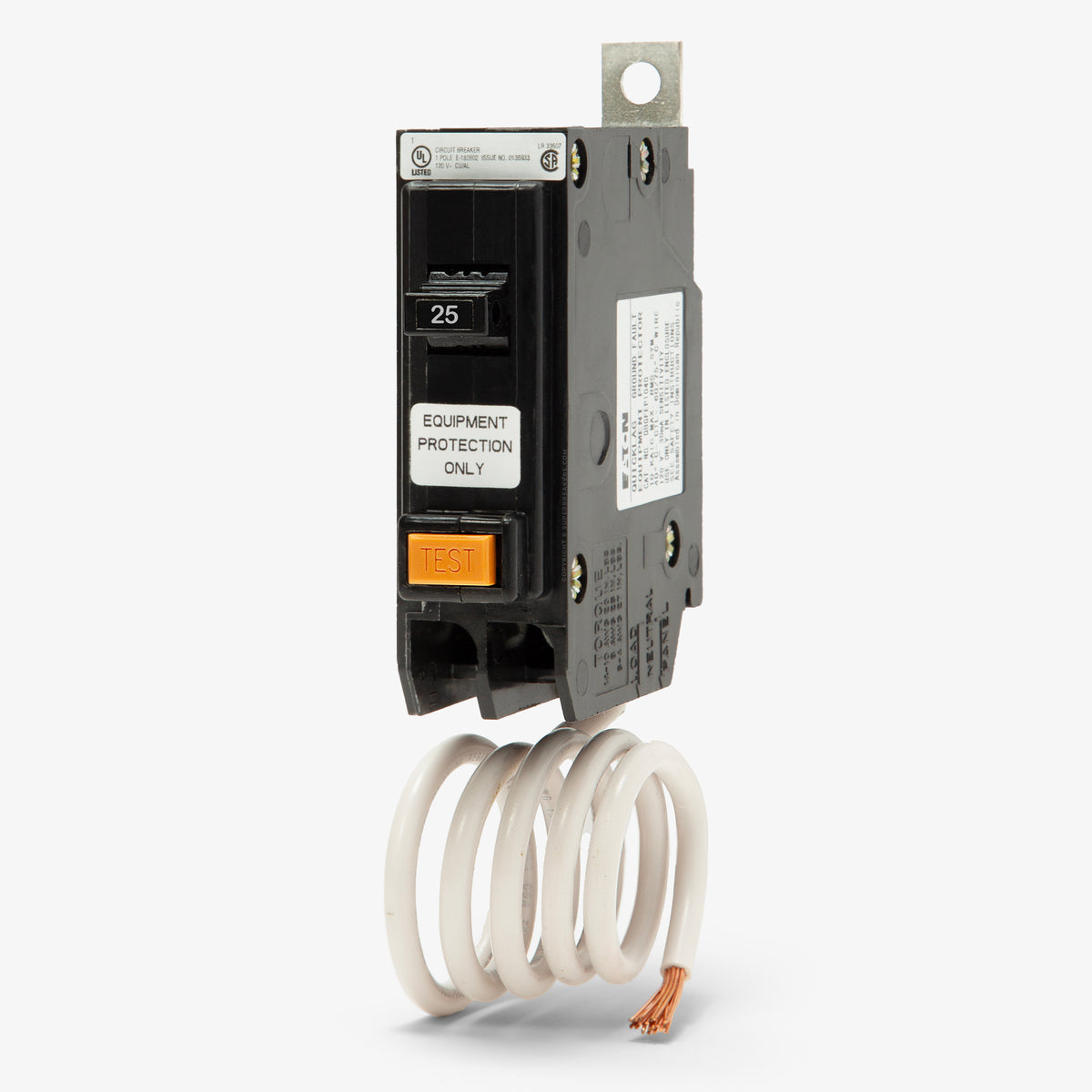

Eaton / Cutler-Hammer QBGFEP1025 GFEP Miniature Circuit Breaker
- 25A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBGFEP1025
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGFEP1025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBGFEP1025 - 25A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBGFEP1020
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP1020W1
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP1015
15A GFEP Miniature Circuit Breaker
Description
Built to handle 25-amp loads, this Quicklag equipment protection breaker monitors circuits for 30mA ground fault leakage. It mounts securely into Eaton Pow-R-Line panelboards using a standard bolt-on connection, making it ideal for commercial and industrial environments. Operating with fixed thermal-magnetic trip elements, the device provides 10kAIC interrupting capacity at 120VAC while preventing nuisance tripping on equipment circuits.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGFEP1025 |
| Series | QBGFEP |
| Amperage | 25A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Auxiliary Switch, Bell Alarm, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the QBGFEP1025?
This breaker is designed for use in Eaton Pow-R-Line panelboards that accept bolt-on BAB or QB frame circuit breakers.
What is the ground fault trip sensitivity of the QBGFEP1025?
This GFEP (Ground Fault Equipment Protection) breaker features a 30mA trip sensitivity. It is calibrated to protect equipment, such as heat trace cables and machinery, rather than for personnel safety.
How is the neutral connection made on this breaker?
The QBGFEP1025 includes a pigtail neutral wire that must be connected directly to the panelboard neutral bar to ensure proper ground fault sensing.
Can I use the QBGFEP1025 to protect bathroom or kitchen receptacles?
No. This is a Ground Fault Equipment Protection (GFEP) breaker with a 30mA trip threshold. Bathroom and kitchen receptacles require a Class A Ground Fault Circuit Interrupter (GFCI) with a 5mA trip threshold for personnel safety.
What does the LIG trip function indicate on this breaker?
LIG stands for Long-Time, Instantaneous, and Ground Fault. It means the breaker provides thermal overload protection, magnetic short-circuit protection, and equipment-level ground fault monitoring.
What is the difference between the QBGFEP and QPGFEP breaker series?
The QBGFEP series features a bolt-on mounting configuration designed for Eaton Pow-R-Line panelboards. The QPGFEP series features a plug-on mounting configuration.
