Eaton / Cutler-Hammer QBGFEP1015 GFEP Miniature Circuit Breaker
- 15A
- 1 Pole

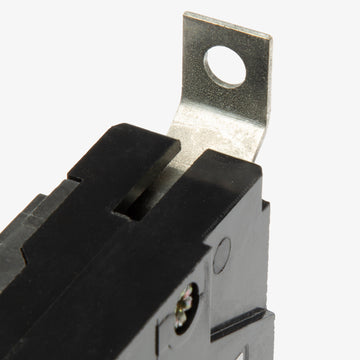

- Bolt-On
Eaton / Cutler-Hammer
QBGFEP1015
GFEP Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGFEP1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

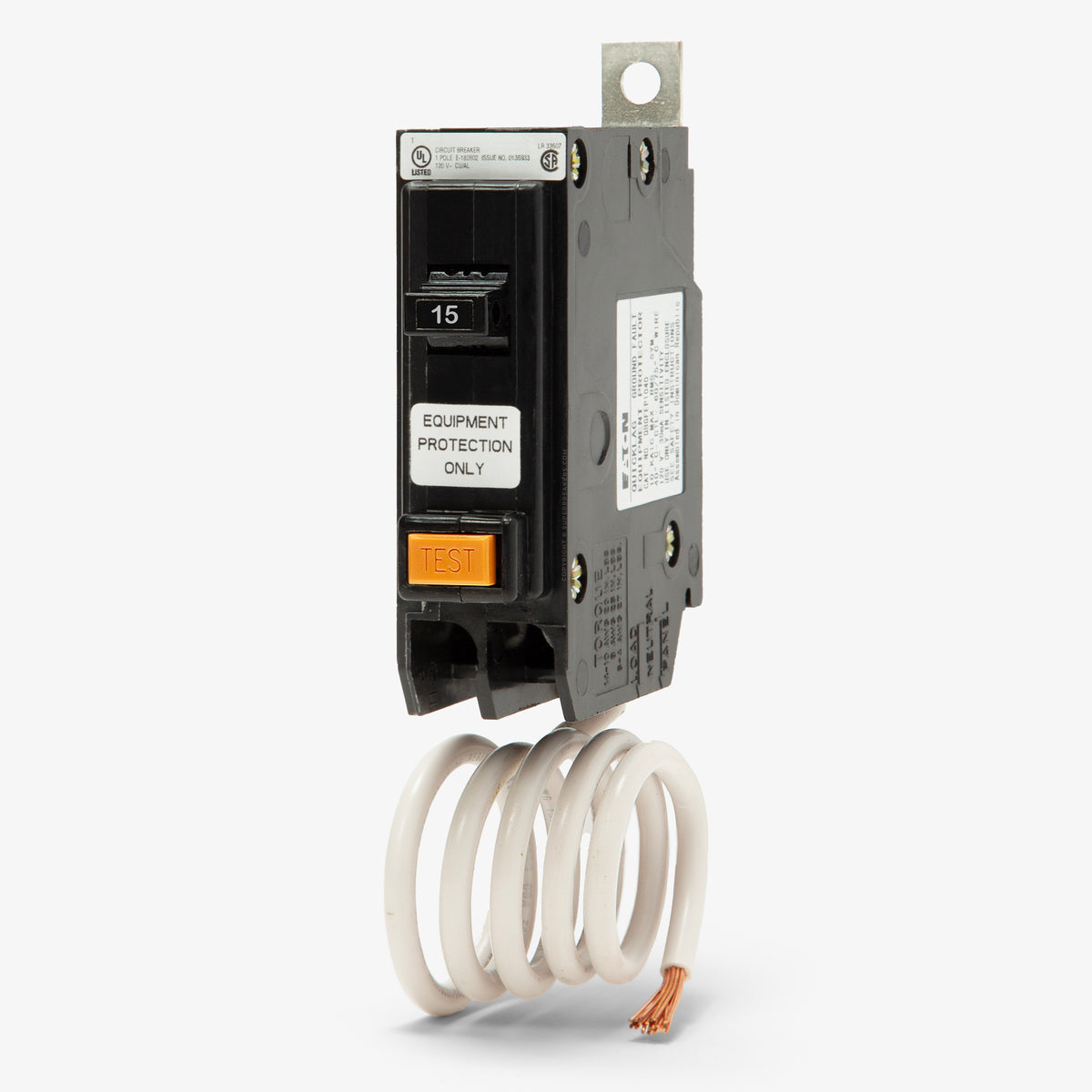

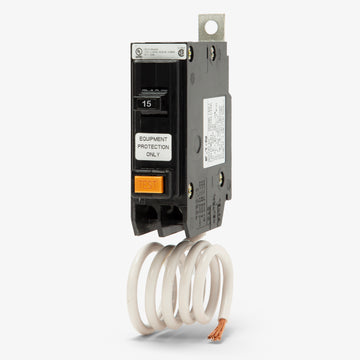

Eaton / Cutler-Hammer QBGFEP1015 - 15A GFEP Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBGFEP1020
20A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP1030
30A GFEP Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFEP1040
40A GFEP Miniature Circuit Breaker
Description
Part of the Quicklag family, the Eaton QBGFEP1015 is a 15A, single-pole equipment protection breaker. It safeguards machinery by detecting low-level ground faults on 120VAC circuits. The bolt-on configuration ensures a robust connection within Eaton Pow-R-Line panelboards. It features box lug terminals accommodating 14-4 AWG wiring. With a 30mA trip sensitivity, this GFEP breaker is strictly for equipment defense, distinguishing it from 5mA personnel GFCI units. It has a 10kAIC rating.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGFEP1015 |
| Series | QBGFEP |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFEP |
|---|---|
| Available Options | Auxiliary Switch, Bell Alarm |
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, UL 1053, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Product FAQs
4 answersWhat is the difference between this GFEP breaker and a standard GFCI?
The QBGFEP1015 is a Ground Fault Equipment Protector (GFEP) with a 30mA trip sensitivity. It is designed to protect machinery and equipment, such as heat trace cables or pumps, from line-to-ground faults. Standard GFCI breakers have a 5mA trip threshold and are strictly required for personnel protection.
Which panelboards accept the QBGFEP1015 circuit breaker?
This bolt-on breaker is designed exclusively for Eaton Pow-R-Line panelboards that accept BAB frame breakers. It will not fit standard residential load centers or plug-on panels.
How do I wire the neutral connection on the QBGFEP1015?

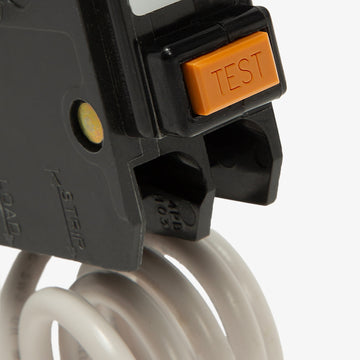

This breaker features a pigtail neutral wire. You must connect the white pigtail directly to the panelboard neutral bar for the ground fault detection circuitry to function correctly. The load neutral connects to the breaker itself.
What does the LIG trip function code mean on this breaker?
LIG indicates that the thermal-magnetic trip unit includes Long-Time (overload), Instantaneous (short circuit), and Ground Fault protection.
