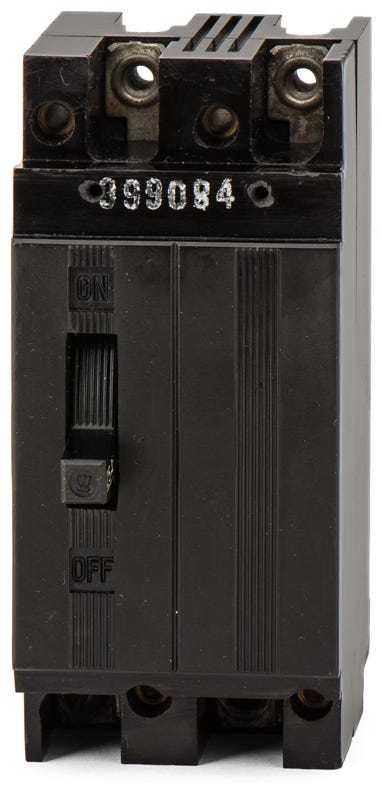

Eaton / Westinghouse E2025 Molded Case Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Eaton / Westinghouse
E2025
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
E2025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse E2025 - 25A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items

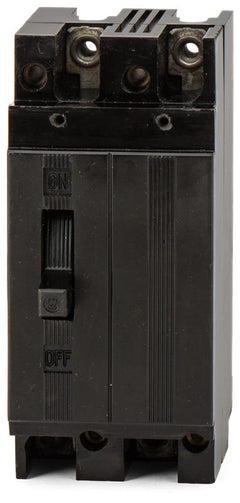

15A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
70A 2 Pole Molded Case Circuit Breaker
Description
Built to support legacy commercial applications, this 2-pole, 25A molded case circuit breaker delivers reliable 240VAC power distribution. It maintains the classic Westinghouse E-frame form factor. The unit mounts into older Westinghouse, Eaton Pow-R-Line, and AB De-Ion panelboards via a secure bolt-on connection. It provides a seamless cross-reference for the modern EHD2025 substitute. Delivering a 7kAIC rating, it utilizes fixed thermal-magnetic trip functions to defend against overloads.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | E2025 |
| Series | E |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 7kA @ 240VAC, 5kA @ 125/250VDC |
| Frame Type | E |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Eaton Pow-R-Line Panelboards, AB De-Ion Panels |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Standard Interrupting Capacity |
Product FAQs
6 answersWhich panelboards accept the E2025 circuit breaker?
The E2025 is a legacy Westinghouse E-frame breaker designed to bolt into older Westinghouse panelboards, AB De-Ion panels, and compatible Eaton Pow-R-Line panelboards.
Is the E2025 rated for use in direct current (DC) applications?
Yes, in addition to its standard AC rating, this breaker is rated for 125/250VDC systems, providing an interrupting capacity of 5kAIC for DC applications.
What wire sizes and materials are compatible with the E2025 terminals?
The included lugs accept both copper (Cu) and aluminum (Al) conductors, accommodating wire sizes from 14 AWG up to 1/0 AWG.
Does the E2025 snap into the panel or require bolted connections?
This is a bolt-on circuit breaker. It must be mechanically fastened to the panelboard busbar using bolted connections, which provides a secure contact for commercial and industrial applications.
Are the thermal and magnetic trip settings adjustable on the E2025?
No, the thermal-magnetic trip unit on this breaker is fully fixed. Both the long-time (overload) and instantaneous (short circuit) trip functions are factory set and cannot be adjusted in the field.
Why is the E2025 listed under both Eaton and Westinghouse brands?
Eaton acquired the Westinghouse electrical distribution business in 1994. As a result, legacy Westinghouse E-frame breakers like the E2025 are often branded, supported, or cross-referenced under the Eaton and Cutler-Hammer names.
