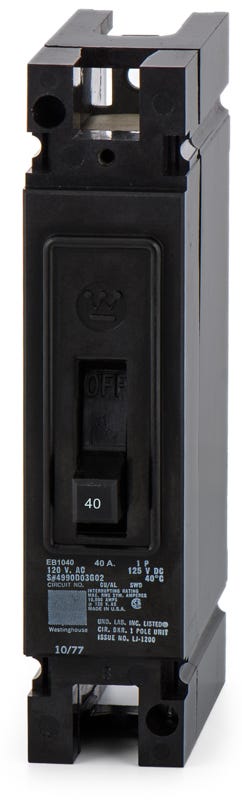

Eaton / Westinghouse EB1040 Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
Eaton / Westinghouse
EB1040
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EB1040
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EB1040 - 40A 1 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
40A 2 Pole Molded Case Circuit Breaker
40A 3 Pole Molded Case Circuit Breaker
Description
Maintaining legacy power infrastructure is straightforward with the Eaton EB1040. This 1-pole, 40A molded case circuit breaker provides essential thermal-magnetic protection for 120VAC commercial and industrial applications. Equipped with load side lugs, this bolt-on breaker mounts into Westinghouse F-Frame and Eaton Pow-R-Line C panelboards. It is a recognized substitute for the EHD1040. The E-Frame device delivers a 10kAIC interrupting capacity.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EB1040-R |
| Series | EB |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 125VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC, 5kA @ 125VDC |
| Frame Type | EB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse F-Frame Panelboards |
| Wire Gauge | 14-1/0 AWG (Al/Cu) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
6 answersWhat panelboards are compatible with the EB1040?
As an E-Frame device, this breaker is engineered to bolt directly onto the bus of Eaton Pow-R-Line C panelboards and legacy Westinghouse F-Frame distribution panels.
Can the EB1040 be used as a substitute for an EHD1040?
Yes, the EB1040 is a recognized direct replacement for the EHD1040. Both are E-Frame devices that share the same physical dimensions and bolt-on mounting configuration.
What type of wire connections does the EB1040 support?
The breaker includes a load-side lug that accepts 14 to 1/0 AWG aluminum or copper wire. The line side uses a bolt-on connection to attach directly to the panelboard bus.
Is the EB1040 suitable for direct current applications?
Yes, this breaker is dual-rated for alternating current and direct current. It can safely interrupt faults in 125VDC systems, making it suitable for specific industrial DC control circuits.
Are the trip settings on the EB1040 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. Both the long-time and instantaneous trip functions are factory set and cannot be field adjusted.
Can the EB1040 be locked out for maintenance?
Yes, the toggle on this breaker is compatible with standard single-pole lockout devices, including Brady 65396 and 51254 models, to ensure compliance with lockout-tagout safety procedures.
