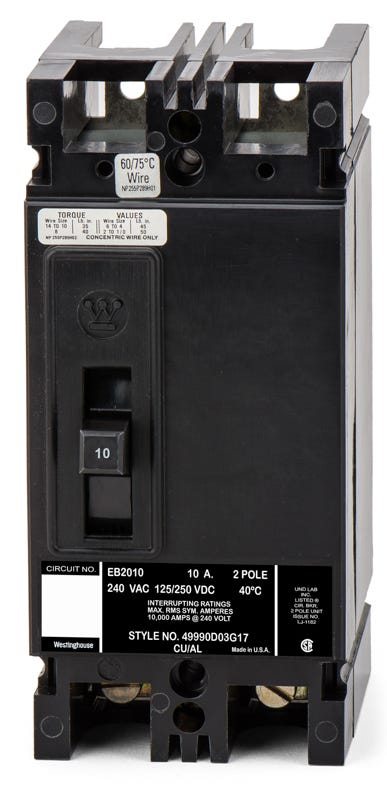

Eaton / Westinghouse EB2010 Molded Case Circuit Breaker
- 10A
- 2 Pole
- Bolt-On
Eaton / Westinghouse
EB2010
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EB2010
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EB2010 - 10A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
25A 2 Pole Molded Case Circuit Breaker
30A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
Description
Built for commercial and industrial environments, this 10-amp molded case circuit breaker provides essential thermal-magnetic protection. The bolt-on design ensures a secure connection within legacy Westinghouse and Eaton panelboards. Rated at 10kAIC at 240VAC, it maintains standard interrupting capacity for older electrical systems. It functions as an exact physical and electrical match for the discontinued E-Frame series, and is commonly cross-referenced with the EHD2010.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EB2010-R |
| Series | EB |
| Amperage | 10A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Frame Type | EB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Westinghouse Panelboards, Eaton Panelboards |
| Wire Gauge | 14-10 AWG (Al/Cu) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the EB2010 circuit breaker?
This bolt-on breaker is designed for use in legacy Westinghouse and current Eaton panelboards that accept E-Frame molded case circuit breakers.
Is the Westinghouse EB2010 interchangeable with newer Eaton models?
Yes, the EB2010 is an exact physical and electrical match for the discontinued E-Frame series and is commonly cross-referenced with the Eaton EHD2010.
Can the EB2010 be used in direct current applications?
Yes, it carries a 5kA interrupting rating at 125/250VDC, making it suitable for specific control circuits or small DC loads requiring a 2-pole disconnect.
What wire sizes are accepted by the lugs on the EB2010?
The standard load side lugs accept 14 AWG to 10 AWG aluminum or copper wire.
Does the EB2010 provide ground fault or arc fault protection?
No, this is a standard thermal-magnetic breaker that provides only overload and short-circuit protection. It does not include GFCI or AFCI circuitry.
