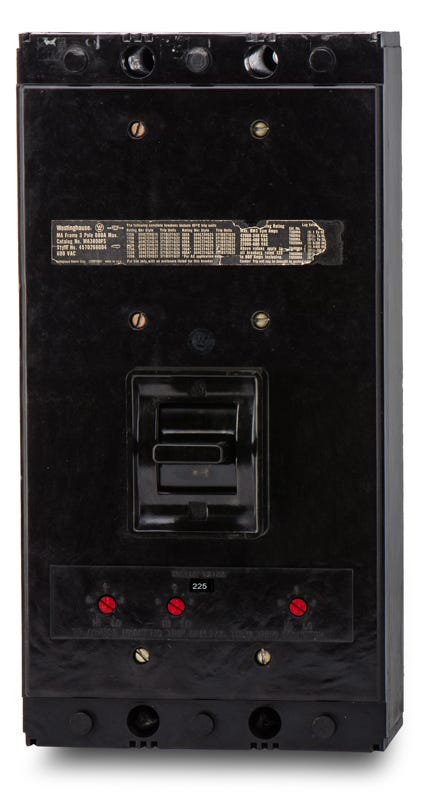

Eaton / Westinghouse MA3225S Molded Case Circuit Breaker
- 225A
- 3 Pole
- Bolt-On
Eaton / Westinghouse
MA3225S
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
MA3225S
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

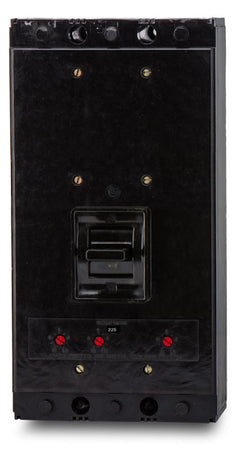

Eaton / Westinghouse MA3225S-R - 225A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
500A 3 Pole Molded Case Circuit Breaker
Description
Part of the classic M-Frame lineup, the Eaton MA3225S provides 225A of thermal-magnetic protection for 600VAC and 250VDC systems. It installs into legacy Westinghouse PRL4 panelboards, switchboards, and motor control centers, serving as an exact fit for aging commercial and industrial setups. Featuring an interchangeable trip unit with adjustable magnetic settings and a Saf-T-Vue window, it delivers 42kAIC interrupting capacity at 240V. Replaced by the JDB3225 with an adapter kit.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | MA3225S-R |
| Series | MA |
| Amperage | 225A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC, 10kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Westinghouse PRL4 Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | (1) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
5 answersWhat panelboards are compatible with the MA3225S circuit breaker?
This M-frame breaker is designed for installation in Westinghouse PRL4 panelboards, as well as compatible legacy switchboards and motor control centers.
What wire sizes are accepted by the load side lugs on this breaker?
The included load side lugs accept a single aluminum or copper conductor ranging from 3/0 AWG to 500 kcmil.
How is the trip unit configured on the MA3225S?
It features an interchangeable thermal magnetic trip unit with fixed thermal (Long-Time) and adjustable magnetic (Instantaneous) trip functions.
Are Westinghouse and Eaton MA3225S breakers interchangeable?
Yes. Eaton acquired the Westinghouse electrical distribution line. An Eaton, Cutler-Hammer, or Westinghouse MA3225S share the same physical dimensions and electrical characteristics.
Does the MA3225S include lugs on both the line and load sides?
No. This is a bolt-on breaker designed to connect directly to the busbar on the line side. It only includes lug terminals on the load side.
