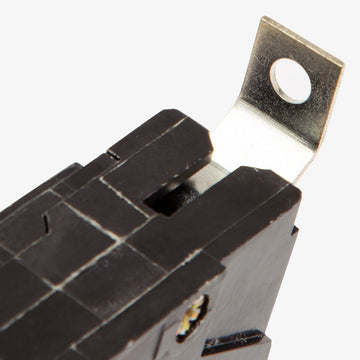

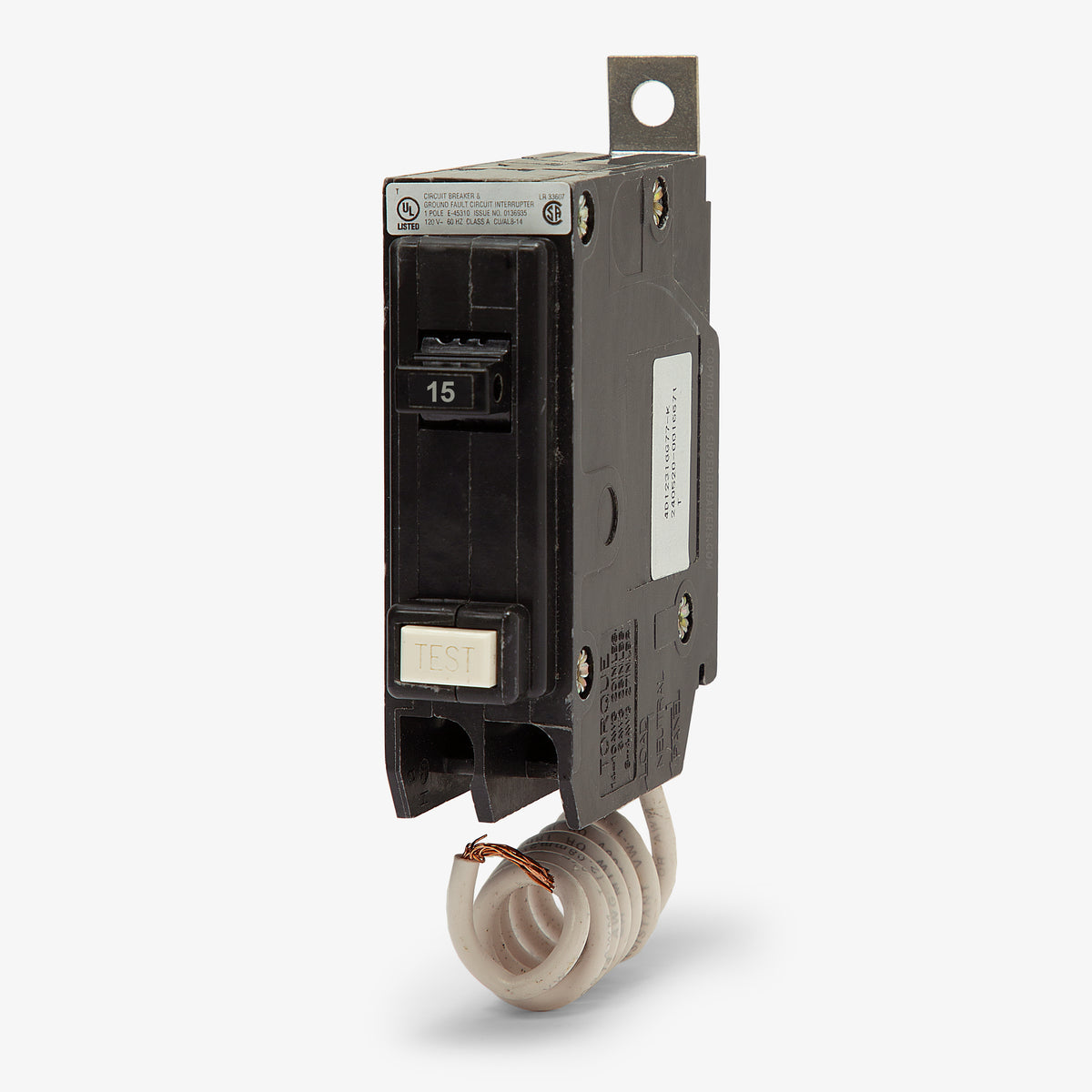

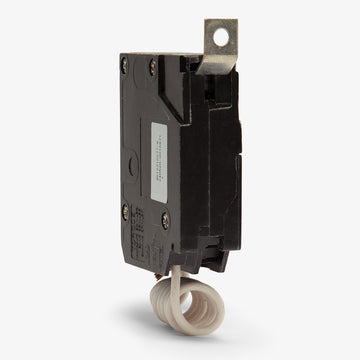

Eaton / Cutler-Hammer QBGF1015 GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBGF1015
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBGF1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBGF1015 - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer QBGF1015 - 15A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGF1015 |
| Series | QBGF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Sold out
Quantity
Eaton / Cutler-Hammer QBGF1015 - 15A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGF1015-R |
| Series | QBGF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Similar Items
30A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFT1015
15A GFCI Miniature Circuit Breaker
Description
Rated 10 kAIC at 120VAC, the Eaton QBGF1015 is a 1-pole GFCI circuit breaker built for commercial and industrial safety. It provides essential 5mA ground fault protection to prevent electrical hazards in damp or wet locations. This unit features a bolt-on mounting style compatible with Eaton Pow-R-Line and Quicklag panelboards. Note that this specific model has been replaced by the QBGFT1015. The breaker includes load side lugs and is both HACR and SWD rated for switching fluorescent loads.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBGF1015-R |
| Series | QBGF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Eaton Quicklag Panelboards |
| Wire Gauge | 14-10 AWG (Cu), 12-10 AWG (Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Handle Lock |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip |
Product FAQs
5 answersWhat type of panelboards can the QBGF1015 be installed in?
It is compatible with Eaton Pow-R-Line and Quicklag panelboards. Because it is a BAB frame breaker with a bolt-on mounting style, it must be bolted directly to the panel bus and cannot be used in standard plug-on load centers.
Has the Eaton QBGF1015 been replaced by a newer model?
Yes, the QBGF1015 has been superseded by the QBGFT1015. The newer version includes an auto-monitoring self-test feature to comply with updated UL 943 standards, while maintaining the exact same physical dimensions and electrical ratings.
What is the ground fault trip sensitivity of this breaker?
The QBGF1015 features a 5mA trip sensitivity. This classifies it as a Class A Ground Fault Circuit Interrupter (GFCI), which provides personnel protection against electrical shock in damp or wet locations.
How is the neutral connection handled on the QBGF1015?

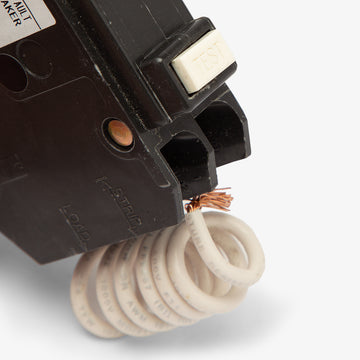

This breaker is equipped with a pigtail neutral wire. For the ground fault detection circuitry to function properly, this pigtail must be connected directly to the neutral bus bar in the panelboard.
What does the LIG trip function code mean for this breaker?
The LIG designation indicates that the breaker provides Long-Time protection against overloads, Instantaneous protection against short circuits, and Ground-Fault protection. These functions are controlled by a fixed thermal-magnetic trip unit.
